Sony TRINITRON KV-DA29M81 - 1 Disassembly; Rear Cover Removal; Speaker Removal; Chassis Assy Removal

– 6 –
KV-DA29M81
RM-W105
1-6. J BOARD REMOVAL
1-5. TERMINAL BRACKET REMOVAL
SECTION 1

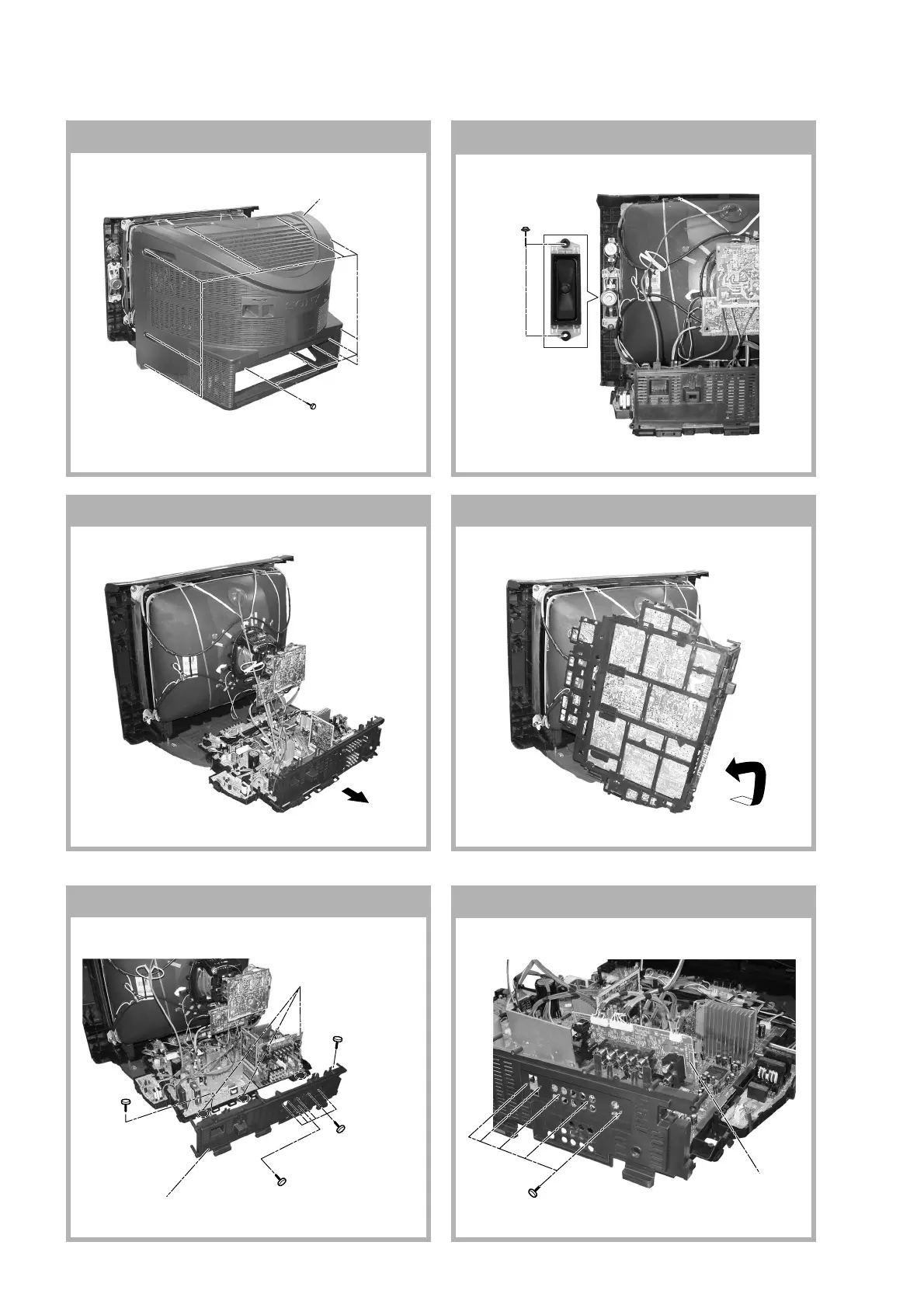

DISASSEMBLY
1-1. REAR COVER REMOVAL
1-2. SPEAKER REMOVAL
1-3. CHASSIS ASSY REMOVAL 1-4. SERVICE POSITION
2 Rear cover
1 Twelve screws
(BVTP 4 × 16)
1 Two screws
(Washer Head)
(+P4 × 16)
5 One Screw
(+BVTP 3 × 12)
6 Three Hooks
3 One screw
(+BVTP 4 × 16)
4 Five screws
(+BVTP 3 × 12)
2 Terminal Bracket
1 One screw
(+BVTP 3 × 12)
2 J Board
1 Five Screws
(+BVTP 3 × 12)
