Sony TRINITRON KV-DA29M81 - BC Board Removal; BH1 Board Removal; F1 Board Removal

– 7 –
KV-DA29M81
RM-W105
Note: Access to the BC board is possible after
removal of the shiledcase. Remove the
shiledcase by removing 2 screws +BVTP 3x16

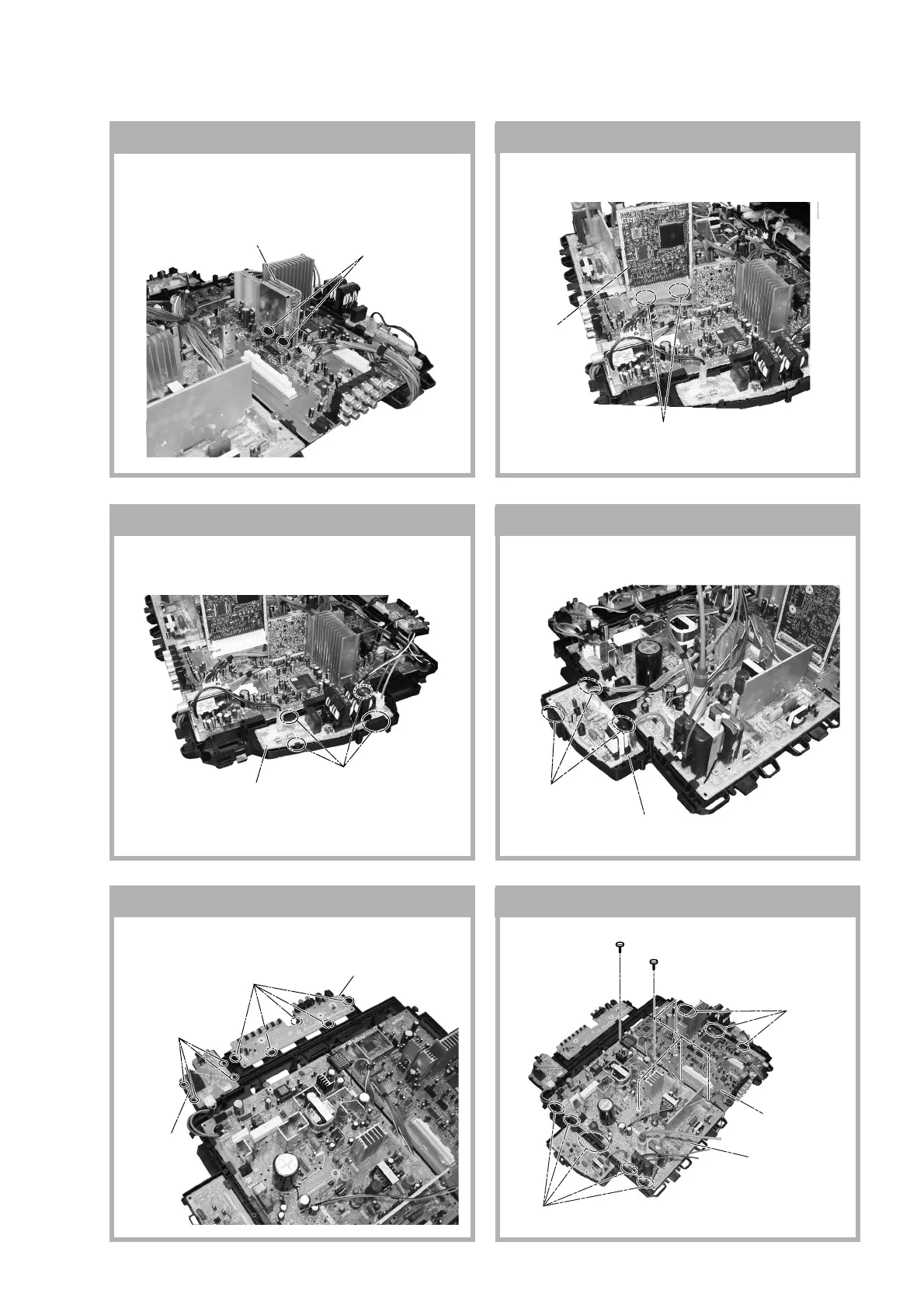

1-7. BC BOARD REMOVAL
1-8. BH1 BOARD REMOVAL
1-9. F1 BOARD REMOVAL 1-10. DL BOARD REMOVAL
2 Two Hooks
1
BC Board
2 Two Hooks
BH1 Board
1 F1 Board
2 Four Hooks
1 Three Hooks
2
DL Board
1-11. H1 AND H2 BOARDS REMOVAL 1-12. A AND D BOARD REMOVAL
3 Five Hooks
4
H1 Board
1 H2 Board
2 Four
Hooks
2 Five screws
(BVTAP 3 × 12)
1 One screw
(washer head)
(+P 3 × 12)
6 Five Hooks
4 A Board
5 D Board
3 Three
Hooks
