12
KV-21FK120
KV-21FK120

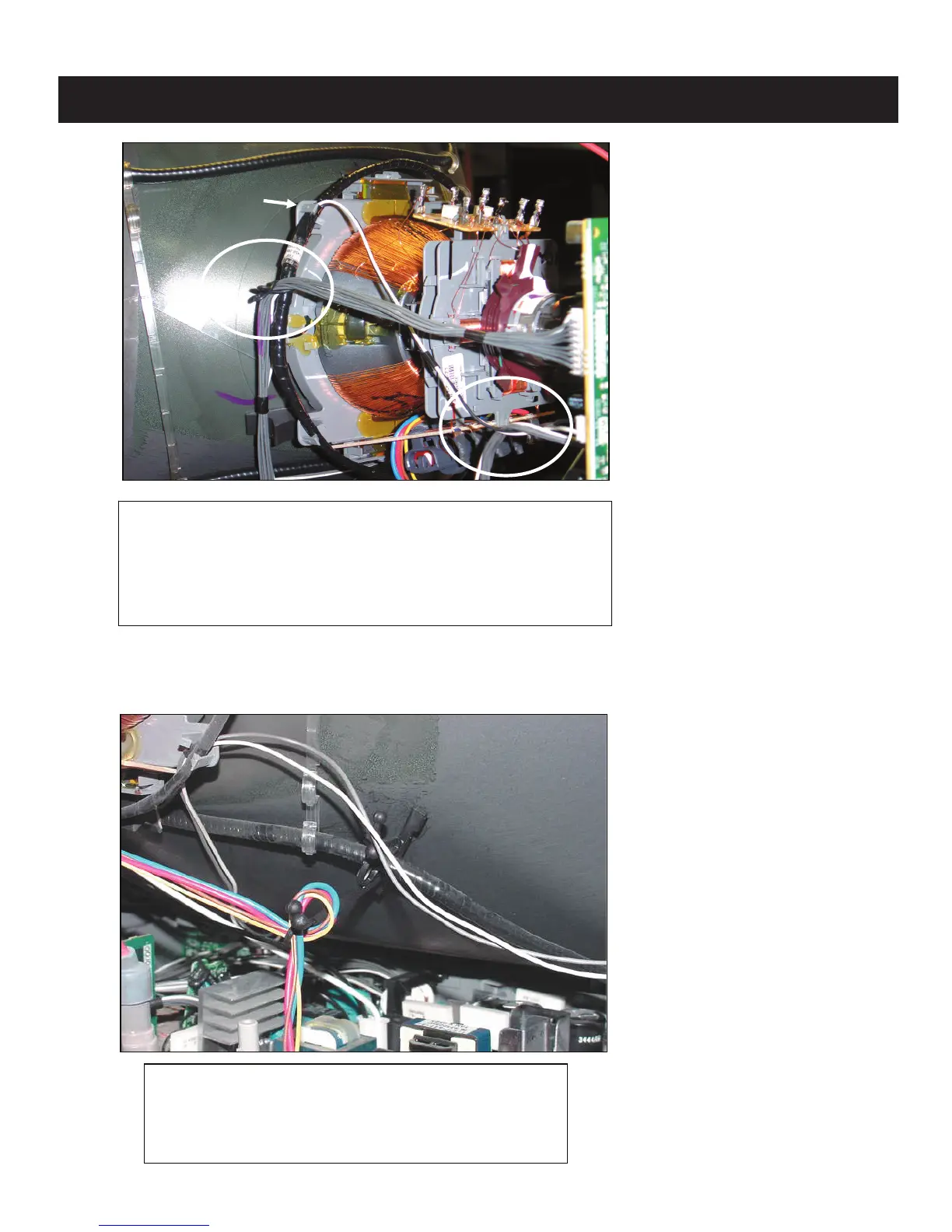

WIRE DRESSINGS
- Fix RGB harness (A/CN301~CV/CN1752) to rotation
coil using a 9mm purse lock (3-703-982-02).
- Dress heaters harness (A/CN586~CV/CN1751) over
rotation coil's lead wire as shown in picture.
- Install rotation coil lead wire connection under DY clip
Under clip
Dress DY's lead wire using a DGC purse lock (4-
081-411-02).
Make a loop as shown in picture.
NOTE: Use CRT carbon paint as a reference
To Next Page
