KV-21FK120
KV-21FK120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.

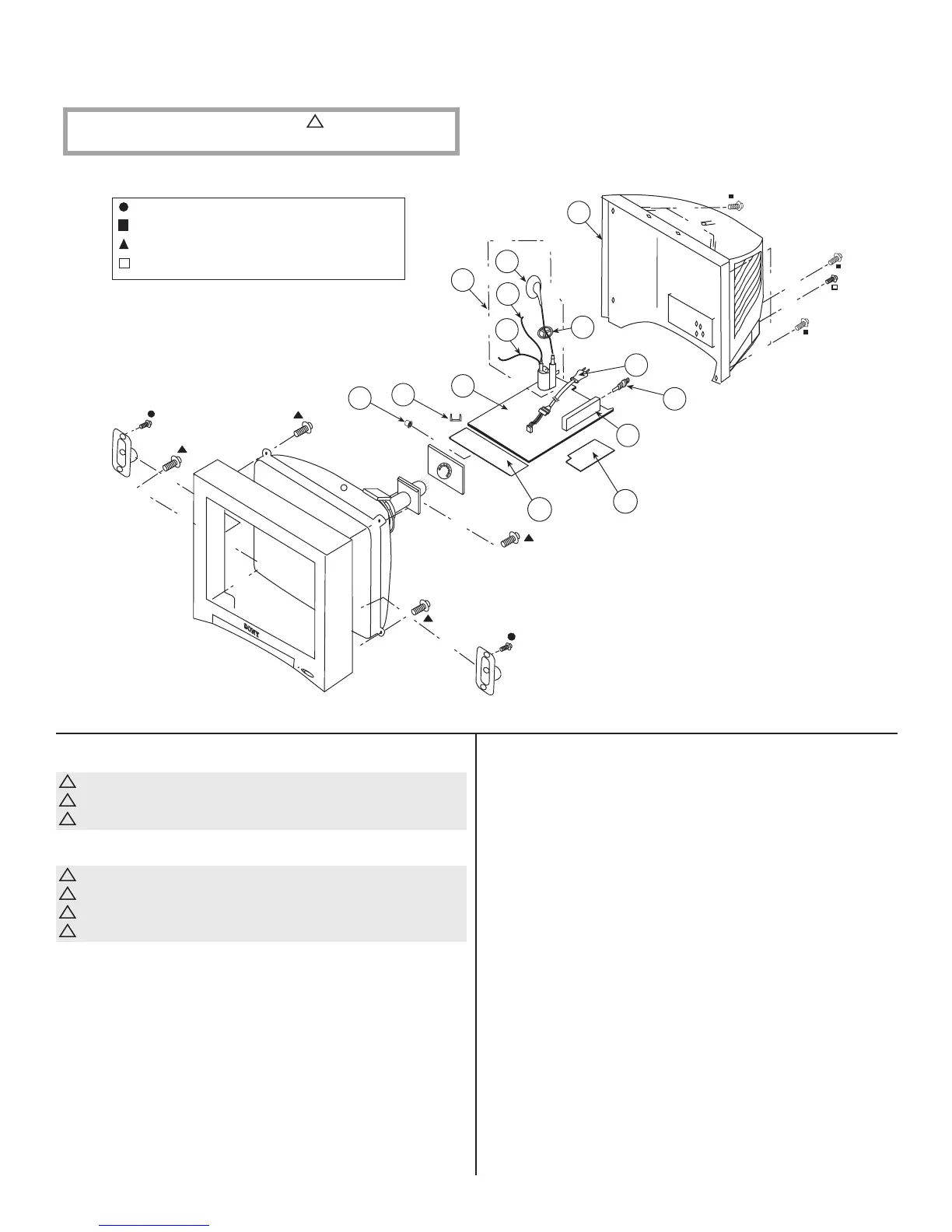

6-2. CHASSIS
40 A-1109-540-A HK BOARD, MOUNTED
41 A-1107-985-A KR BOARD, MOUNTED
!
42 8-598-593-70 TUNER, FSS BTF-WA421
!
43 1-766-374-11 PLUG, F-PIN
!
44 1-824-069-11 CORD, AC POWER(WITH CONNECTOR)
45 4-071-497-02 HOLDER, FBT
!
46 1-453-316-21 FBT ASSY NX-1748//X [47-49]
!
47 1-251-642-52 CAP ASSY, HIGH-VOLTAGE
!
48 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
49 1-900-803-22 WIRE ASSY, G2 LEAD
50 A-1109-537-A A BOARD, COMPLETE
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 47-49)
*
51 4-076-951-01 HINGE, PWB
52 2-593-968-01 BUTTON, K-PON
53 4-102-302-01 COVER, REAR (20)
4-384-096-01 SCREW (4X16), TAPPING, +P
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
4-365-808-01 SCREW (5), TAPPING
7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)
43
50
51
52
44
53
47
48
49
46
42
41
40
45
