15
KV-21FK120
KV-21FK120

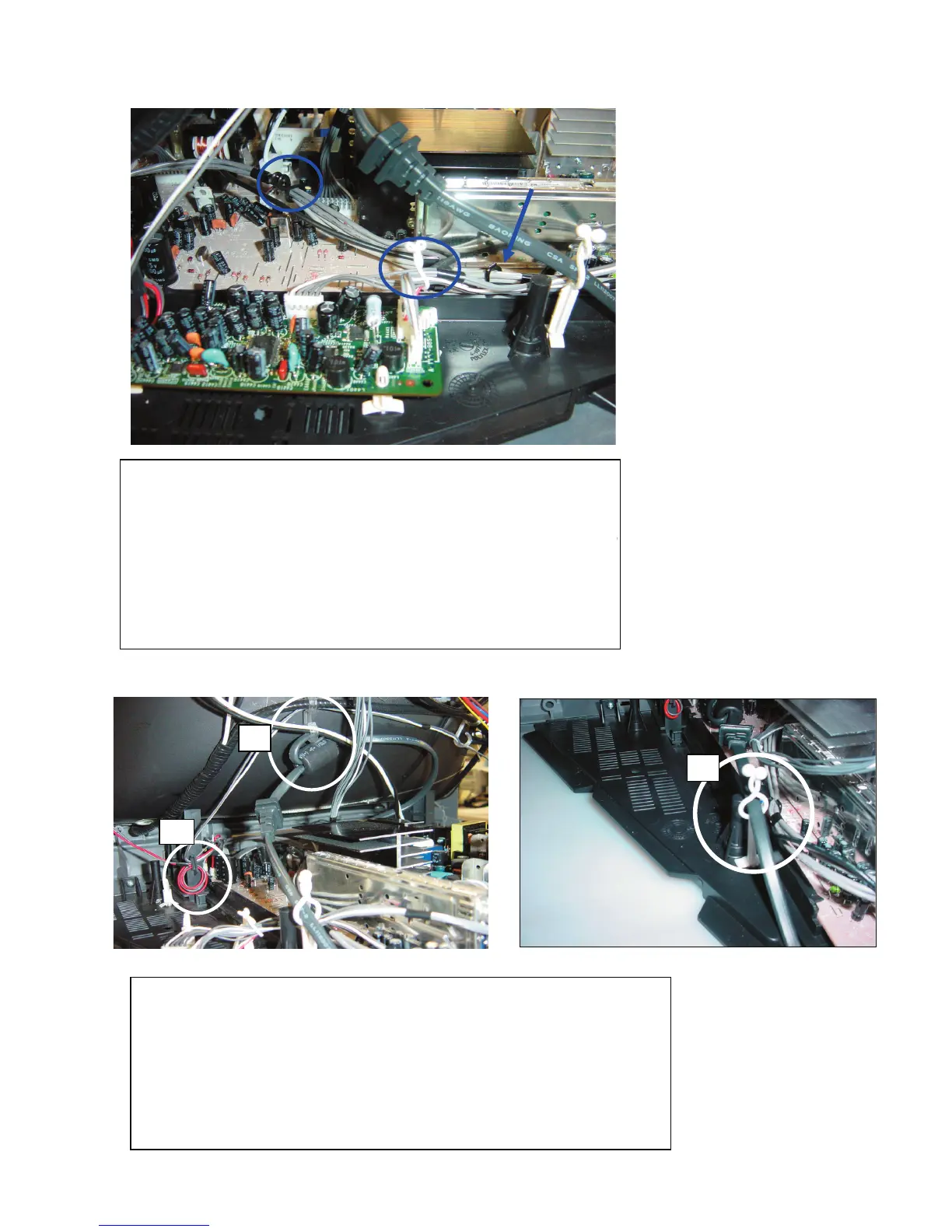

- Dress Video harness (A/CN200~A/CN201) and lightning
wire through CLP001.
- Dress Audio harness (HK/CN2402~KR/CN4403) & video
harness (A/CN200~A/CN201) using a 9mm purse lock (3-703
982-02), No lightening wire.
- Dress 5P (A/CN402~KR/CN4401), 4P
(A/CN403~KR/CN4402) & 6P (HK/CN2402~KR/CN4403)
Audio harnesses using a 5mm purse lock (3-703-981-02).
IMPORTANT: Following operations must be done with A bord on its final
position
1.- Dress Left and right speaker wire into CRT support, red wire with two
loop as shown in picture.
2.- Dress left speaker wire through DGC band(4-080-810-22) upper hook.
Note: This operation must be performed after (1)
Dress AC-Cord and DGC lead wire through DGC band(4-080-810-22)
lower hook.
3.- Dress AC-Cord into bottom board standing purse lock(4-382-296-11).
2
3
To Next Page
