Notes on Connecting
i.LINK Devices
❑

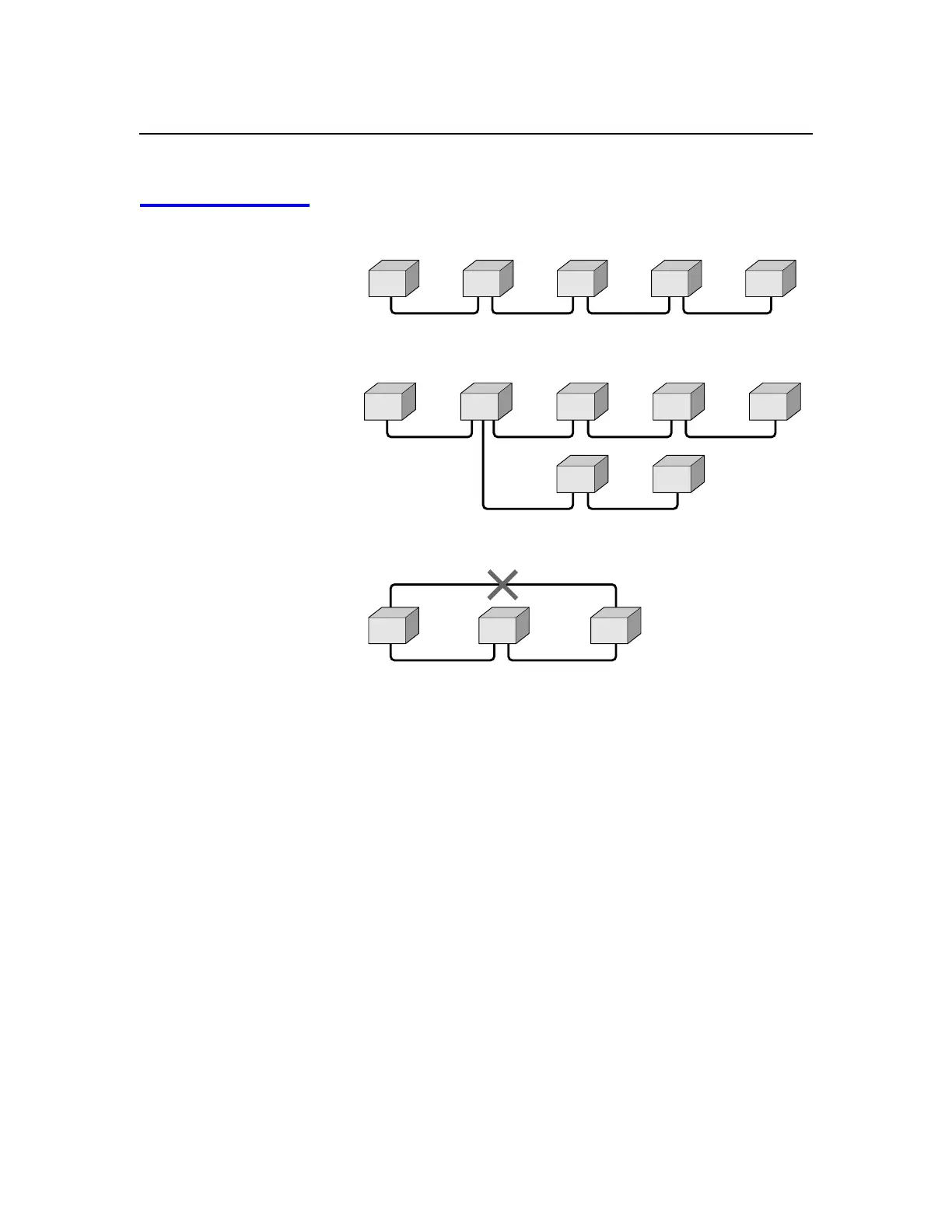

To connect two or more i.LINK-capable devices, use i.LINK
cables to connect them as shown below.
❑
You can connect up to 63 i.LINK devices. However, the
maximum number of cables in any serial route is 16.
❑
Do not connect i.LINK devices in a way that creates a loop.
❑
Connecting non-compatible devices, such as PCs or PC
peripherals, may result in malfunctions.
A B C D E
i.LINK i.LINK i.LINK i.LINK
A B C D
F G
E
i.LINK i.LINK i.LINK i.LINK
i.LINK i.LINK
A B C
i.LINK i.LINK
i.LINK
