Sony VPL-ES4 - Detection Switch Board; DC Fan

1-7
VPL-ES4/EX4

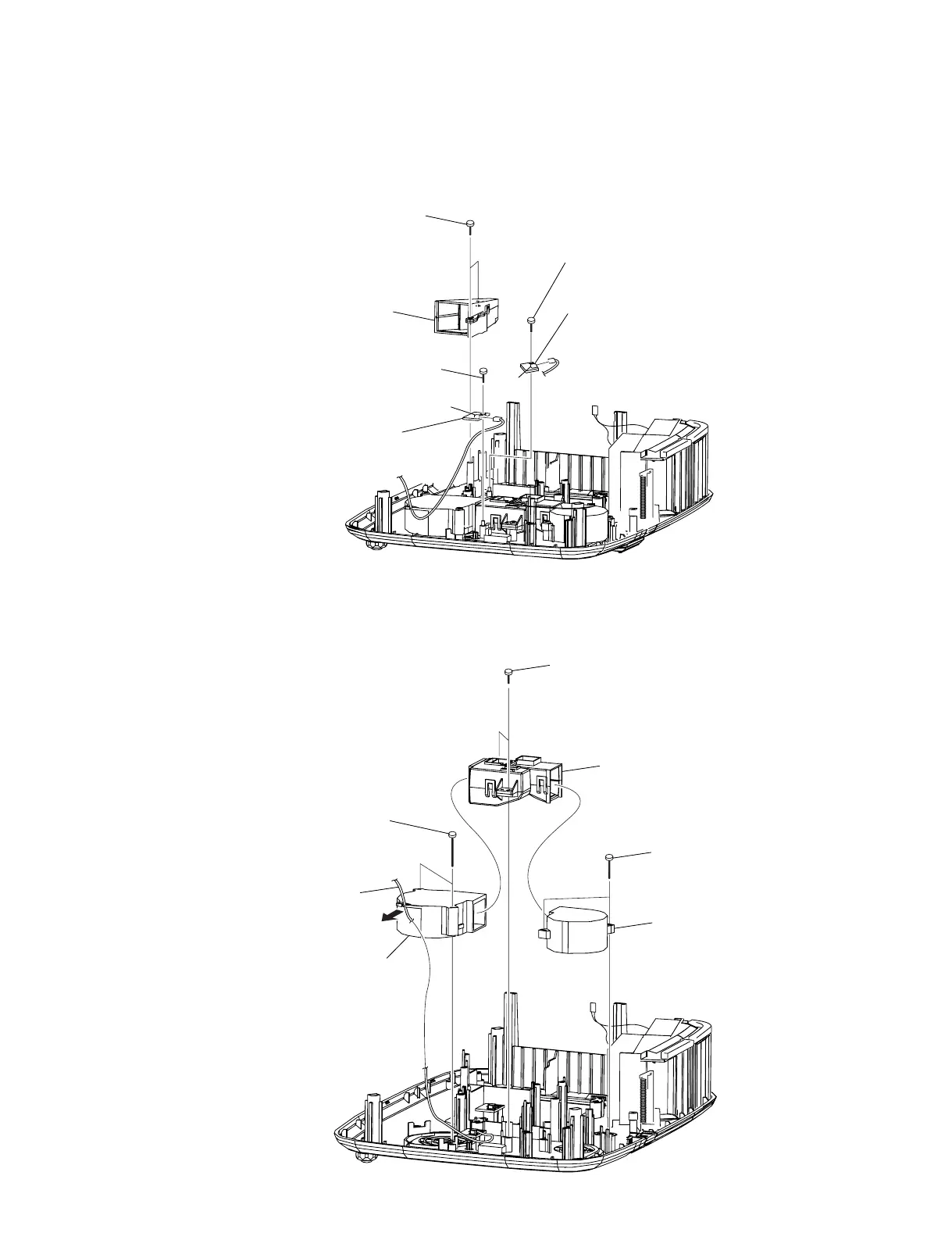

1-3-9. Detection Switch Board
Remove the optics section before starting the removal work.
1-3-10. DC Fan
Remove the optics section before starting the removal work.
5 Tapping screw
(PAN 3 x 7)
1 Tapping screw
(PAN 3 x 7)
6 Detection switch board
2 Detection switch board
3 Two tapping screws
(PAN 3 x 7)
4 Duct lamp
CN1
CN1
1 Two tapping screws
(PAN 3 x 7)
3 Two tapping screws
(PAN 3 x 10)
2 Duct LCD assembly
4 DC fan
7 DC fan
5 harness
6
Two tapping screws
(M 3 x 25)
