Sony VPL-ES4 - Tunnel Outlet Section; Main Board Bracket Section

1-4
VPL-ES4/EX4

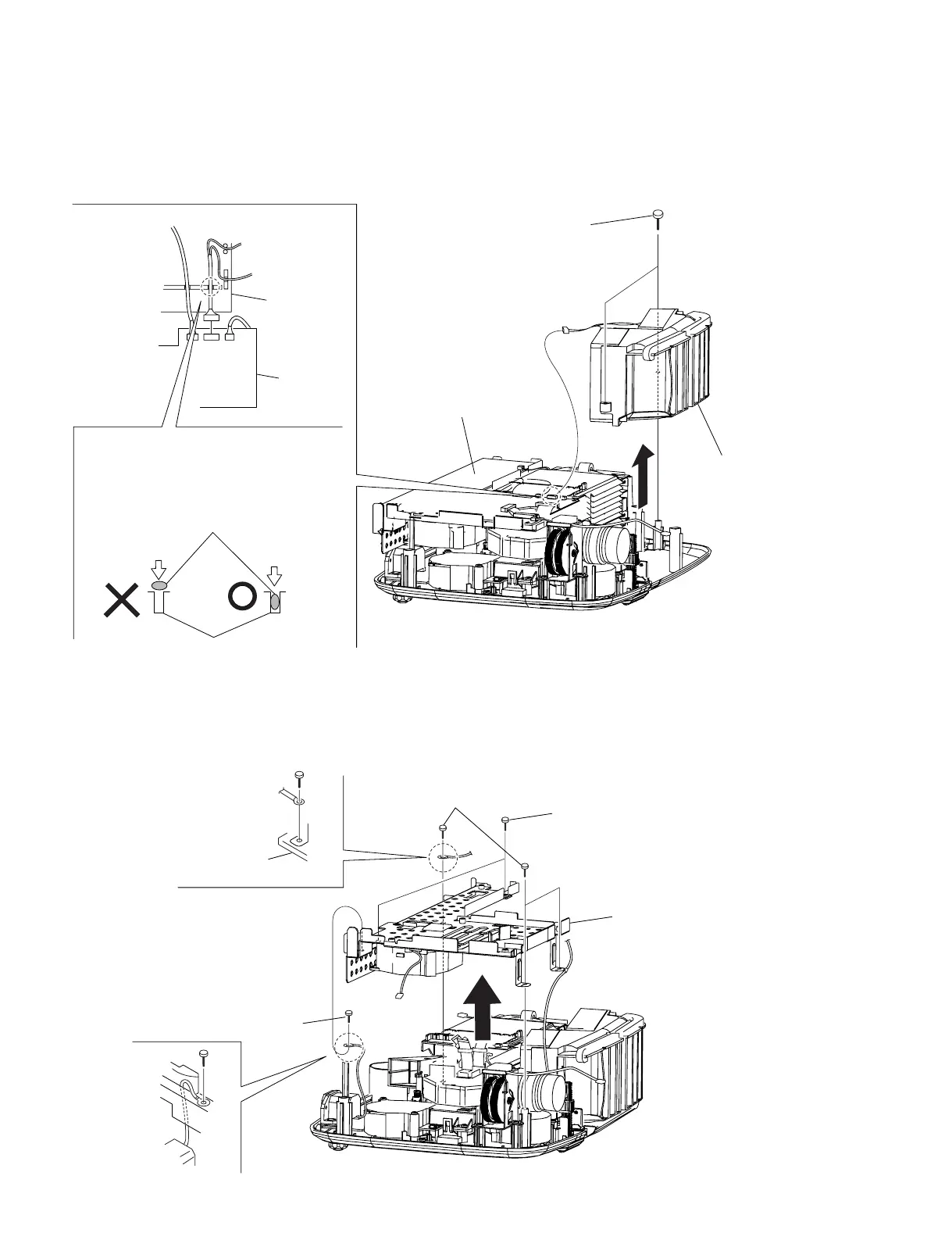

1-3-4. Tunnel Outlet Section
Remove the front case assembly and sub rear case assembly before starting the removal work.
1-3-5. Main Board Bracket Section
Remove the main board before starting the removal work.
1 Two tapping screws
(PAN 3 x 7)
2 Tunnel outlet section
J21
Main board
Main board
Lamp box
assembly
J21
Harnesses clamp section
Harnesses
Because the harnesses has the shape of flat
cross-section, do not insert the harnesses with
excessive force. Find out the direction in
which the harnesses can be inserted easily,
and then insert the harnesses.
2 Three tapping screws
(PAN 3 x 7)
1 Two screws
(M 3 x 6)
4 Main board bracket section
3 S crew
(M 4 x 6)
Power board
