Connecting the Projector
Projecting the Picture
Connecting the
Projector
When you connect the projector,
make sure to:
• Turn off all equipment before making any
connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; loose
connections may increase noise and
reduce performance of picture signals.
When pulling out a cable, be sure to pull it
out by the plug, not the cable itself.
This section describes how to connect the
projector to a computer.
For more information, refer to the
computer’s instruction manual.

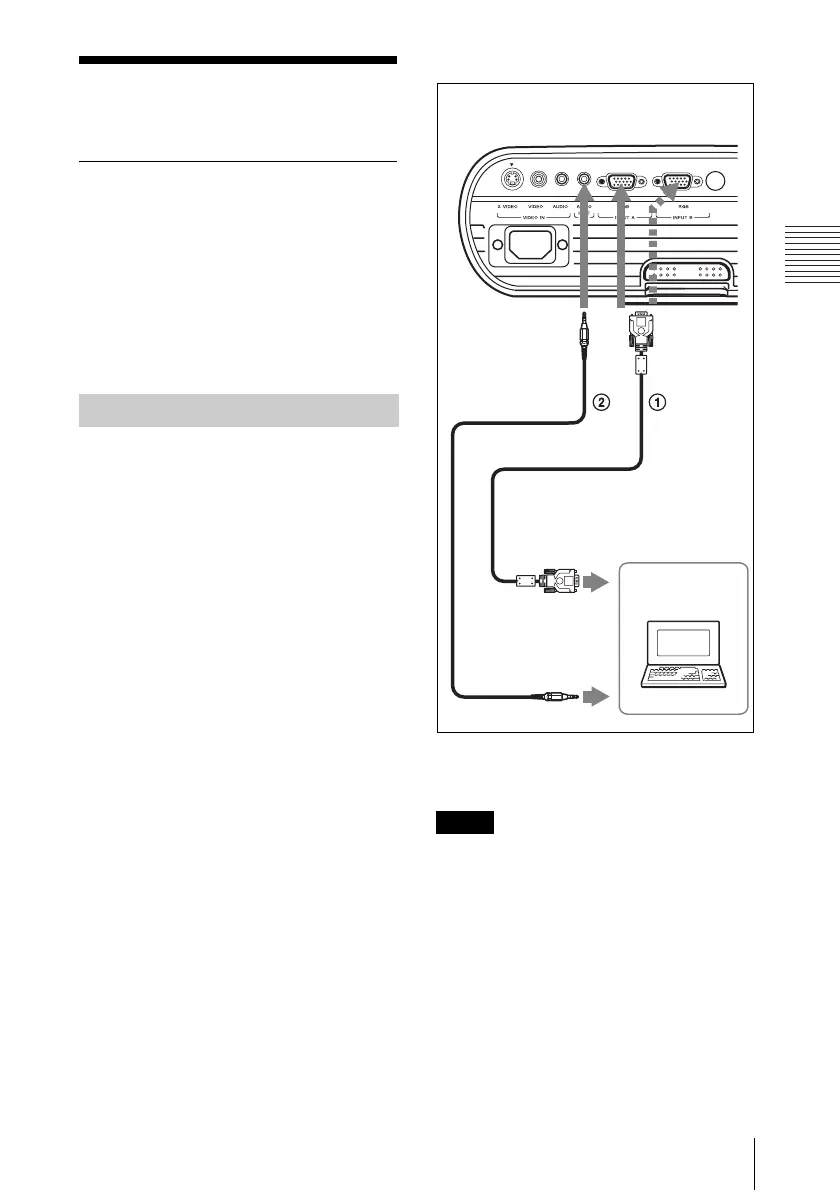

To connect a computer
1 HD D-sub 15-pin cable (supplied)
2 Stereo audio connecting cable (not supplied)
(Use a no-resistance cable.)
• For stereo audio connection, connect the
stereo audio connecting cable to following
connectors:
VPL-EX5/ES5: INPUT A/VIDEO IN
AUDIO connector
VPL-EW5: INPUT A AUDIO connector
VPL-EX50: INPUT A/B AUDIO connector
• The projector accepts VGA, SVGA, XGA,
SXGA, SXGA+, WXGA signals. However,
we recommend that you set the output mode
of your computer to SVGA (VPL-ES5),
XGA (VPL-EX5/EX50) or WXGA (VPL-
EW5) mode for the external monitor.
Connecting a Computer
Notes
Rear side
to monitor output
Computer
to audio output
VPL-EX50
