Sony XR-CA310 - Head (Play Back) (HP901)

XR-CA310/L210
12

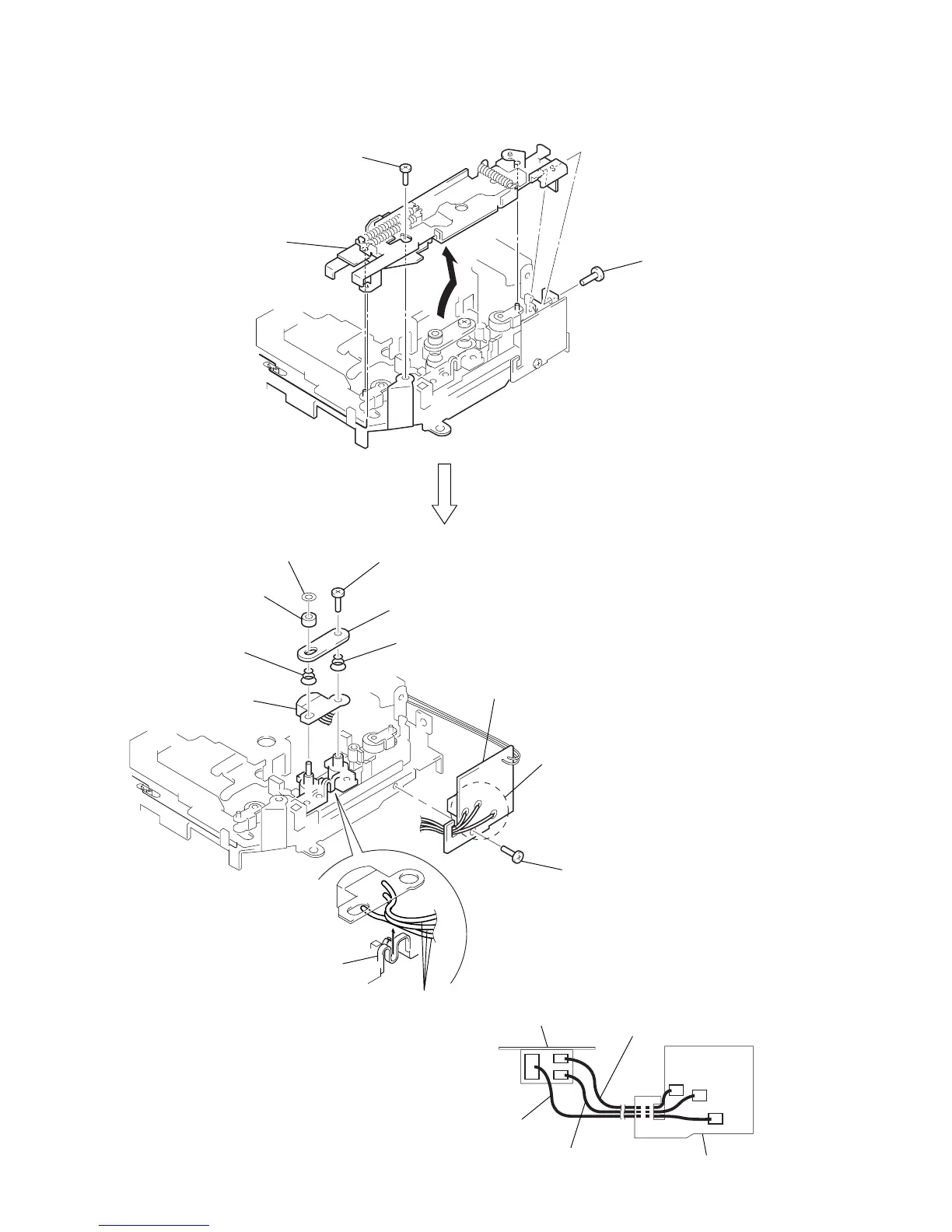

2-8. HEAD (PLAY BACK) (HP901)
2 screw
(PTT2
× 4)
1 screw
(P2 × 3)
3 FF/REV lever section
9 screw
(P2
× 4)
5 screw
(PTP2
× 3)
qd Remove three head lead
wires from the
adjuster arm blue.
head (HP901)
head lead wire
adjuster arm blue
• HEAD LEAD WIRE COLOR INDICATION
ON HEAD (HP901) AND SLIDE SW BOARD.
0 SPG support plate
7 PSW (reel) B
8 HP roller (A)
qa adjuster arm SPG (A)
qs adjuster arm SPG (B)
qf head (play back) (HP901)
6 slide SW board
4 Remove the three solders
of head lead wires.
yellow lead wire
black lead wire
red lead wire
slide SW board
