28
XR-CA310/L210

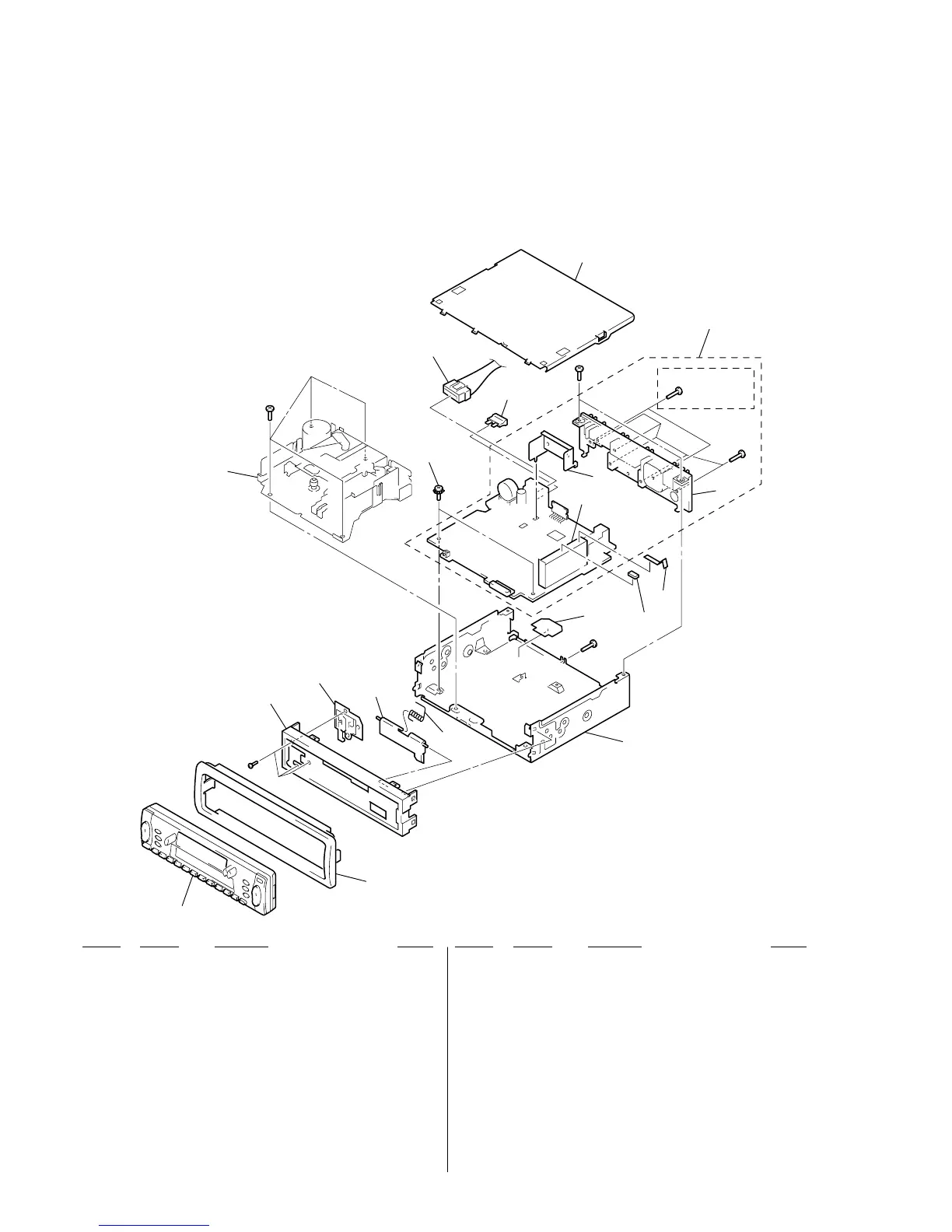

6-1. GENERAL SECTION
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and Accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-224-905-01 PANEL, SUB
2 X-3370-437-1 LOCK ASSY
3 3-041-581-01 DOOR, CASSETTE (L210)
3 3-041-581-11 DOOR, CASSETTE (CA310)
4 3-044-125-01 SPRING, TORSION
5 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
6 1-757-662-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(CA310: AMBER/L210)
6 1-757-662-21 CORD (WITH CONNECTOR) (ISO) (POWER)
(CA310: GREEN)
* 7 X-3378-167-1 COVER ASSY, TOP
* 8 A-3274-179-A MAIN BOARD, COMPLETE (L210: AMBER)
* 8 A-3326-857-A MAIN BOARD, COMPLETE (CA310: AMBER)
* 8 A-3326-990-A MAIN BOARD, COMPLETE (CA310: GREEN)
* 8 A-3340-001-A MAIN BOARD, COMPLETE (L210: GREEN)
9 3-224-921-11 HEAT SINK (CA310)
9 3-224-921-21 HEAT SINK (L210)
* 10 3-041-578-01 BRACKET (IC)
11 3-937-650-01 PLATE (C), GROUND
12 3-046-339-01 CUSHION (U)
* 13 3-232-738-01 SHEET, INSULATING
* 14 3-047-715-01 CHASSIS
15 3-041-599-01 COLLAR
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
TU100 1-693-523-11 FM/AM TUNER UNIT (FAE370-E01)
• Abbreviation
AMBER : Amber illumination type
GREEN : Green illumination type
(CA310)
F901
#2
#2
#2
#3
#3
TU100
#1
Front panel section
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MG-36SZ11-32
Ver 1.2 2001.05
