XR-CA310/L210
9
Note: Follow the disassembly procedure in the numerical order given.

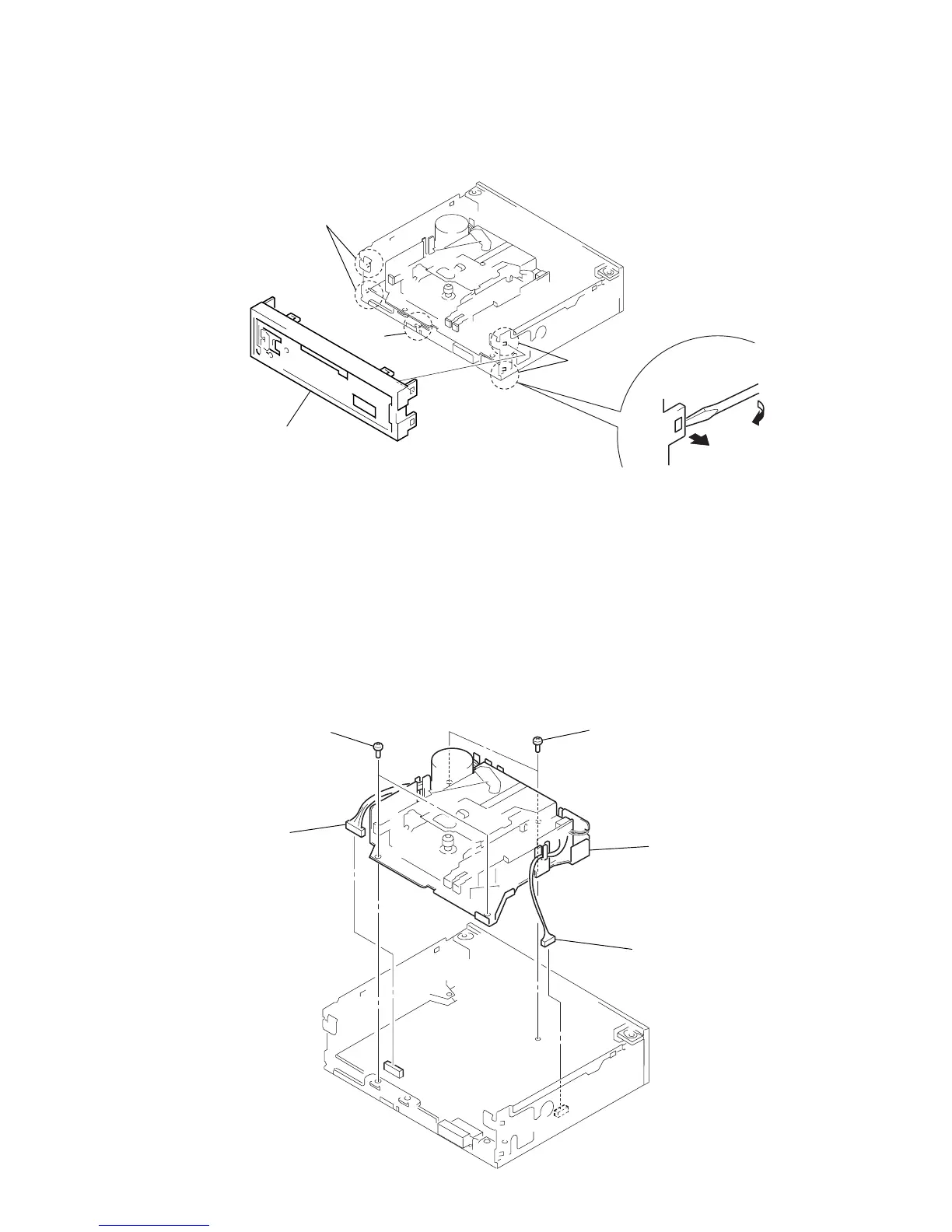

2-2. SUB PANEL
1
two claws
1
claw
1
two claws
2
sub panel
2-3. MECHANISM DECK (MG-36SZ11-32)
2
two screws
(BTP2.6
×
6)
1
connector
(CN350)
1
connector
(CN300)
3
mechanism deck
(MG-36SZ11-32)
2
two screws
(BTP2.6
×
6)
