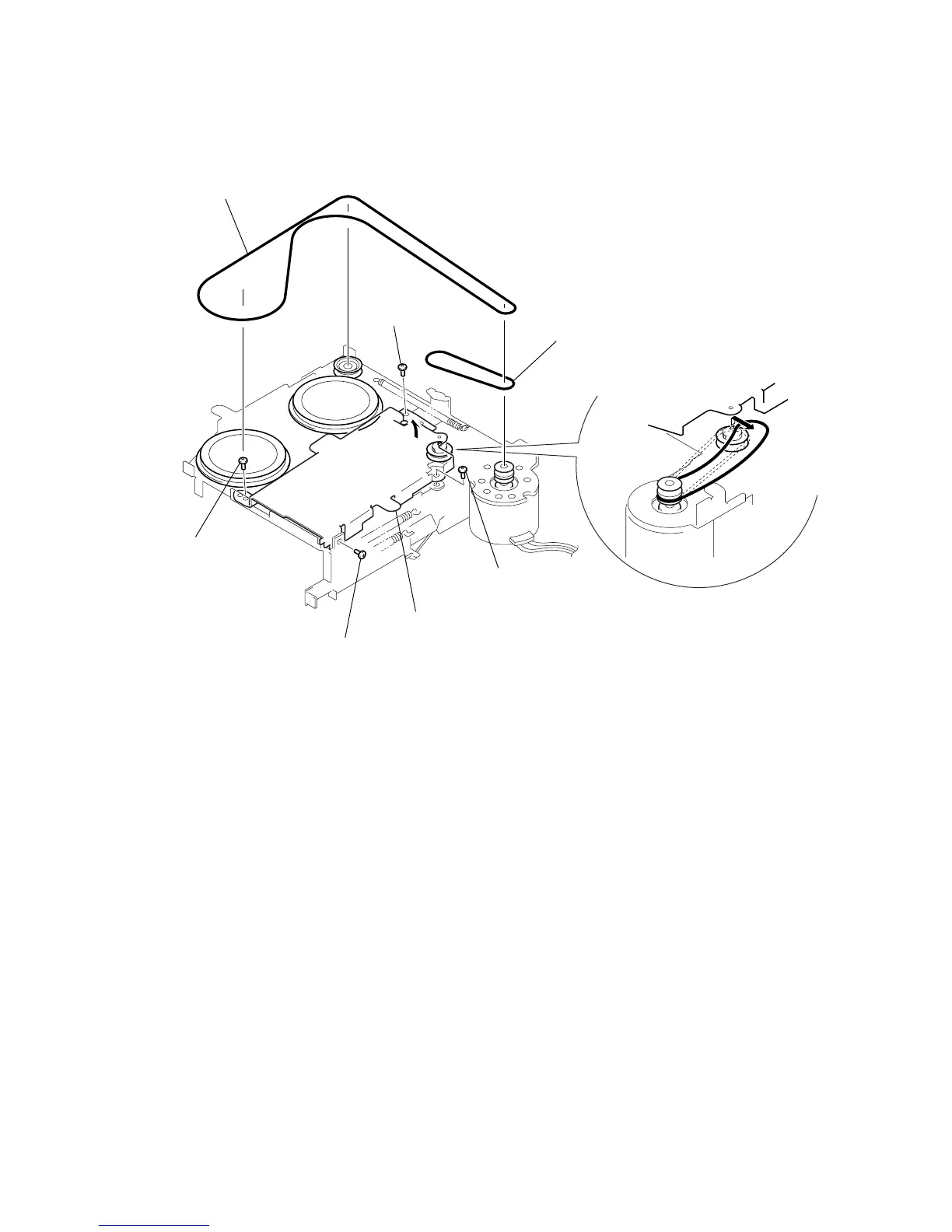

2-9. MAIN BELT, SUB BELT (C)
1 main belt
4 sub belt (c)
2 screw
(PTP2
× 3)
A
2
screw
(PTP2 × 3)
2 screw
(PTP2 × 3)
2 screw
(PTP2 × 3)
3 Lift up the bottom BKT (TS)
in the direction of arrow A
(as far as the belt can be removed).
