XR-CA310/L210

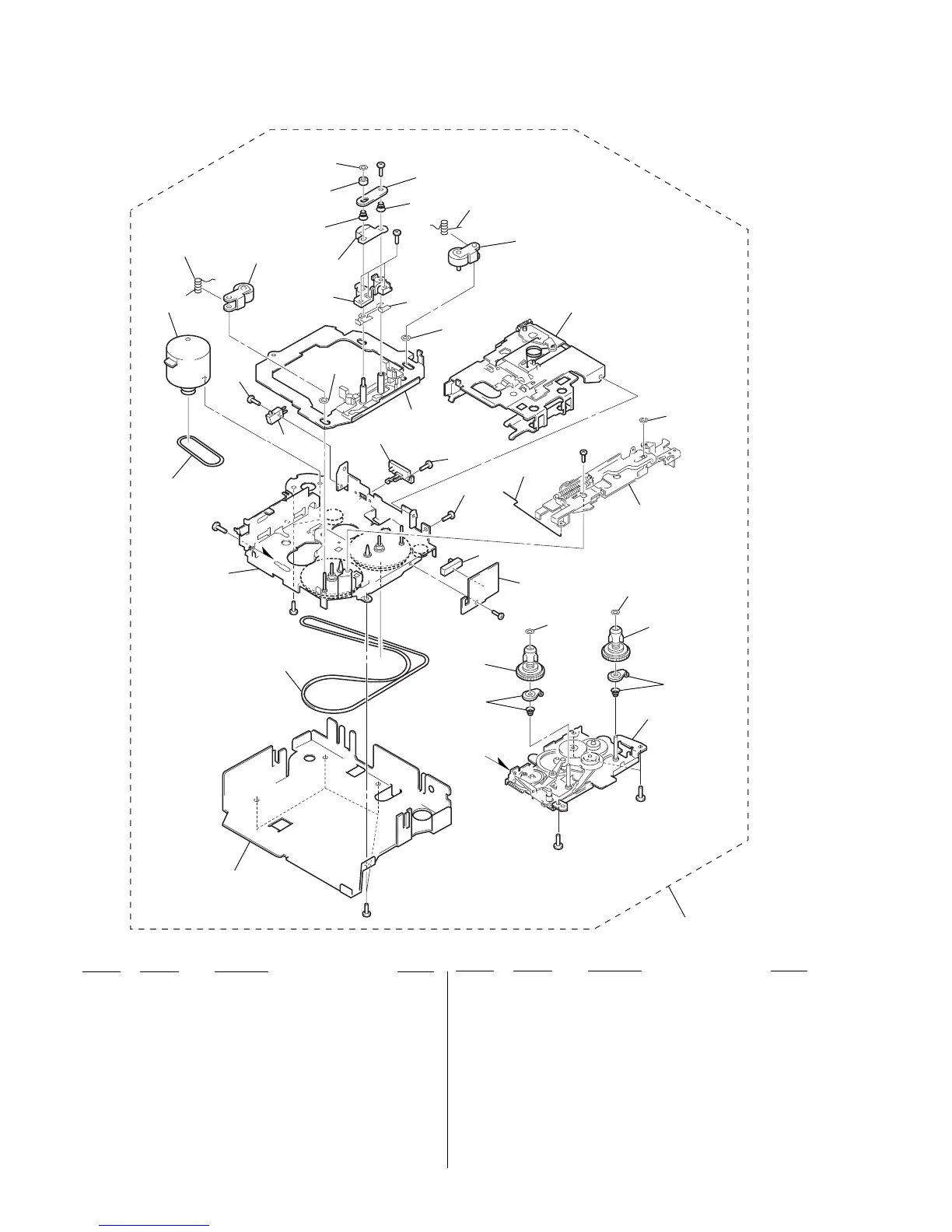

6-3. MECHANISM DECK SECTION
(MG-36SZ11-32)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 101 3-224-920-01 BRACKET (MD)
102 3-045-943-01 MAIN BELT
103 3-045-945-01 SUB BELT (C)
104 3-045-953-01 +MACHINE SCREW M1.7X6
105 3-045-940-01 PINCH ARM SPG (R)
106 3-045-950-01 E-RING (DIA. 2)
107 3-045-890-01 PINCH ARM (R)
108 3-045-933-01 ADJUSTER ARM SPG (B)
109 3-045-949-01 PSW (REEL) B
110 3-045-932-01 ADJUSTER ARM SPG (A)
111 3-045-939-01 PINCH ARM SPG (F)
112 3-045-891-01 PINCH ARM (F)
113 3-045-906-01 ADJUSTER SHIM (X)
114 3-045-952-01 +MACHINE SCREW M1.7X4
115 3-713-786-51 SCREW +P 2X3
117 3-045-893-01 REEL SPINDLE
119 A-3220-826-A MECHANISM DECK ASSY (MG-36SZ11-32)
HP901 1-500-661-11 HEAD (PLAYBACK)
M901 1-763-507-11 MOTOR (CAPSTAN/REEL)
S901 1-771-928-11 SWITCH (SLIDE) (DIRECTION)
S902 1-771-926-11 SWITCH (LEAF) (FF/REW)
S903 1-771-927-11 SWITCH (LEAF) (TAPE DETECT)
101
102
103
104
105
106
107
108
110
#6
#5
#7
M901
S902
#9
#8
HP901
109
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
S901
#10
#7
#7
#7
S903
111
112
113
114
115
109
109
119
117
117
106
106
To Next Page
