DLM-E 3kW & 4kW Series Power Supplies Advanced Operation

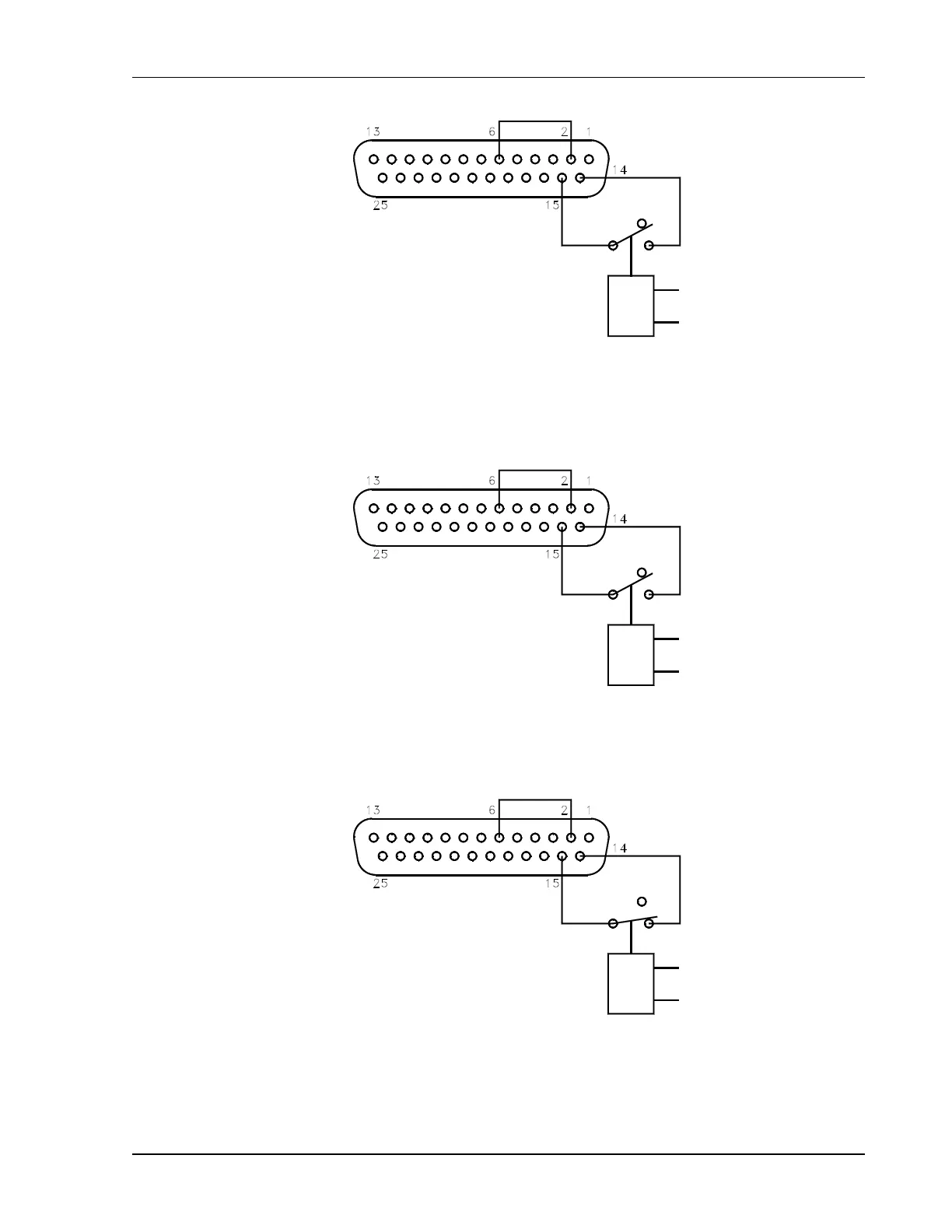

Figure 4–13.

Using Shutdown with Contact Closure of a Normally OPEN Relay (S1-6 Up)

Figure 4–14.

Using Shutdown with Contact Closure of a Normally OPEN Relay (S1-6 Down)

Figure 4–15.

Using Shutdown with Contact Closure of a Normally CLOSED Relay (S1-6 Up)

M362000-01 Rev E

4-19
