Soucy S-TECH 7016 - Page 42

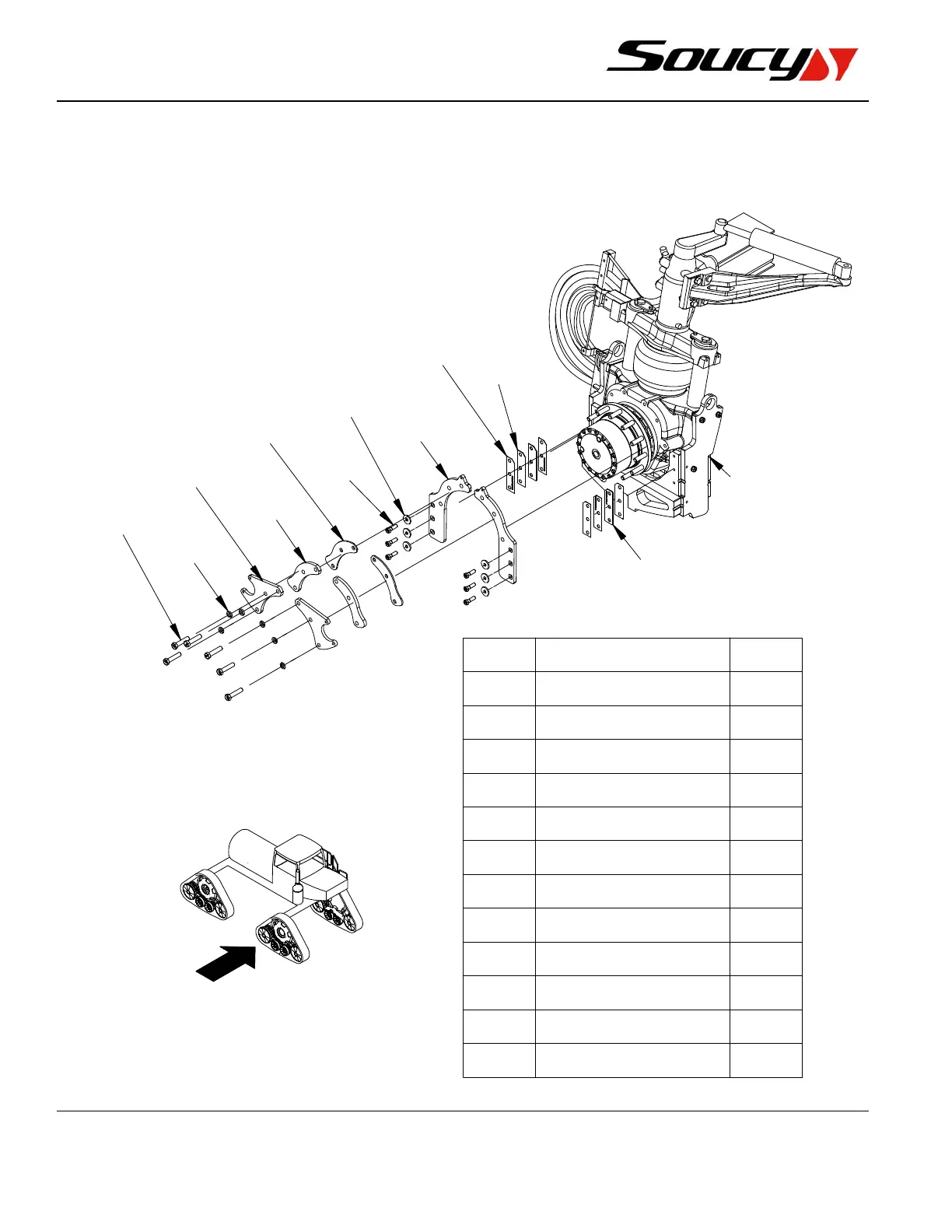

5.Installreinforcements(1),newcaliperbrackets(2)andshims(3and4)onknucklewithbolts(5)andwashers(6).
6.Fillthegapbetweenrightbracket(7)andreinforcements(1)withshims(8,9and10).
7.Installbolts(11)andwashers(12).
5
2
3
7
1
4
6
9
8
10
12
11
ITEM PART # QTY
1 8031027_0740_1 2
2 8031027_0270_1 2
3 8031027_0280_1 2
4 8031027_1660_1 2
5 S1111_16055_0F7 6
6 8031027_0790_1 6
7 8031027_0810_1 1
8 8031027_0340_1 4
9 8031027_0330_1 2
10 8031027_0320_1 2
11 S1111_20090_0F7 6
12 S4515_M200H_0EC 6
