19SC-CF-SBD Owner’s Manual
Main Spa Side Control and Temperature Probes
Installation

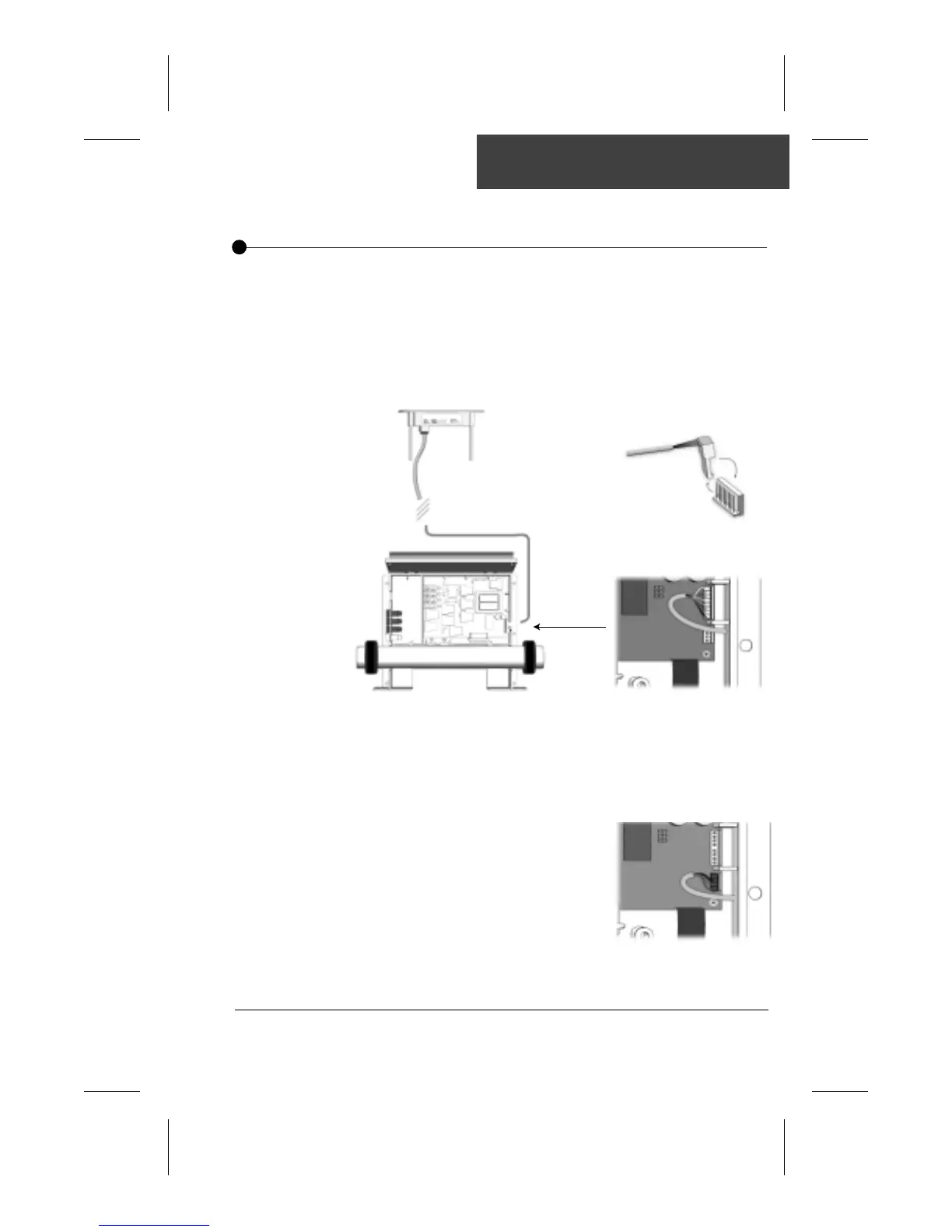

Connecting to the
Power Box
Warning
Keypad
Cable
Keypad
Power Box
Clearance between Low and High Voltage conductors must be at
least 1/4".
The main spa side keypad must be connected to the standard
side panel port of the control box.
A cable is provided to connect the keypad to the power box.
Attach the connector to the power box as shown.
Connecting the
Temperature
Probe
The water temperature
probe must be similarly
connected to the power
box, with cable following the
same route as the main
keypad.
Proper Way to Connect Keypad to
Standard Side Panel Port
Cable facing the left
side of the box
Header
Pins slide
into the cable head
