13SC-CF-SBD Owner’s Manual
Installation
Main Spa Side Control (K-18)
Installation
The first step in the installation procedure of the K-18 main spa side
control is to cut a hole directly on the edge of the spa.
The hole must be a 1" by 3
5/8 " rectangle to allow the keypad box
to slide into position.
Mounting System
The keypad should be installed directly on the spa (or very close)
for it to be easily reached by the user.

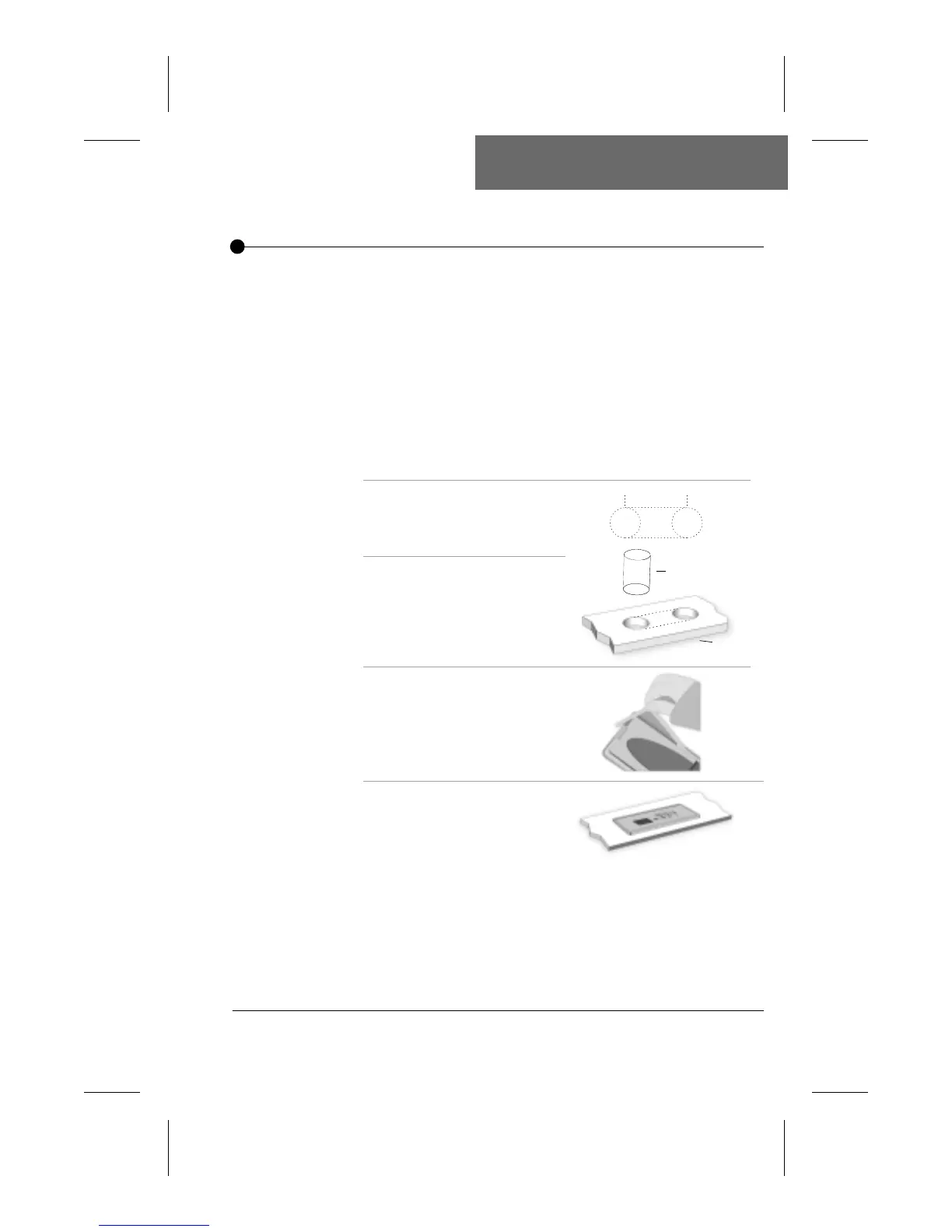

Steps to follow:
1- Select the appropriate
location for the
control unit.
2- Drill two 1” holes as
shown in figure 2. Cut
the material between
the two holes.
3- Peel off the double-
faced tape protective
layer.
4- Insert the keypad and
secure it in place by
pressing firmly on
the keypad.
2 5/8"
66
mm
1" dia
25.4
mm
1" dia
25.4
mm
Bath Edge
1" dia. drill
Note: If the keypad is physically damaged, the spa must not be used and the
keypad should be replaced immediately.
