Spa Builders SC-CF-SBD - Wiring Diagram

43SC-CF-SBD Owner’s Manual

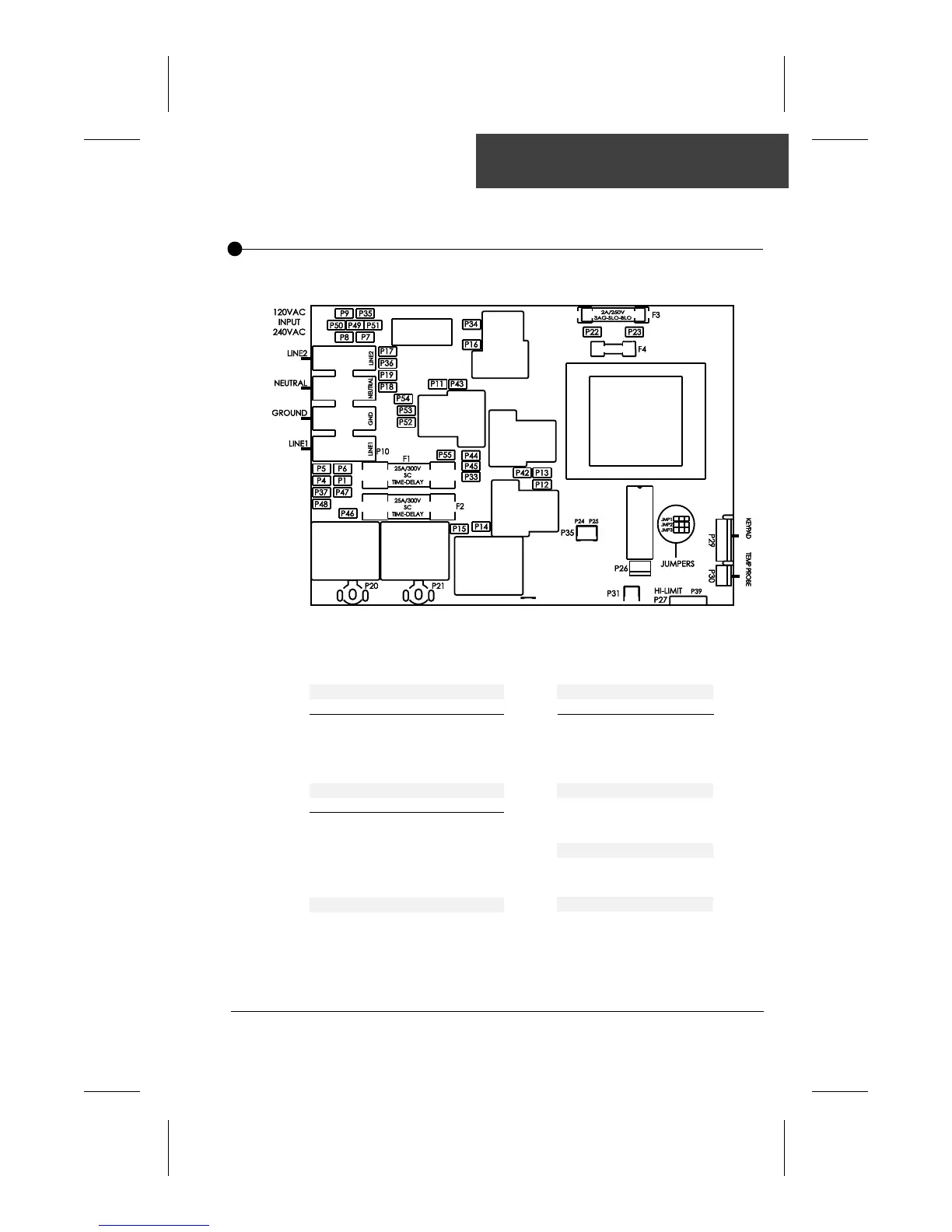

Wiring Diagram
Pump 1
Voltage 120v 240v
Green / Ground P4 P4
Black / Low Speed P14 P14
Red / High Speed P12 P12
White / Com P7 P18
Pump 2/Blower
Voltage 120v 240v
Green / Ground P6 P6
Black / Line P11 P11
Red / Line P43 P43
White / Com P9 P17
Jumper Settings
Refer to page 10
Light Connector
White / 0 VAC P23
Black / 12 VAC P22
Heater
Black 1 P20
Black 2 P21
Pressure Switch
Black P25
Black P24
Ozonator
Voltage 120v
Green / Ground P5
Black / Line P16
Red / Line P16
White / Com P8
