CHAPTER 2: HANDLEBAR EXTENSION / RISER INSTALLATION
2.1 INSTALLING THE EXTENSION RISERS

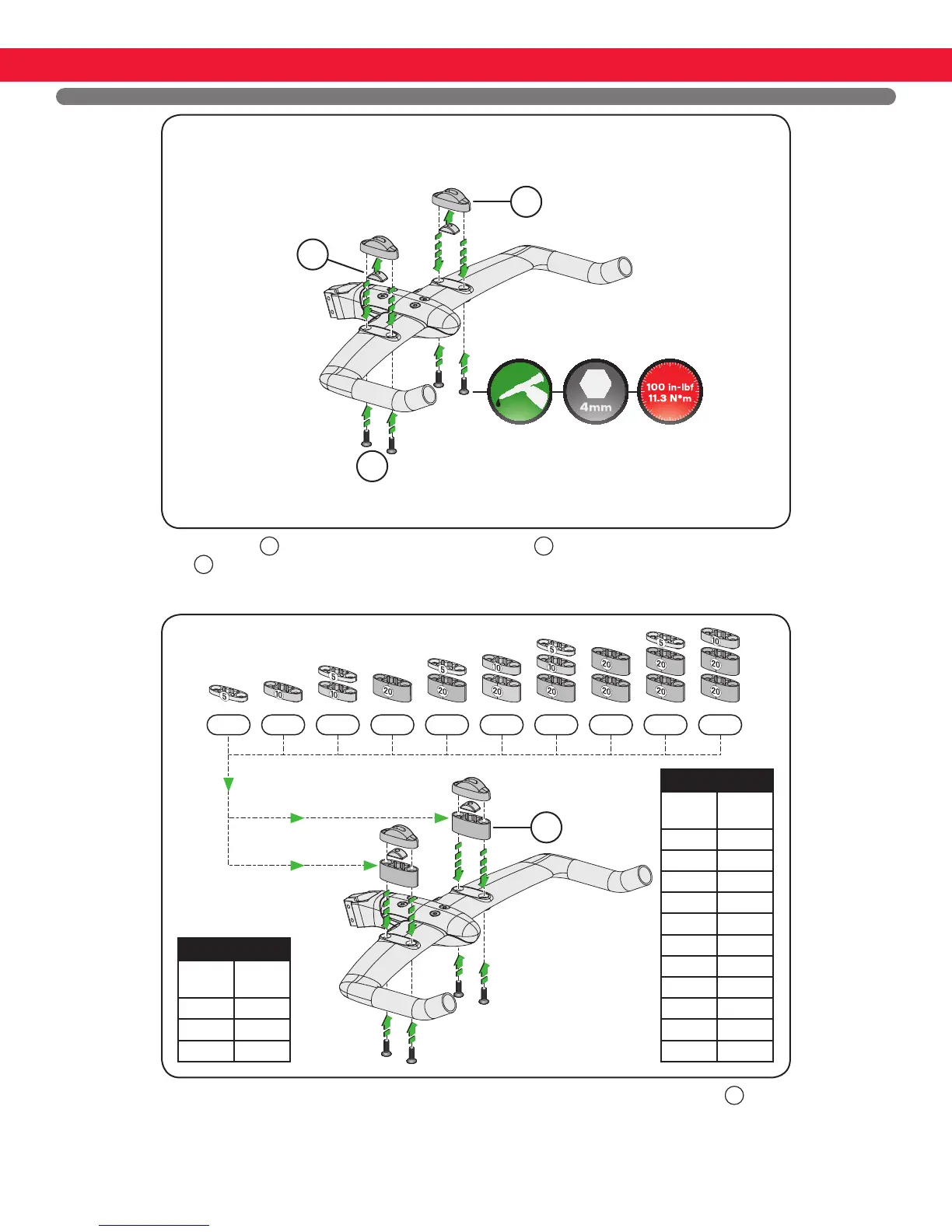

1. Place an extension riser cap nut
A
into the underside of each extension riser cap
B
.
2. Install 4 x riser bolts
C
(M6x20mm length (carbon bar) or M6x30mm (alloy bar), 4mm countersunk Allen hex head).
3. Torque the bolts to 100 in-lbf (11.3 N*m).
5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm
4. Additional extension riser stack height can be achieved (5 to 50mm) by stacking different combinations of riser parts
D
, in increments of 5mm.
Refer to the inset chart for the corresponding bolt length.
* The alloy aero bars are equipped with a total of 10mm (2x5mm) of extension risers per side. Additional parts are available to provide up to 50mm of
extension riser height, in a separate Service Parts Kit. This kit also includes the necessary bolts to achieve the additional 15-50mm of riser height.
CARBON BAR
Spacer
Height
Bolt
length
0 20
5 25
10 30
15 35
20 40
25 45
30 50
35 55
40 60
45 65
50 70
ALLOY BAR *
Spacer
Height
Bolt
length
0 30
5 35
10 40
