Page 10 of 25
2.2 INSTALLING THE CLAMPS, EXTENSIONS AND ARM PADS

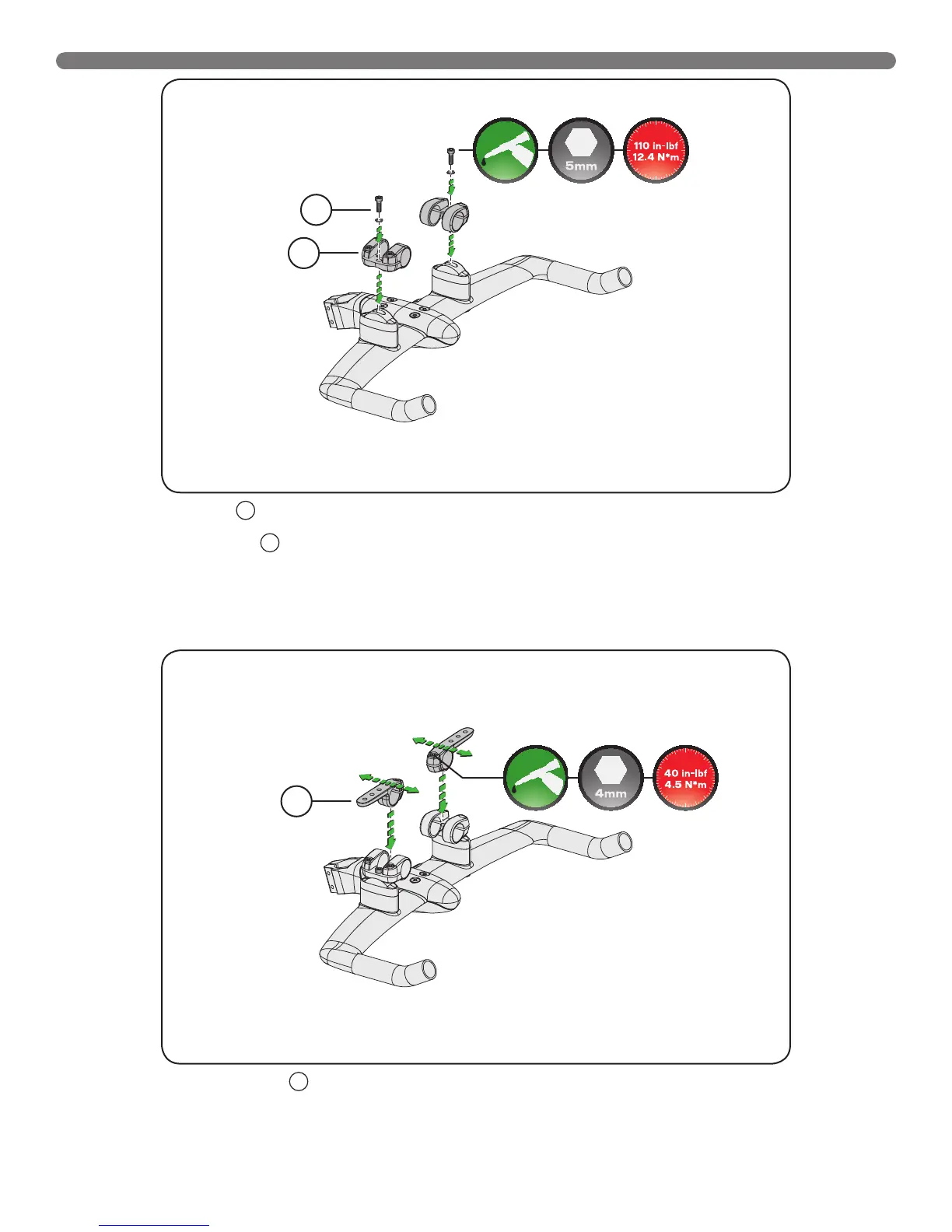

5. Place the extension clamps
E
on top of the extension caps, with the concave surface in contact with the convex surface of the extension caps and
the clamps facing each other.
6. Install 2 x extension clamp bolts
F
(M6 x20mm length, 5mm standard Allen hex head) and washers through the extension clamps and into the
extension cap nuts. Applying the torque specification is not necessary until the bike has been fit to the rider.
7. Place the two arm pad holder clamps
G
in position. The pad holder clamps can go either in front of, between or behind the extension clamps.
E
F
G
