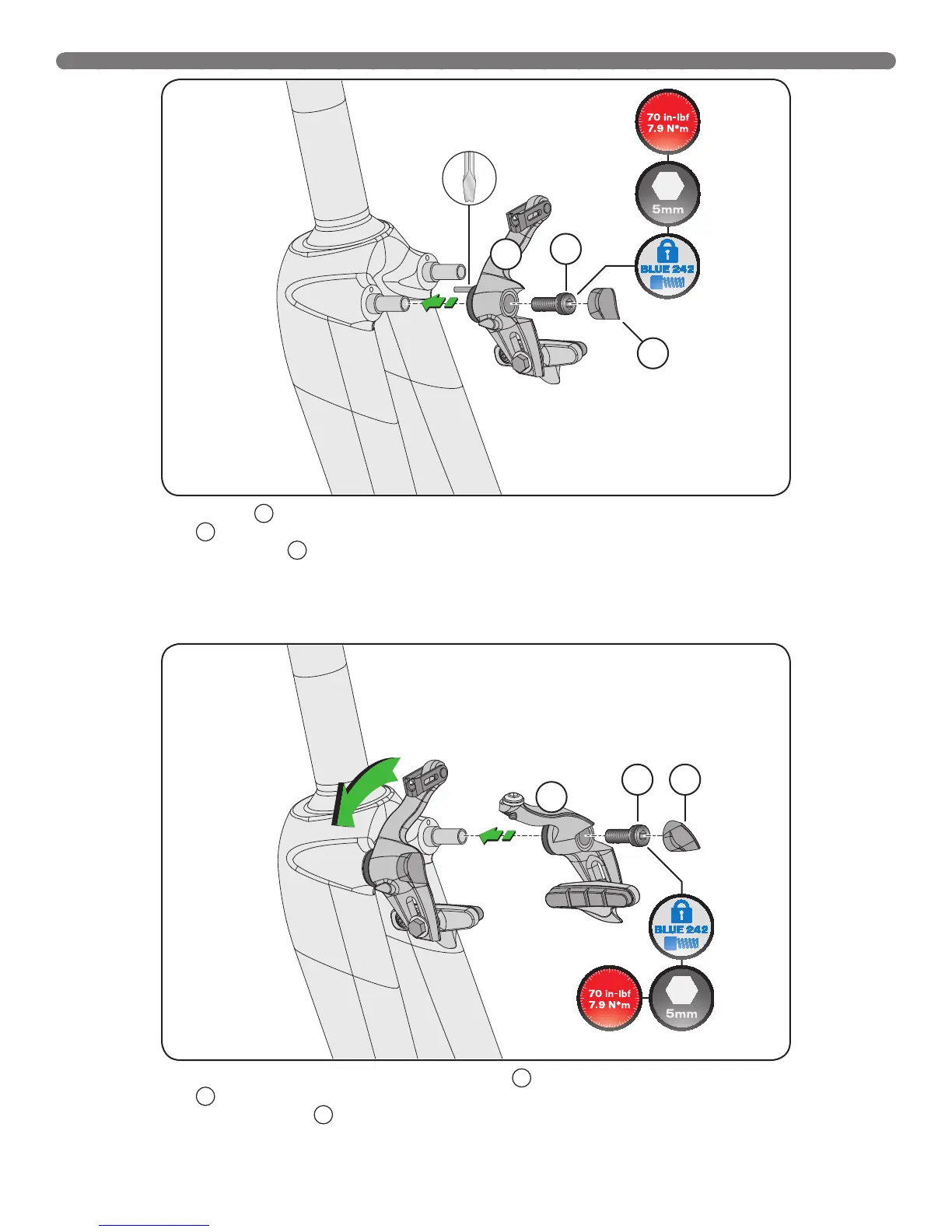

4.2 INSTALLING THE FRONT BRAKE ASSEMBLY
4. Install the drive-side brake arm
A
. A flathead screwdriver with a notch in the flat edge can help rotate the spring into the fork’s spring hole.
5. Install the brake bolt
B
and tighten to 70 in-lbf (7.9 N*m).
6. Install the drive-side brake bolt cover
C
.
7. Rotate the drive-side brake out of the way and install the non-drive-side brake
D
.
8. Install the brake bolt
E
and tighten to 70 in-lbf (7.9 N*m).
9. Install the non-drive-side brake bolt cover
F
.
A
B
D
E F
C
