1.2 INSTALLING THE CARBON AERO HANDLEBAR ON THE AERO STEM
SPECIALIZED AERO STEM:

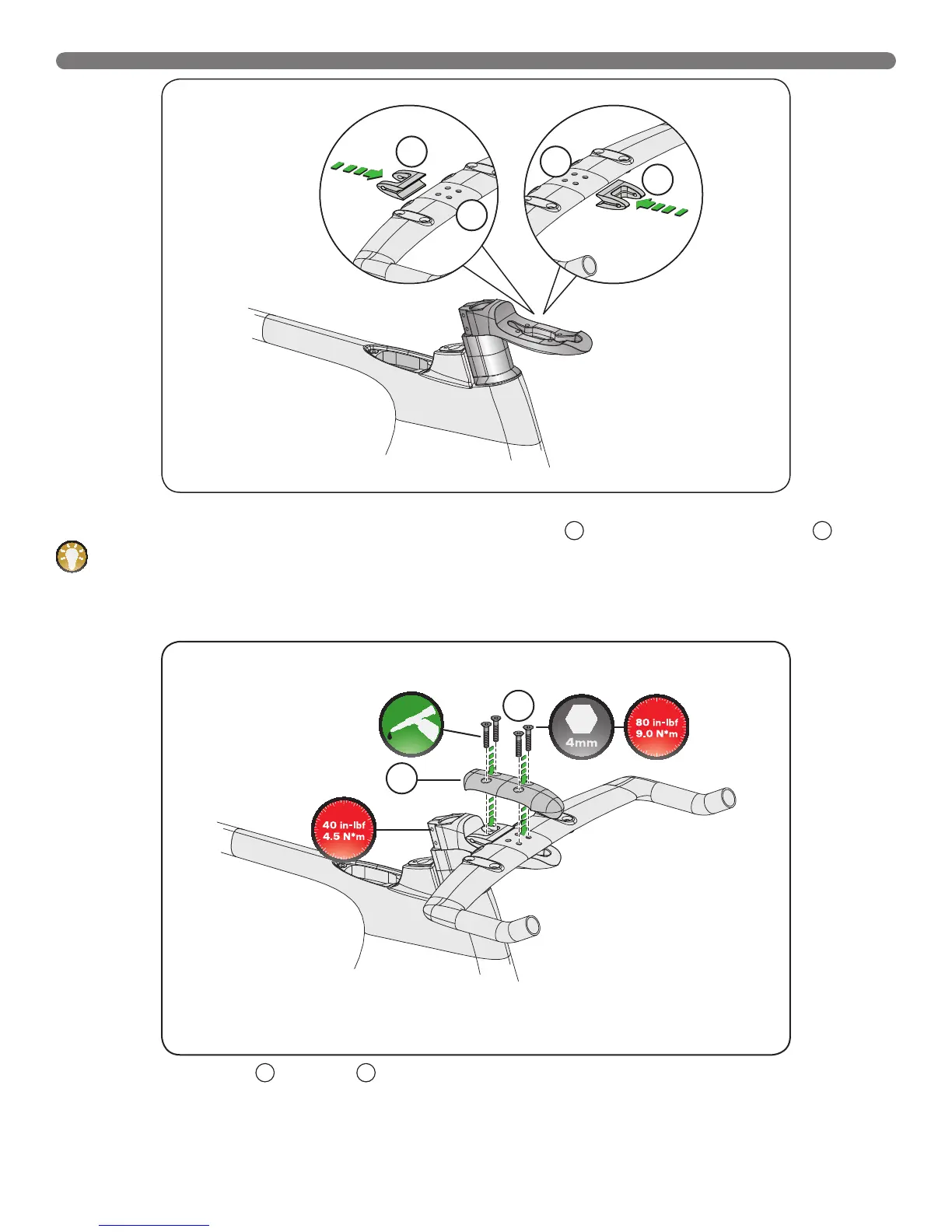

12. Determine the desired stem length (60 or 90mm) and install the carbon aero handlebar
I
along with the handlebar position wedge
J
.
TECH TIP:
If the stem length is not yet determined, it’s recommended to start at the 90mm position. Changing the stem from the 60mm
to 90mm position will require that the cable housings be replaced with longer ones to accommodate the additional stem length. It’s easier
to trim cable housings to a shorter length if adjusting from the 90mm to the 60mm position.
13. Install the stem’s upper section
K
and four bolts
L
(M6x32mm, 4mm countersunk Allen hex head).
14. Alternate the torque to the stem bolts in 5 in-lbf (0.6 N*m) increments, up to a final torque setting of 80 in-lbf (9.0 N*m), to ensure an even load
distribution to the handlebar.
K
L
J
J
I
I
