CHAPTER 6: FUELSELAGE INSTALLATION
6.1 INSTALLING THE FUELSELAGE

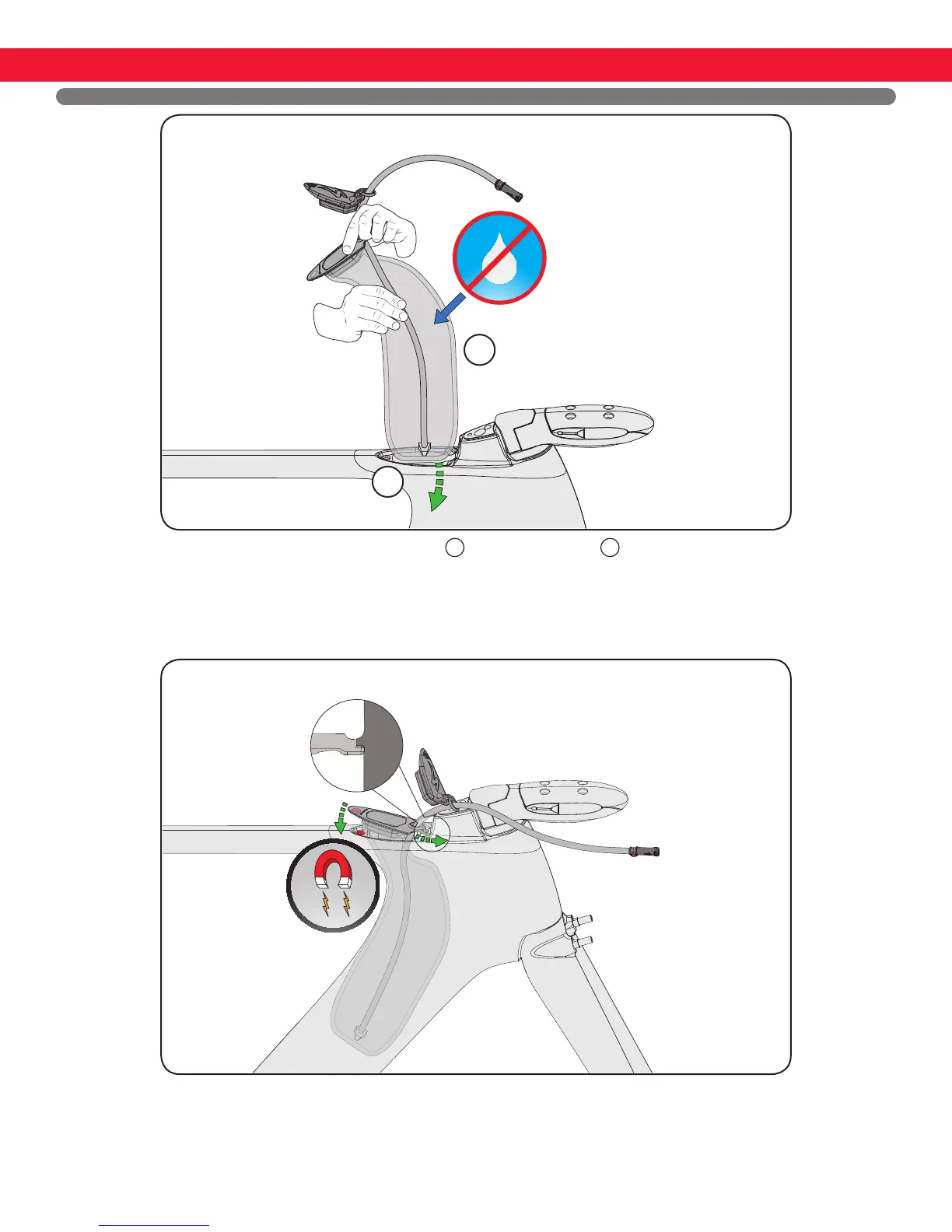

1. Install the empty Fuelselage Integrated Hydration System bladder
A
into the Fuelselage port
B
in the top tube of the frame.
2. Use the hose as a structure to help push and guide the bladder into the down tube.
3. Place the lip of the mouth of the bladder underneath the lip at the front of the port in the top tube.
4. Lower the mouth of the bladder flush with the port. A small magnet in the mouth of the bladder will connect with the bolt hole at the back of the top
tube port.
A
B
