Page 23 of 25

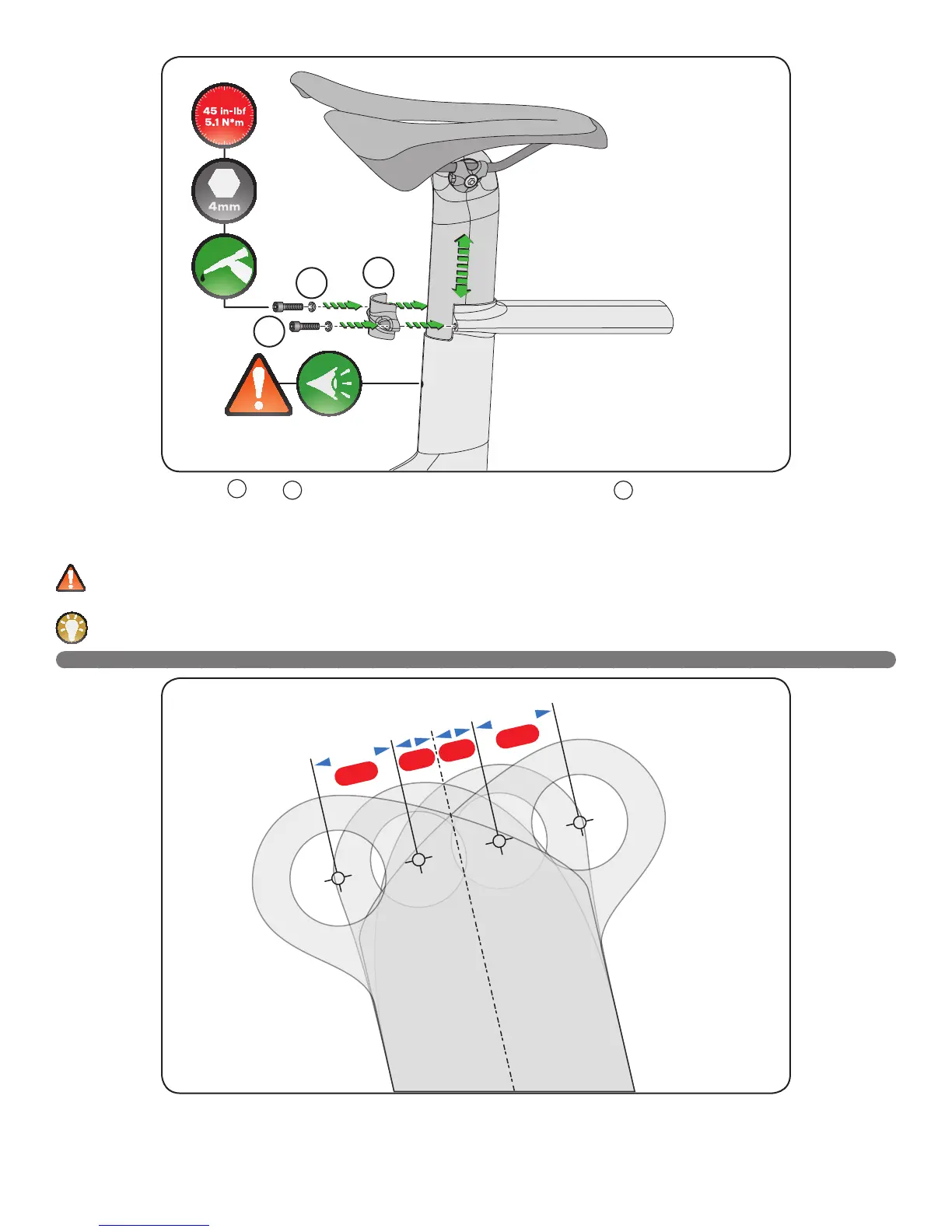

8. Install the seat collar plate
H
, bolts
I
(M5x20mm, 4mm Allen hex head) and domed washers
J
.
9. Adjust the seatpost to the desired height for proper leg extension.
10. Alternate the torque to the seat collar bolts, in 5 in-lbf (0.6 N*m) increments, up to a final torque setting of 45 in-lbf (5.1 N*m) to ensure an even load
distribution to the seatpost. Once complete, the gap between the frame and the seat collar should be equal on both sides.
WARNING! The Shiv is equipped with a minimum insertion sight hole (see figure above). This is the minimum insertion required for the
seatpost and frame to remain structurally safe. All frame sizes require a minimum post insertion of 75mm; the seatpost MUST be visible
through the sight hole.
TECH TIP: The application of carbon assembly compound (fiber paste) can increase friction between carbon surfaces. Please visit your
Specialized Authorized Dealer for additional information.
5.2 SEATPOST SETBACK OPTIONS
25mm
-12.5°
-37.5°
+37.5°
+12.5°
25mm25mm
11. The Shiv seatposts are available in +/- 12.5˚ and 37.5˚ setbacks. The seatposts are also reversible, to offer four positions with 25mm offset.
H
I
J
