Specialized SHIV - 4.4 Adjusting the Front and Rear Brake Assemblies

Page 21 of 25

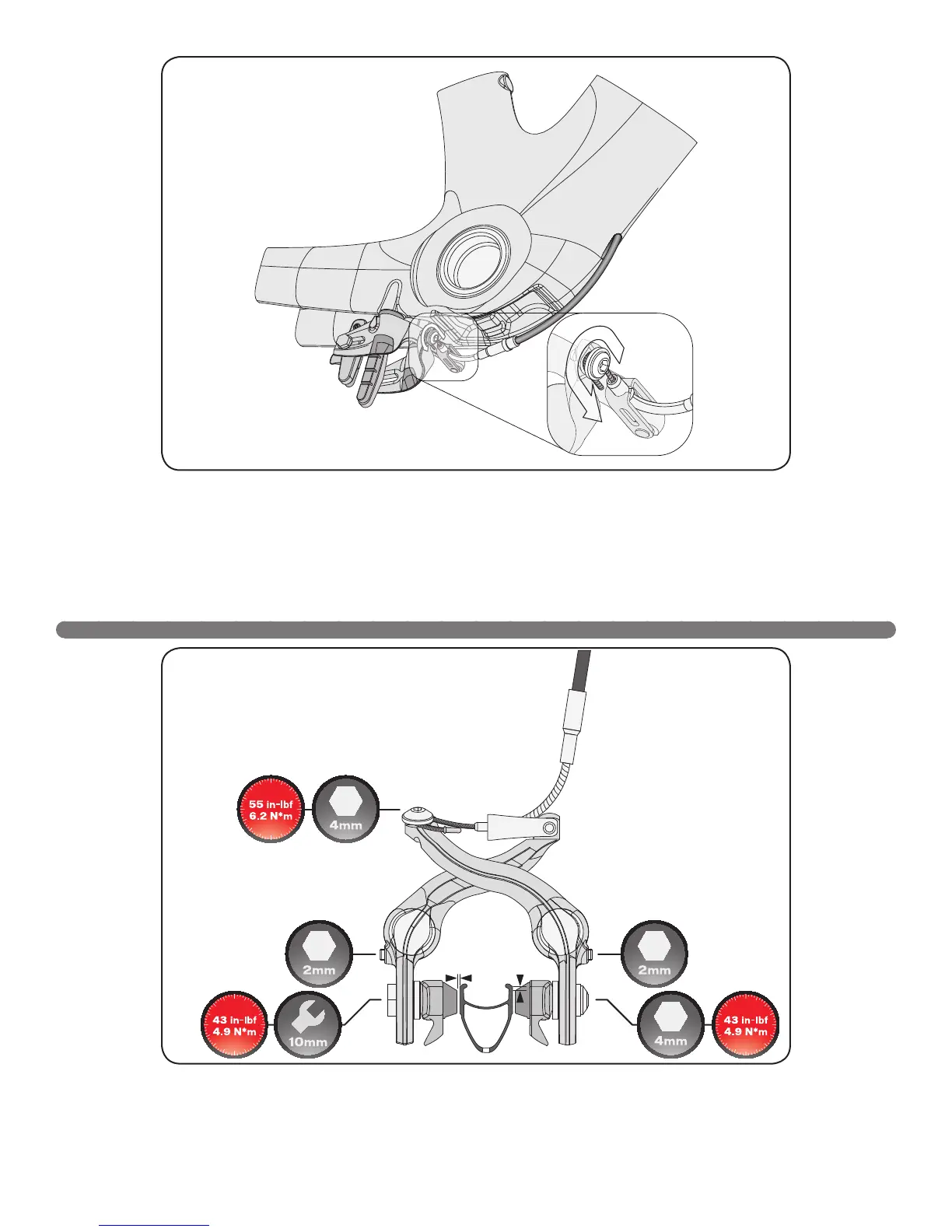

13. Route the cable through the brake lever, into the housing and through the rear brake cable noodle. Repeat the routing method for the front brake.
14. Route the cable around the brake pinch bolt, then apply the specified torque shown below.
4.4 ADJUSTING THE FRONT AND REAR BRAKE ASSEMBLIES
1-2mm1mm
15. Apply the same adjustments to the front and rear brakes.
