2.3 ADJUSTING THE CLAMPS, EXTENSIONS AND ARM PADS

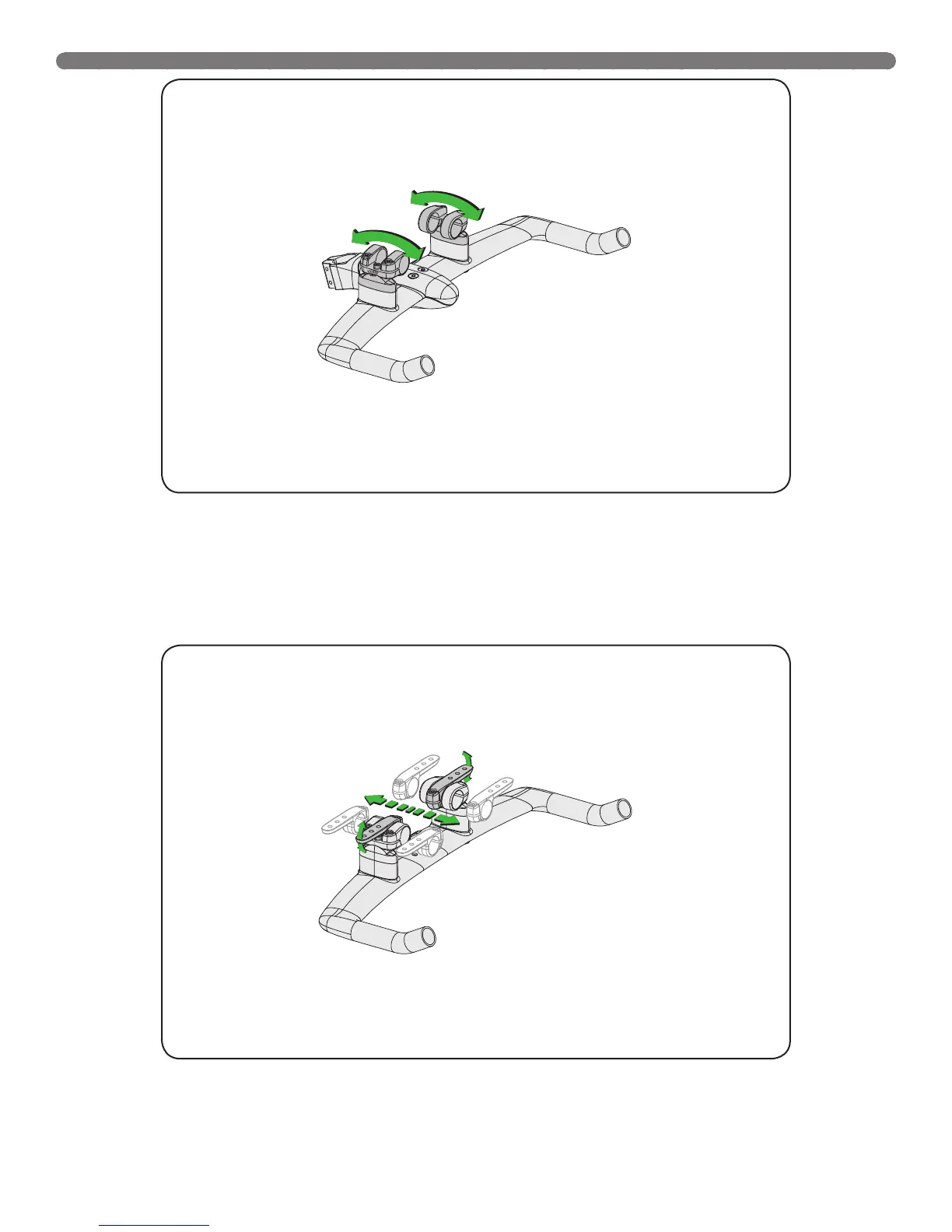

12. The extension clamps have +/- 15˚ of horizontal angle adjustment.
13. The pad holder clamps have the ability to be positioned in front of, between or behind the extension clamps, and can be rotated up or down to fine-
tune the angle of the arm pad.
