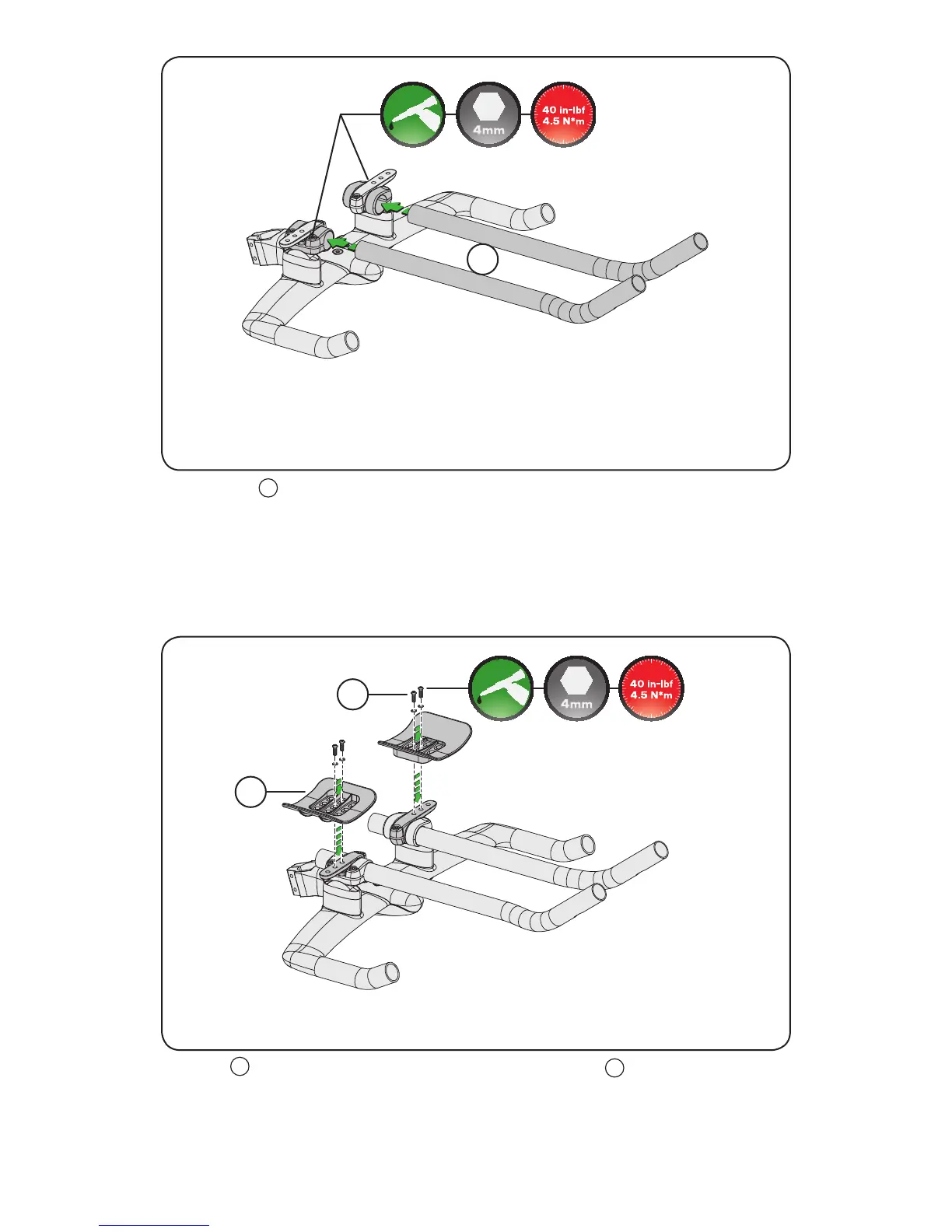

8. Install the handlebar extensions
H
through the extension clamps and the pad holder clamps. The extensions have the option of being switched to
either side, for a wider or narrower hand position. They can also be rotated inward or outward to fine-tune the angle of the hand position (see P.13).
9. Install the arm pad holders
I
on the pad holder clamps with 2 x pad holder bolts and washers
J
(M6x10mm length, 4mm Allen hex round head
bolts). The pad holders have three lateral and three fore-aft position options.
10. Once the fit is determined, torque the extension clamp, pad holder clamp and pad holder bolts to specifications, as illustrated in the images in
section 2.2.
11. Place the foam pads on the pad holders.
I
J
H
