CHAPTER 4: BRAKE INSTALLATION

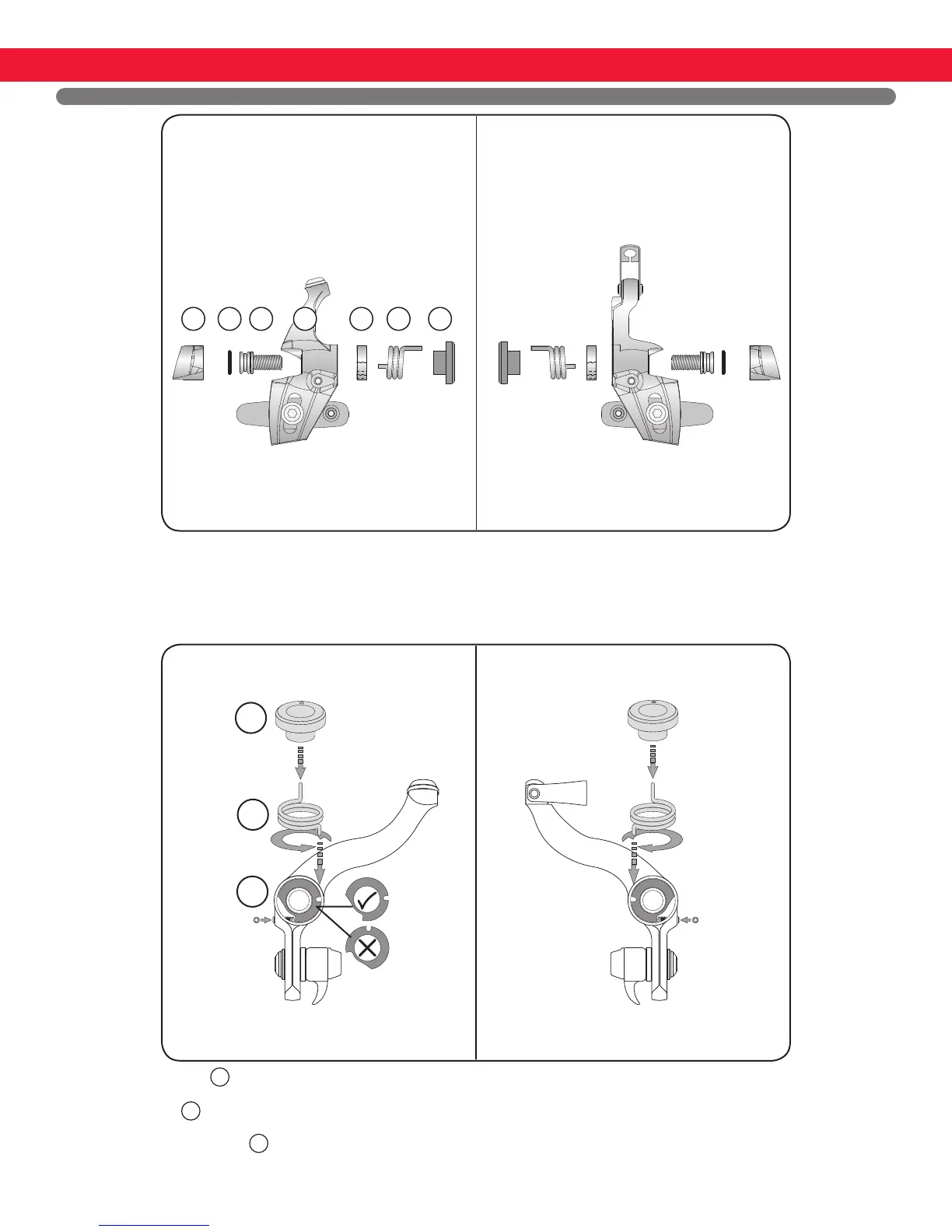

4.1 FRONT AND REAR BRAKE ASSEMBLY (Exploded view)
1. Place the spring plates
5
in the brake cavity. Make sure they’re facing the correct direction with the flat edge against the adjuster screw. The spring
plate is reversible for either side brake.
2. Install the springs
6
, clockwise for the drive-side brake, counter-clockwise for the non-drive-side brake. The shorter of the two spring pins goes in
the brake.
3. Install the brake spring covers
7
.
1. Aero bolt cap
2. Brake bolt O-ring
3. Brake pivot bolt
4. Brake arm
5. Spring plate
6. Spring
7. Spring cover
5
6
7
7654321
Place long spring
tip facing out
Clockwise
wound
Counter-clockwise
wound
NON-DRIVE SIDE (Rear View) DRIVE SIDE (Rear View)
Non-drive-side Drive-side
