9.1.3 Variant with double mechanical seal in back-to-back arrangement
[ Supplied in packaging units only
901.24
575
161
720.09
10E
433.01
932.05
902.02
433.02
471
920.02
523
523
400.75
400.75
400.15
411.15
720.09
10A
550.96
931.95
901.50
411.16
411.16

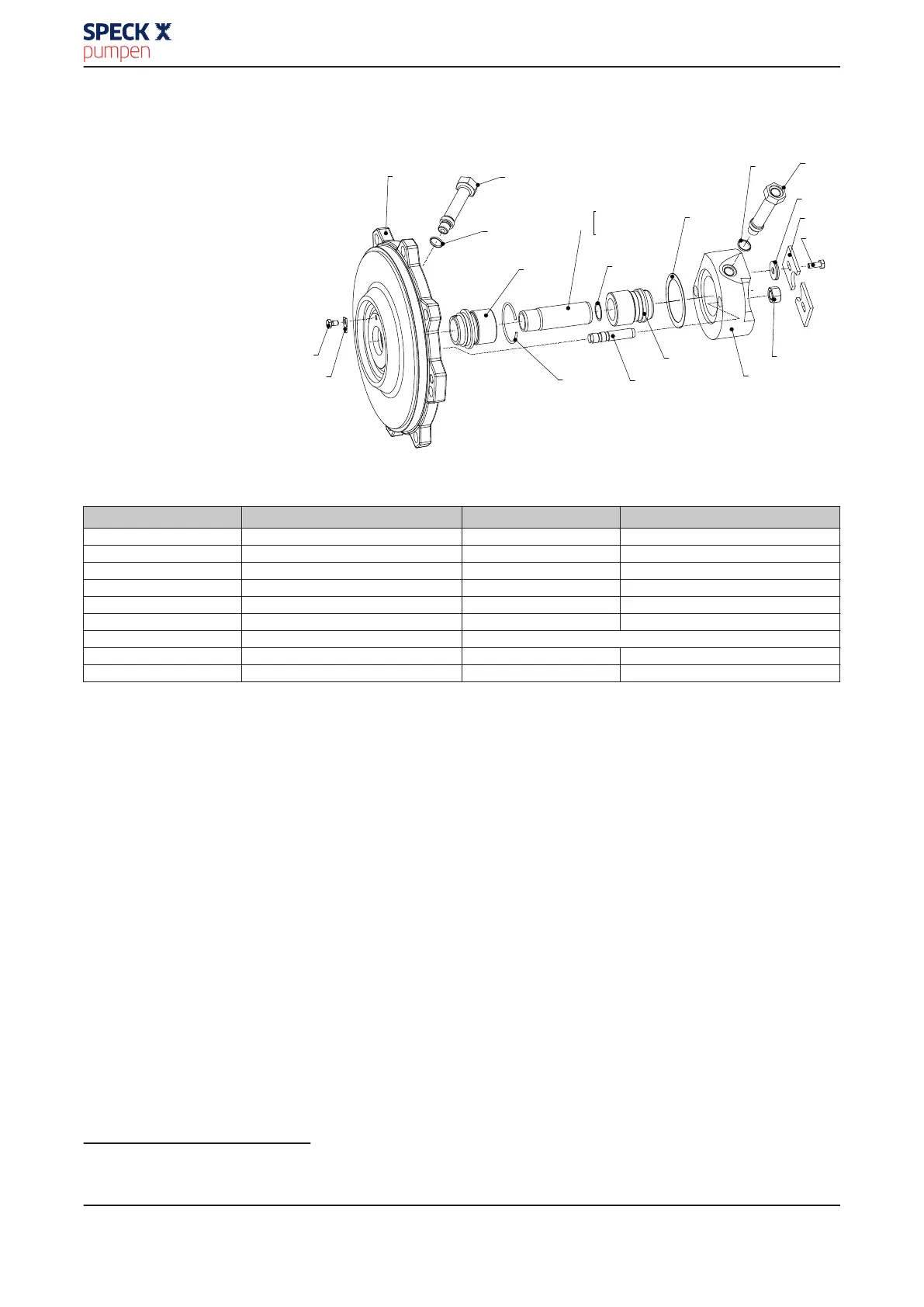

Fig. 13: Variant with double mechanical seal in back-to-back arrangement
Table 24: List of components
9)
Part No. Description Part No. Description
161 Casing cover 720.09 Fitting
400.15/.75 Gasket 901.24/.50 Hexagon head bolt
411.15/.16 Joint ring 902.02 Stud
433.01/.02 Mechanical seal 920.02 Hexagon nut
471 Seal cover 931.95 Lock washer
523 Shaft sleeve 932.05 Circlip
550.96 Disc Auxiliary connections
562.02 Parallel pin 10A External barrier fluid outlet
575 Strip 10E External barrier fluid inlet
9)
Some individual components might not be applicable, depending on the size and material.
9 Related Documents
Normblock
53 of 58
