9.1.4 Variant with double mechanical seal in tandem arrangement
[ Supplied in packaging units only
509
161
720.32
24E
433.01
412.15
902.02
433.02
471
920.02
523
523
400.75
400.75
720.32
24A
550.96
931.95
901.50
411.35
562.25

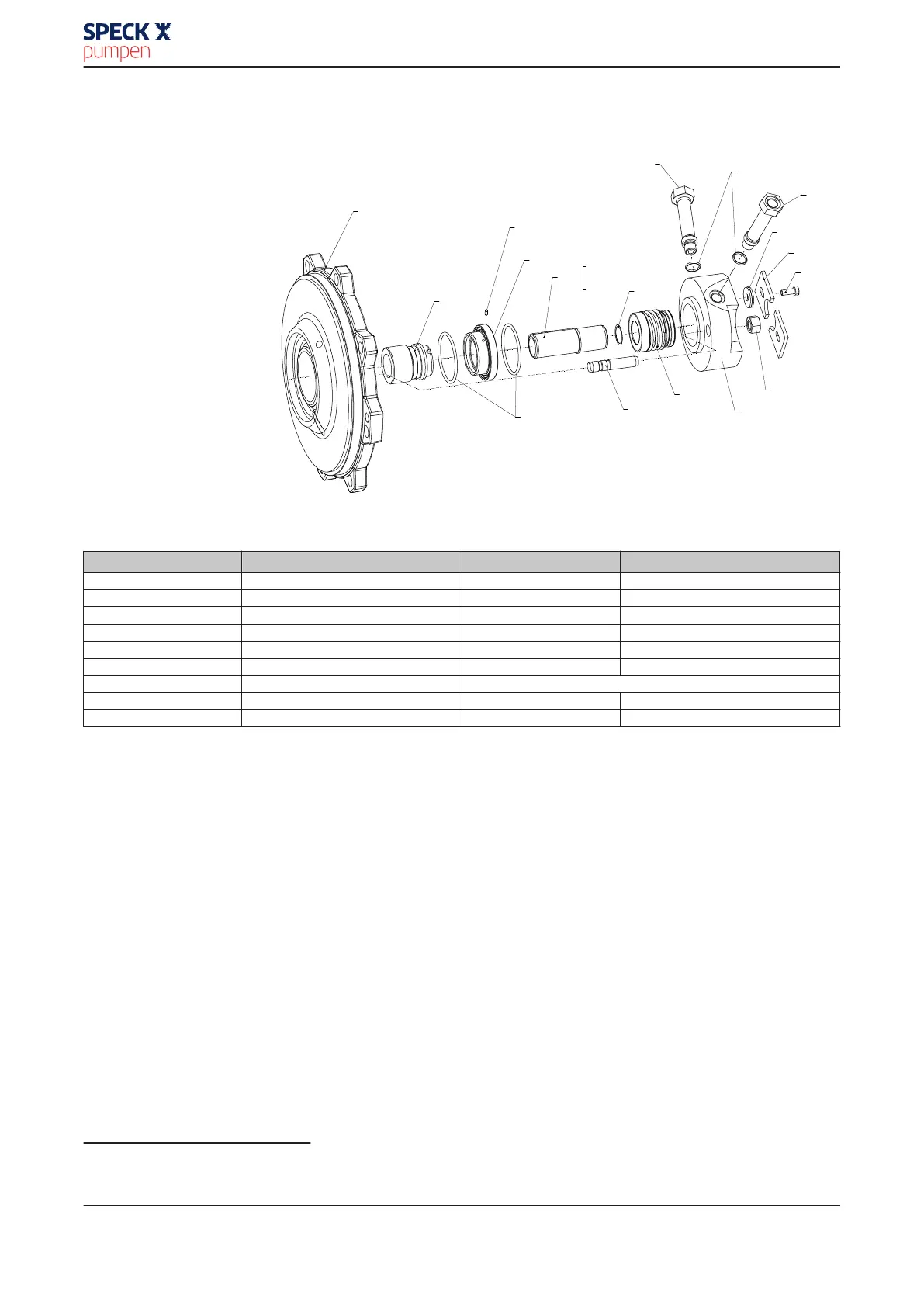

Fig. 14: Variant with double mechanical seal in tandem arrangement
Table 25:
List of components
10)
Part No. Description Part No. Description
161 Casing cover 562.25 Parallel pin
400.75 Gasket 720.32 Fitting
411.35 Joint ring 901.50 Hexagon head bolt
412.15 O-ring 902.02 Stud
433.01/.02 Mechanical seal 920.02 Hexagon nut
471 Seal cover 931.95 Lock washer
509 Intermediate ring Auxiliary connections
523 Shaft sleeve 24A Quench liquid outlet
550.96 Disc 24E Quench liquid inlet
10)
Some individual components might not be applicable, depending on the size and material.
9 Related Documents
54 of 58
