DVR-IP4CF
12

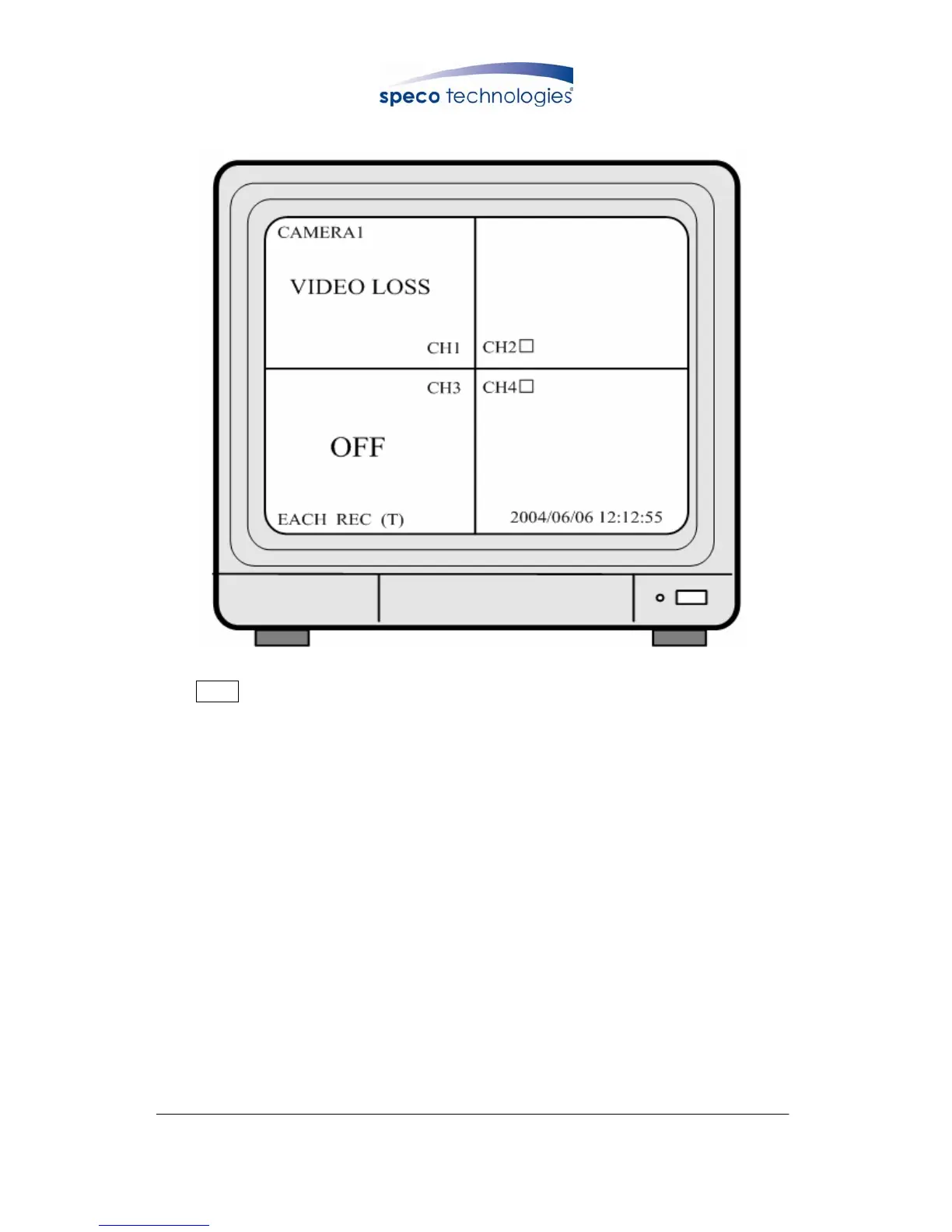

7.3 Record Display
Note:CH1: No block figure next to CH1 indicates that it is not recording.
EACH: Record Type QUAD: Record Type
(T): TIMER RECORD (A): ALARM RECORD (M): MIX RECORD
(□): Currently under recording.
VIDEO LOSS: Video input unable to be detected.
CAMERA1: Name for CH 1.
OFF: Channel is set to “OFF”.
