The DX8 organizes the programming screens in two separate categories: System
Setup Mode and Functions Mode. Function Mode programming adjusts a
model’s flight characteristics at the field.
Servo Setup page 22 Servo Setup page 22
D/R and Exponential page 23 D/R and Exponential page 23
Differential page 24 Throttle Cut page 25
Throttle Cut page 25 Throttle Curve page 26
Throttle Curve page 25 Swashplate page 27
Flap System page 26 Governor page 28
Mixing page 29 Pitch Curve page 28
Aileron to Rudder Mix page 29
Tail Curve- For Non-Heading
Programmable Mixes page 29 Hold Gyro Use Only page 30
Timer page 33 Mixing page 31
Monitor page 35 Gyro page 33
Timer page 33
Monitor page 35
With the transmitter on and the main or telemetry screen displayed, press the
roller. The Function list displays.
Highlight the desired function then press the roller to access that function. The
selected function screen appears:

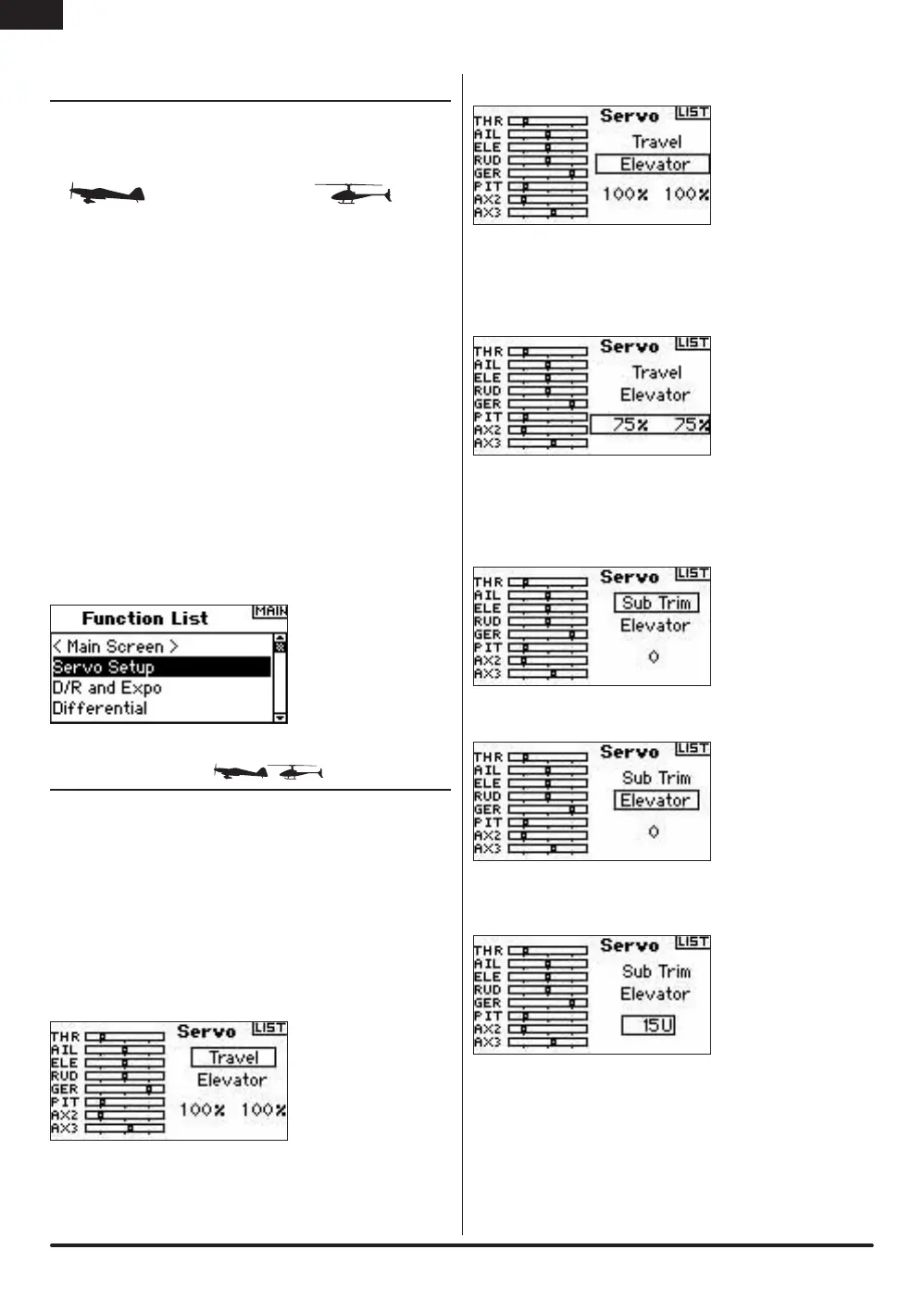

Servo Setup adjusts the servo reverse, travel adjust, sub-trim and servo speed for
all eight channels. Servo Setup screens feature a servo monitor that allows easy
visual reference when making adjustments.
- Allows the adjustment of servo throw/travel in each direction
- Typically used to center the servo position
- Changes the direction of the servo/channel
Speed - Adjusts individual servo speed
With the transmitter on and the main or telemetry screen up, press the roller. The
Function list displays. Rotate the roller to highlight Servo Setup then press. Servo
travel will automatically be highlighted. Press to enter the Travel function.
Highlight the channel then press the roller. Rotate the roller to access the channel
you wish to adjust then press to accept.
Highlight the values at the bottom of the screen. When you center the
corresponding stick both values are highlighted and will adjust simultaneously.
Moving the stick or switch in the desired position adjusts that direction of travel
independently. With the desired value(s) highlighted, rotate the roller to adjust the
travel for the selected channel. Then press to accept.
With the transmitter on and the main or telemetry screen up, press the roller. The
Function list displays. Rotate the roller to highlight Servo Setup then press. Servo
travel will automatically be highlighted. Rotate the roller until Sub-Trim appears in
the channel position then press to enter the function.
Highlight the channel then press the roller. Rotate the roller to access the channel
you wish to adjust. Press to accept.
Highlight the value at the bottom of the screen then press the roller to access the
Sub-Trim Value. Rotate the roller to adjust the Sub-Trim value for the selected
channel. Then press to accept.
