9

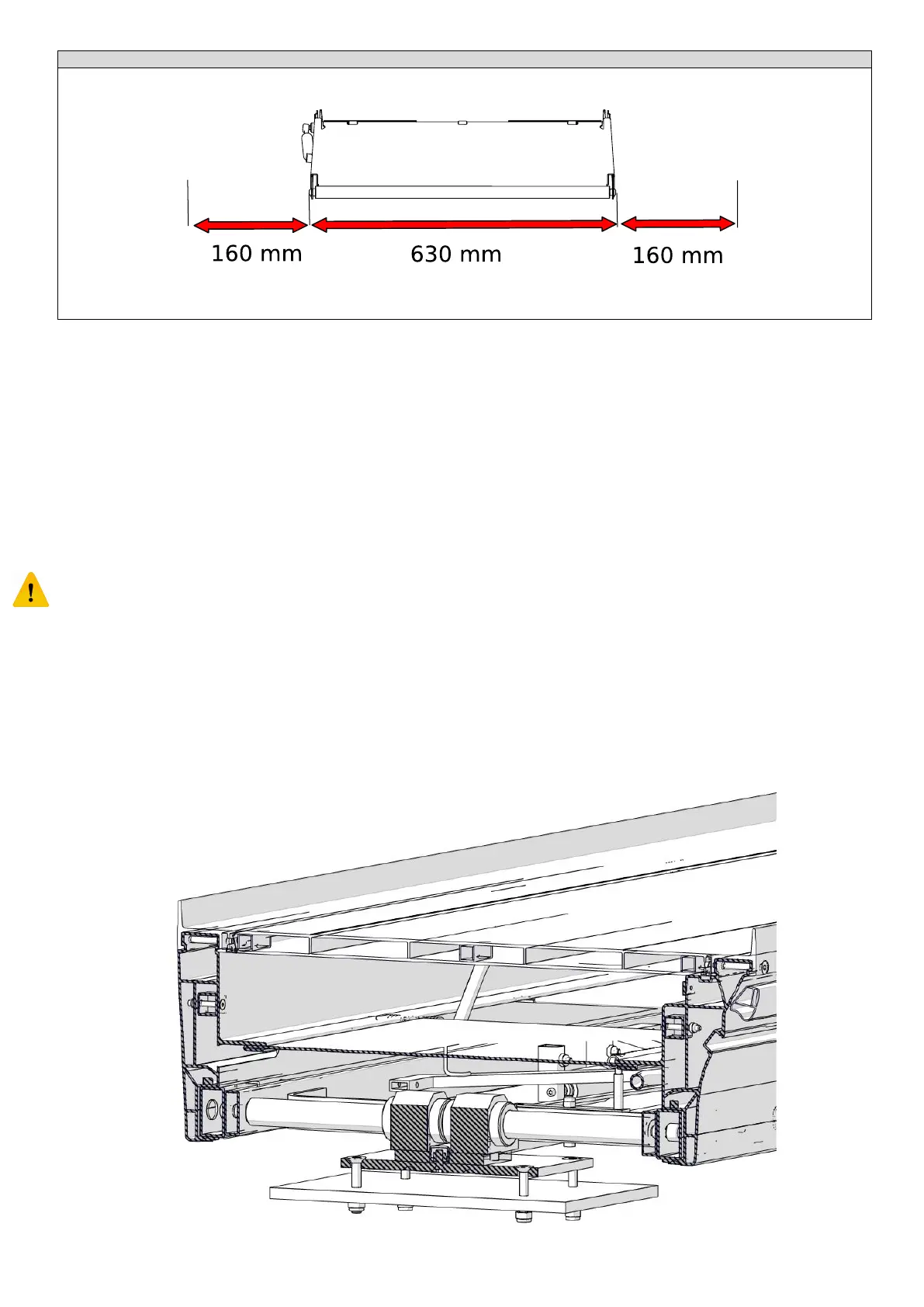

Sideways movement model SLIM
WARNING: The dimensions in the table above do not consider the space needed for the normal use of the stretcher support. The installation
must ensure a quick and easy access to the stretcher support, in particular a free access to the command levers must be ensured.
9.3 Floor installation
Once the conditions of previous paragraphs are verified, is possible to start the operations needed for the installation on the ambulance
floor.
Before the installation verify that:
The installation floor is leveled and strong enough to withstand accelerations and vibrations to which the device could be subject during
use on the ambulance
Check that electric cables or gas supply systems do not interfere with the installation of the device.
The following diagram shows the quotes of the holes needed for floor installation.
WARNING: The installation floor must be adequately reinforced to withstand the stresses to which it may be subject.
As minimum requirement, the installation floor should be able to hold the weight of the stretcher support and its maximum loading capacity
in the event of impact of the vehicle up to 10g accelerations in all directions in accordance with EN 1789.
The installation on the vehicle floor must be done according to the following specifications. It is necessary to use backplates to be placed
under the vehicle floor. The choice of such backplates is an installer responsibility which has to make proper evaluation to ensure the
compliance of the installation with the requirements of EN 1789.
The following image shows an example of backplates. The choice of their dimensions and technical specification are an installer responsibility
who will make the necessary evaluations considering the characteristics of the installation surface.
The devices shall be installed by means of screws M8.
