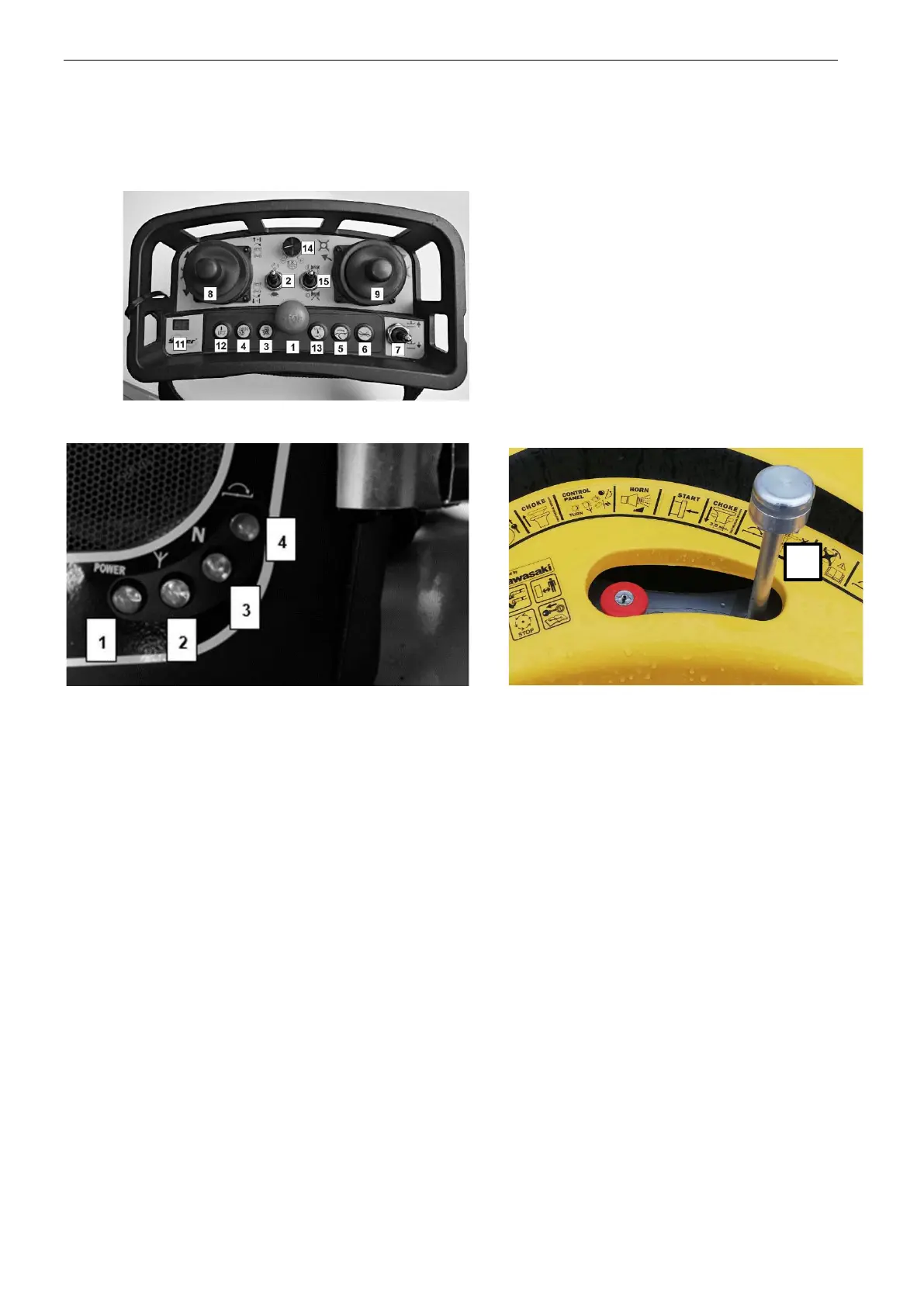

7 DISPLAYS
7.1
NBB RADIO CONTROLLED DISPLAYS
Indicator (11) flashes – RC power ON indicator
Radio control emits a high pitch tone - RC battery low voltage warning
7.2
MOWER DISPLAYS
1.
Power indicator
2.
Signal reception
3.
Neutral
4.
Blade
On the side cover of the mower there are a number of warning and indicating LEDs.
These displays signal the following states:
1.
Power indicator: Illuminated green when the EMERGENCY STOP button on the top of the mower is
unlocked. The battery voltage is OK.
Illuminated RED when starting the engine = momentary drop of the battery voltage
Illuminate RED when during operation at max RPM = Problem with the battery
charging. Do not use the machine before the problem is checked and resolved.
Further damage to the electrical system may occur!
2.
Signal reception: Illuminated green when the radio link between the RC and the receiver is established
and correct
3.
Neutral: Illuminated green when the transmission is in the neutral position
4.
Blade: Illuminated red when the blades are engaged.
5.
Beacon: - Flashing BLUE when mower and transmitter are turned ON
- Flashing GREEN when engine is started
- Flashing RED when mowing deck is engaged
- Flashing YELLOW when engine error is detected (oil pressure, overheat etc.)
NOTE: Immediately after the mower and transmitter are turned ON and while starting the engine the Beacon blinks
YELLOW – this is a procedure done automatically by the engine to test if all functions are responding properly.
•
After the power supply is turned on, indicator lamp 1 will be illuminated
•
After turning on RC and establishing communication between the RC and the machine lamp 2 flashes. If
there is a break in communication, lamp 2 dims.
•
Lamp 3 is illuminated when the drive servomotor is in a neutral position.
•
Lamp 4 is illuminated while the blades are engaged. The mower cannot be started while this lamp is
illuminated.
