Operation Manual – Spider ILD02 EFI
45 / 55
rev. 01-01-02-2021

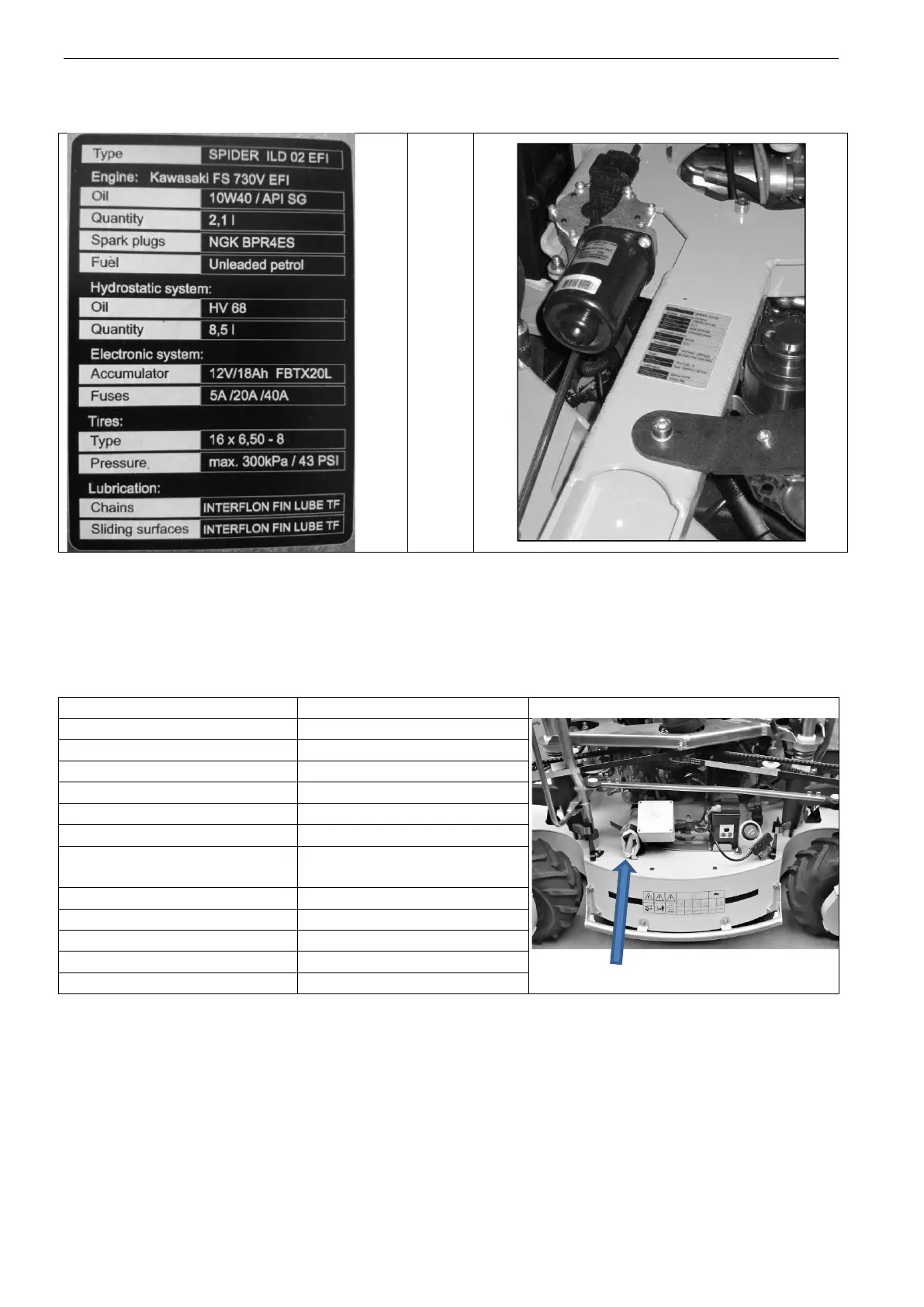

11.24 TECHNICAL PLATE
The technical plate provides information on mower fillings and basic information for machine maintenance. The
technical plate is placed on the machine girder.
11.25 TOOLS
Spider ILD02 EFI is equipped with a basic set of tools, which allow regular maintenance and basic servicing. The
tools are based under the side cover next to the fuse box (see figure below). The tool roll is also equipped with a
pocked for the business card of your local authorized service/dealer.
List of tools
Use
Placement on the machine
Spark plug spanner 21 mm
Spark plugs
Socket head 19 mm
Change of blades
Socket head 17 mm
Change of wheels
Socket head 15 mm
Tightening of drive belts
Lever handle
-
Flat spanner 10-13 mm
Tightening of drive belts
Flat spanner 16-17 mm
By-pass, tightening of steering
chain
Hex-wrench IMBUS 5 mm
Wheel suspension
Hex-wrench IMBUS 6 mm
Wheel suspension
Hex-wrench IMBUS 8 mm
Tightening of steering chain
Screwdriver flat-tip / crosshead
Fuse box
Fuses 5A, 20A, 40A
Fuse box
