9.4

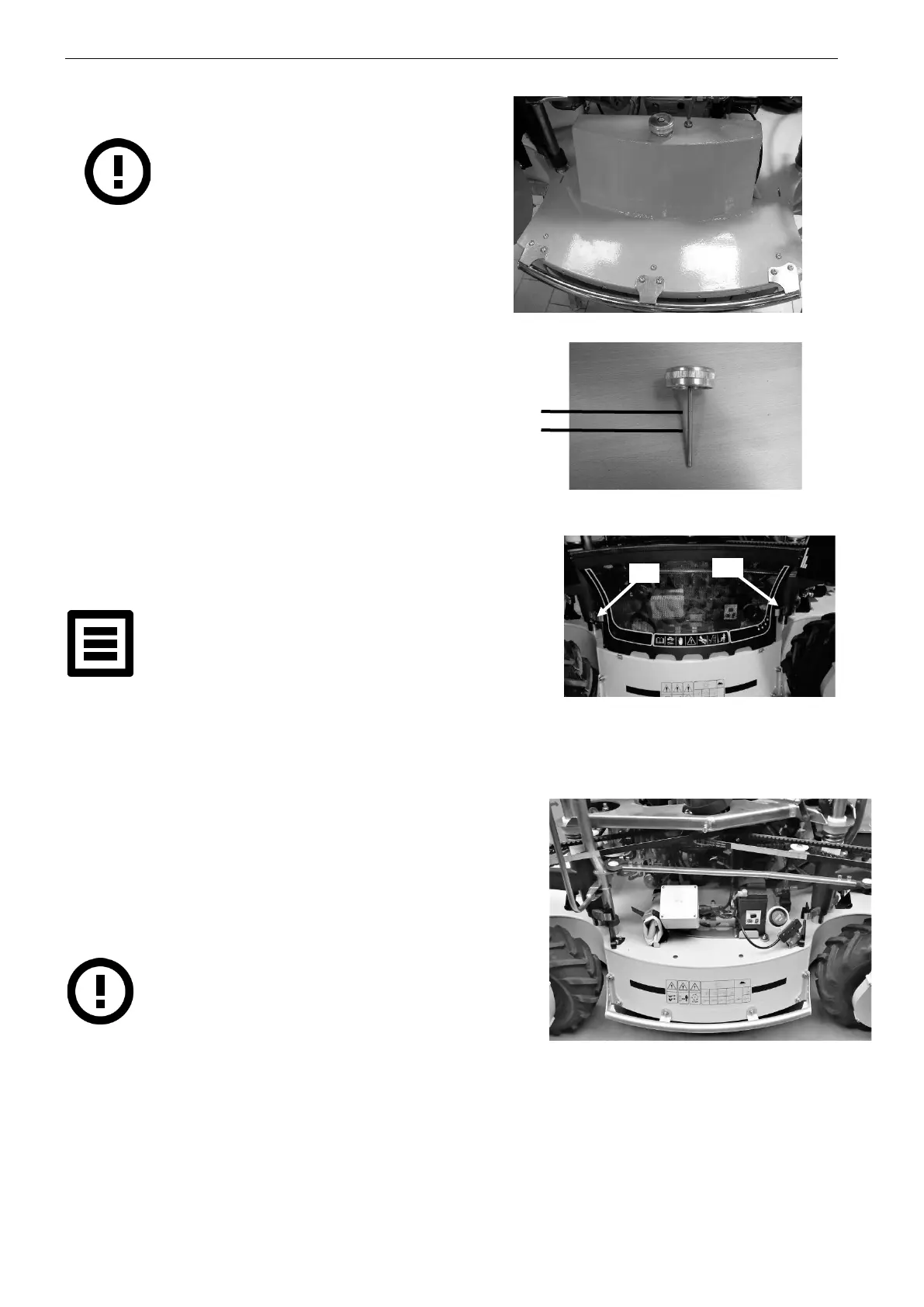

CHECKING HYDRAULIC DRIVE OIL LEVEL
Oil level should only be checked when the oil is cold.
Clear debris from around the cap;
unscrew the cap on the hydraulic oil
tank on the side of the mower.
Using the dipstick check the oil level. It
must be between the limit marks.
If the level is above this range, the oil may overflow
from the breather pipe in the tank when hot. If the level
is below the lower limit, the hydraulic drive may be
damaged or the mower may become uncontrollable
when operating on a slope.
Refill with oil if necessary (HV 68 according to ISO
6743 or HLP 68, CLP 68 according to DIN 51502)
finished, refit the cap back on the oil tank
.
9.5
PREPARING THE BATTERY
SPIDER ILD02 EFI uses a gel battery model 6E12, 12V, 18Ah
Do not fill the battery with electrolyte. The
machine construction uses a dry type of
battery. If recharging, use a maximum electric
current of 1.4 A
•
Loosen safety clips (A) and remove the side cover
(see figure).
•
Insert the battery
•
Attach terminal connectors according to polarity.
First (+), then (-).
•
Secure the battery against movement with a
rubber band.
•
Attach back the side cover.
•
When disconnecting and removing the battery,
proceed in reversed order.
Never start the mower when a charger is
connected to the battery.
FOR CHARGING USE ONLY SPECIAL
CHARGERS PREVENTING THE EXCESS OF
THE GASSING VOLTAGE.
WHEN CHARGING THE BATTERY, MAKE SURE
THAT CABLES CONNECTING THE BATTERTY TO
THE MOWER ARE DISCONNECTED.
min
max
