2.3 Using the buttons
The and buttons are used to:
- scroll up and down through the menus.
The and buttons are used to move between the Bar graph and the Trend graph.
The
OK
button is used to clear errors or alarms.
OK
BC3250
100
50
0
%
SP
PV
AL

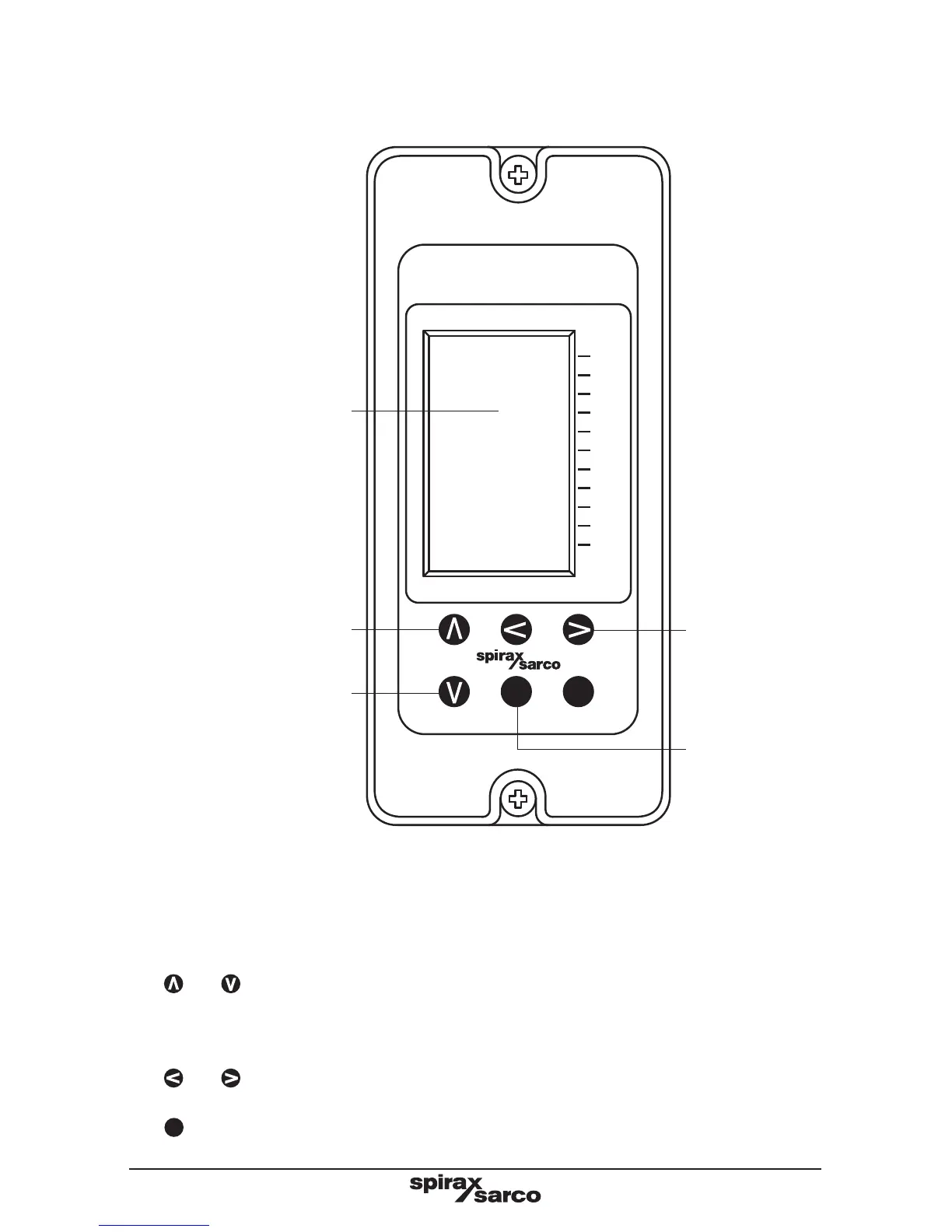

Fig. 1 Front panel keypad and definitions.
Graphic display
Clears any
errors or alarms
(Press and hold
for 5 seconds)
2.2 Front panel
The front panel has an LCD
graphics display and five-
button keypad:
Horizontal
arrows are
used to toggle
between the Bar
graph and the
Trend graph
Scroll up menus
Scroll down menus
