IM-P337- 6 9 EMM Issue 2
10
0
0
100
200
300
400
239
10 20 30 40 50
32*

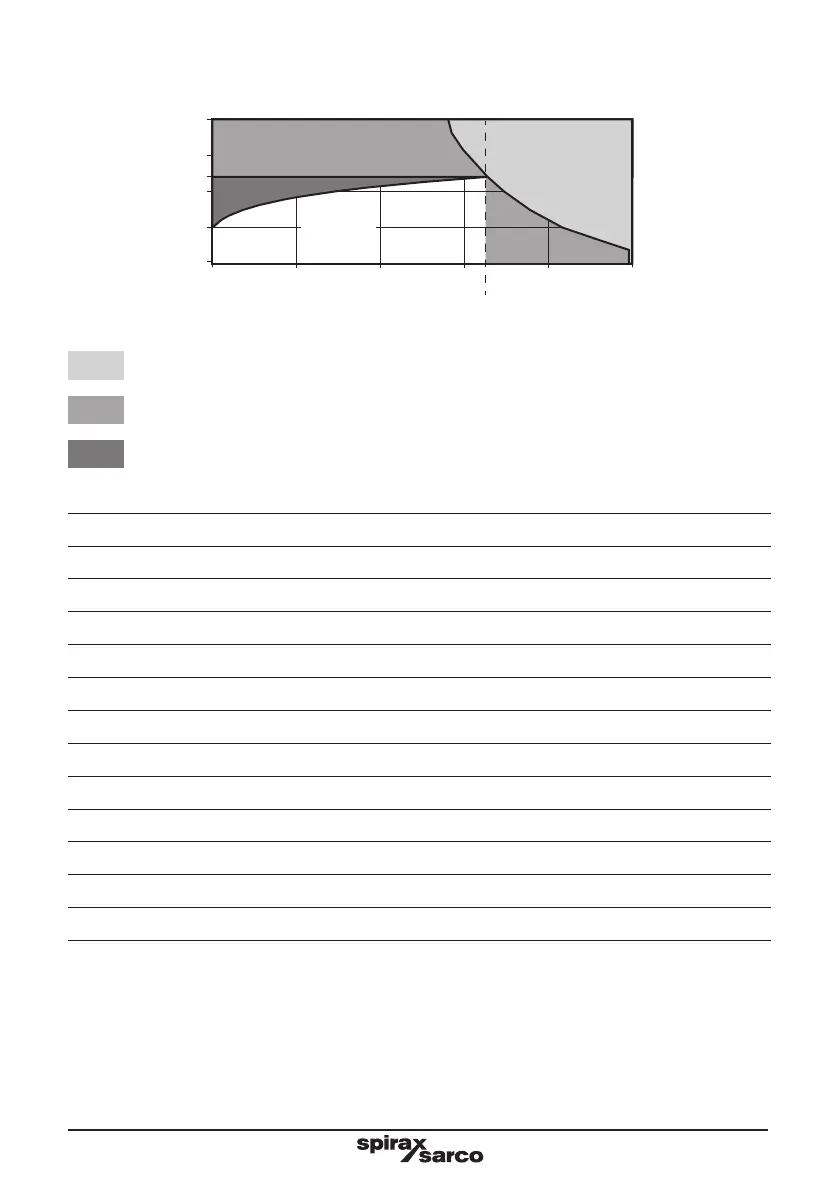

3.5 Pressure/temperature limits
Temperature °C
Pressure bar g
Steam
saturation
curve
The product must not be used in this area.
Outside of operating range.
Steam is superheated in this area.
Maximum design pressure 49.6 bar g @ 21 °C
Maximum design temperature 400 °C @ 29.4 bar g
Minimum design temperature 0 °C (non-freezing)
Maximum operating pressure * 32 bar g @ 239 °C
Minimum operating pressure 0.6 bar g
Maximum operating temperature (saturation) 239 °C
Minimum operating temperature 0 °C (non-freezing)
Maximum electronics ambient temperature 55 °C
Minimum electronic ambient temperature 0 °C
Maximum electronics humidity level 90% RH (non-condensing)
Designed for a maximum cold hydraulic test pressure of: 50 bar g
Glass on the display is rated for impact of maximum 4J
Environment Protection IP65
