IM-P337- 6 9 EMM Issue 2
31

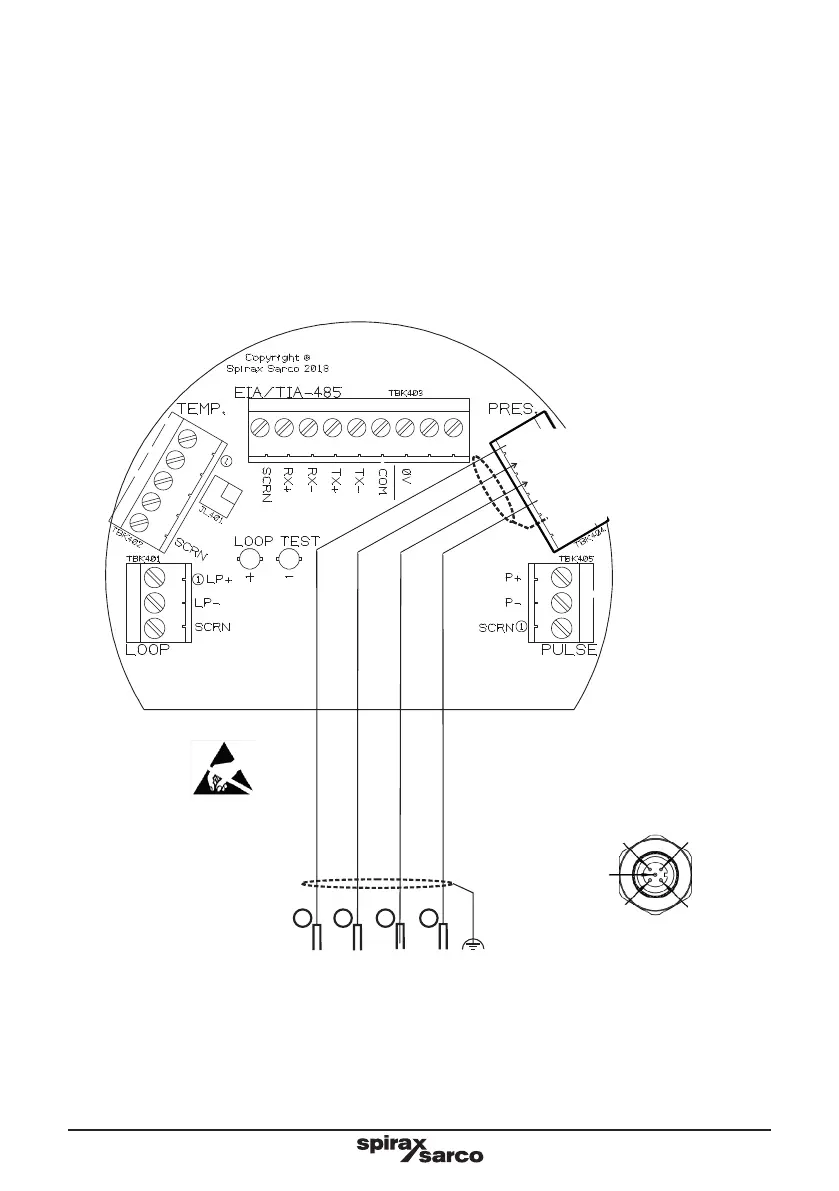

Fig. 25 Pressure sensor wiring (factory wired)
5.5 Pressure sensor wiring
If it is necessary to replace the pressure sensor cable assembly, the following details the wiring connections:
PRESSURE
SENSOR
CONNECTOR
(PIN 2 = N/C)
3 1
1
BROWN
N/C
BLUE
GREEN/YELLOW
BLACK
OUT-
OUT+
GND
Vcc
2
3
4
5
4
PRESSURE
SENSOR
(FACTORY WIRED)
1
SCREEN
RETURN
IN-
IN+
GREEN/YELLOW
BLACK
BLUE
BROWN
SUPP LY
5
