Spirax Sarco ILVA20 User Manual

IM-P337- 6 9 EMM Issue 2
33
To put the MVT10 into operation:

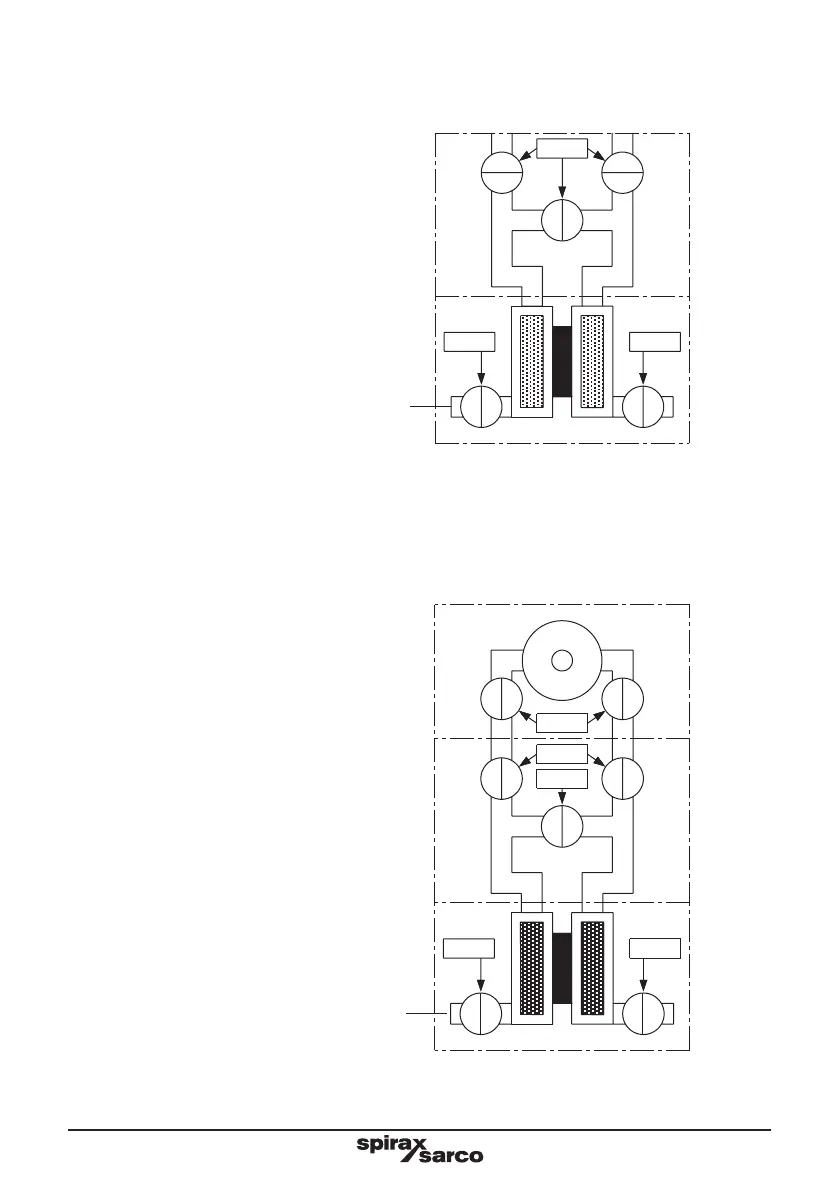

Step 1
Make sure that all valves on the 3-way manifold
and bleed valves are in the closed position.
3-way
manifold
MVT10
Closed
ClosedClosed
Bleed valve
Bleed valve
Step 2
Fill the impulse hoses/lines with cold water or
uncontaminated condensate (no dirt or debris
entrained in the condensate) as this will have been
chemically treated and reduce the formation of air
bubbles through the 2 way manifold filling ports.
Step 3
Open the Hi and Lo isolation valves on the 3 way
manifold along with the bleed valves on the MVT10.
Purge until a constant stream of fluid can be seen.
Open
Open
Open
Open
Closed
Bleed valves
3-way
manifold
MVT10
Bleed valve
2-way
manifold
HI LO
