3. Typical applications
The LC2610 can be configured to control the level of a boiler, tank or vessel, by operating a pump,
valve or solenoid. The following diagrams show some typical applications:-
3.1 On/off control:
-
Pump control.
- Two alarm outputs.
- 4 - 20 mA level output.
Note: A solenoid valve may be used instead of a pump.

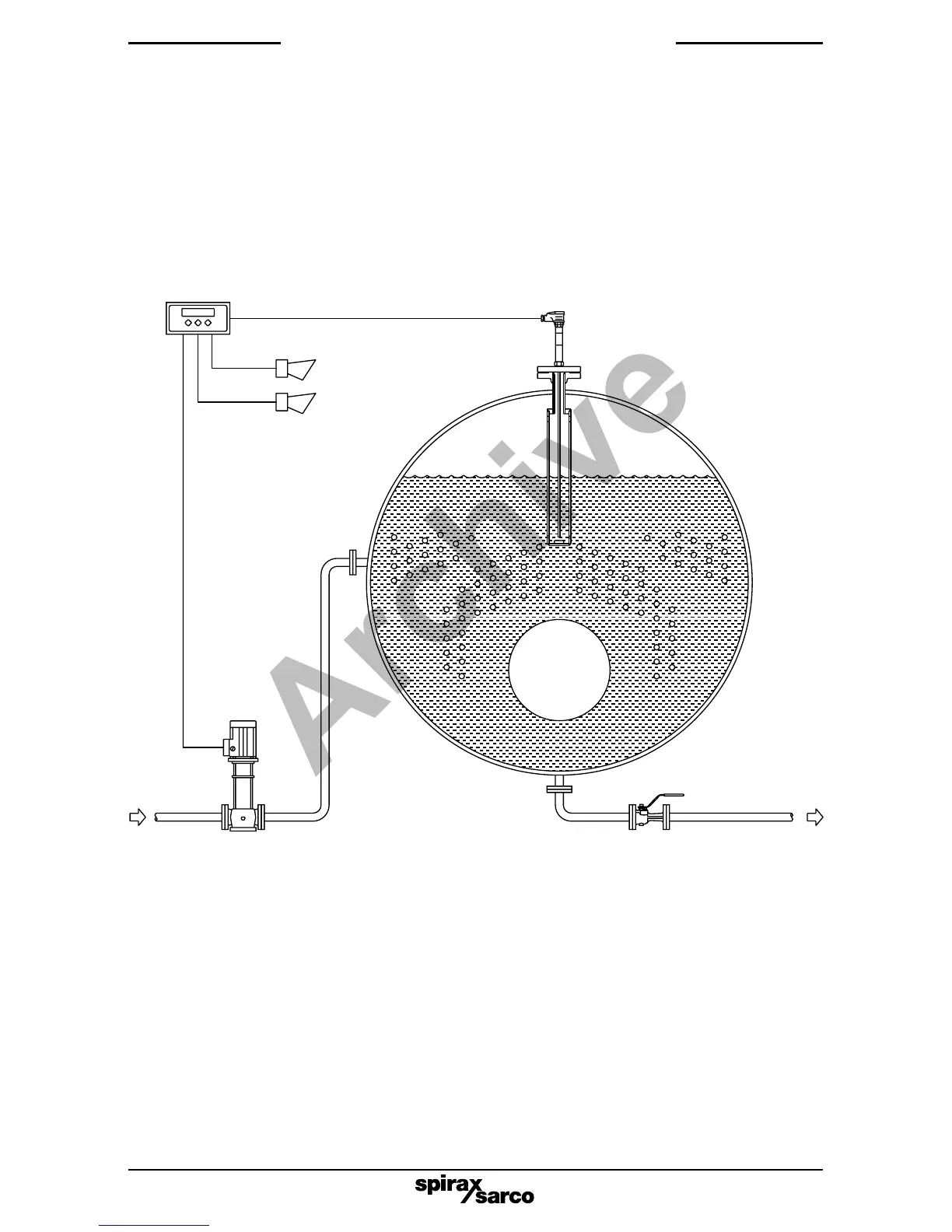

Fig. 2
