SPORTSTECH F38 - Assembly Procedure; Console Post Installation; Console Mounting

Page
Assembly instructions
05
Console
Console Post
Handle Bar
Edging
Right console post
Location for cable
connection
Left console post
Motor Cover
Hand Pulse Sensor
Running Belt
console
Location for cable connection

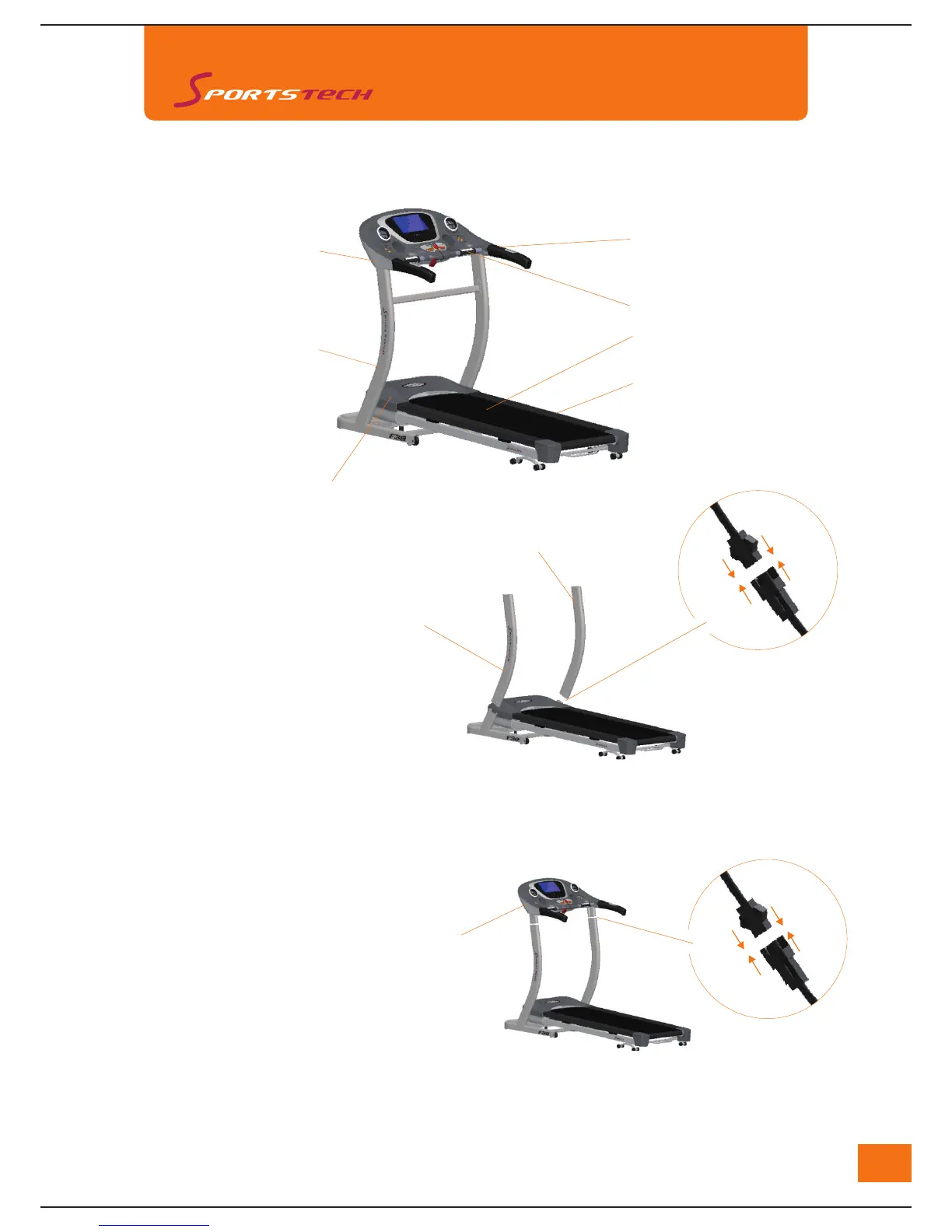

Step 1
Fix the console posts onto the main frame
Step 2
Fix the console onto the posts
A
: Connect the extension cable with PWM cable. Cable should go through the right console post.
B: Lock both of the console posts onto the bottom frame with M8*15 bolt x 6pcs and busher x 6pcs
(Note: Don't fasten the bolts)
A: Connect the console cable with the extension cable
B: Lock the console onto posts with M8*15 bolt x 6pcs and busher x 6pcs
(Note: Don't fasten the bolts)
