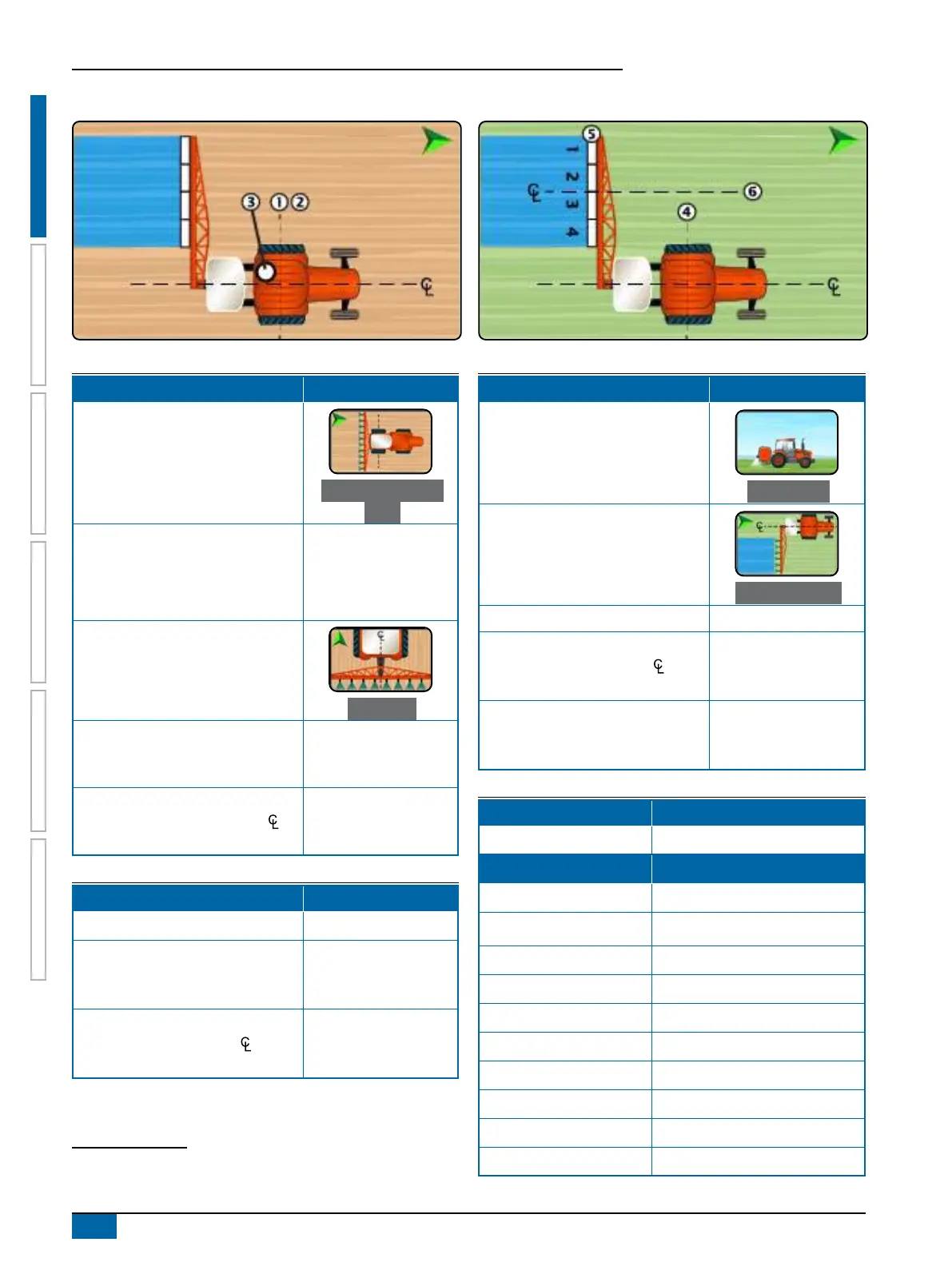

Tractor with Fixed Mount O-Center Sprayer
Table 1-9: Vehicle Wizard Measurements
Description Measurement/Option
Vehicle In-Line Direction to Hitch
Point
Aft of Vehicle Pivot
Point
Vehicle In-Line Distance from the
Vehicle Pivot Point
to Hitch
Point
0 in / 0 cm
Vehicle Pivot Point
and Hitch Point
are
the same point
Vehicle Lateral Direction to Hitch
Point
On Center
Antenna In-Line Direction and
Distance from Vehicle Pivot Point
to the Antenna
Antenna Lateral Direction
3
and
Distance from vehicle centerline to
the Antenna
Table 1-10: Guidance and Mapping Distances
Description Measurement
Guidance Width
Mapping Location In-Line Distance
from the Vehicle Pivot Point
to the Mapping Location
Mapping Location Lateral Distance
from the Vehicle Centerline
to the Mapping Location
3 When an Assisted/Automatic Steering Device is available, Antenna Lateral
Distance and Direction will be established under the Assisted/Automatic Steering
“Manage Vehicles” settings.
Table 1-11: Device Wizard Measurements
Description Measurement/Option
Hitch Type
Fixed Mount
Boom and Section Layout
Aft O-Centered
Boom Lateral Offset Direction
Boom Lateral Offset Distance from
the Centerline of the Vehicle
to the
Center of the Boom
Distance to Boom: In-Line Distance
Hitch/Connection Point
to
Product Delivery Point
Table 1-12: Section Information
Description Option
Section Symmetry
Description Width Measurement
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Section 9
Total Application Width
