Matrix 908 Field Computer
5
98-01578-ENUS R2
CONSOLESTART JOB SETUPHELP UT MEASUREMENTS

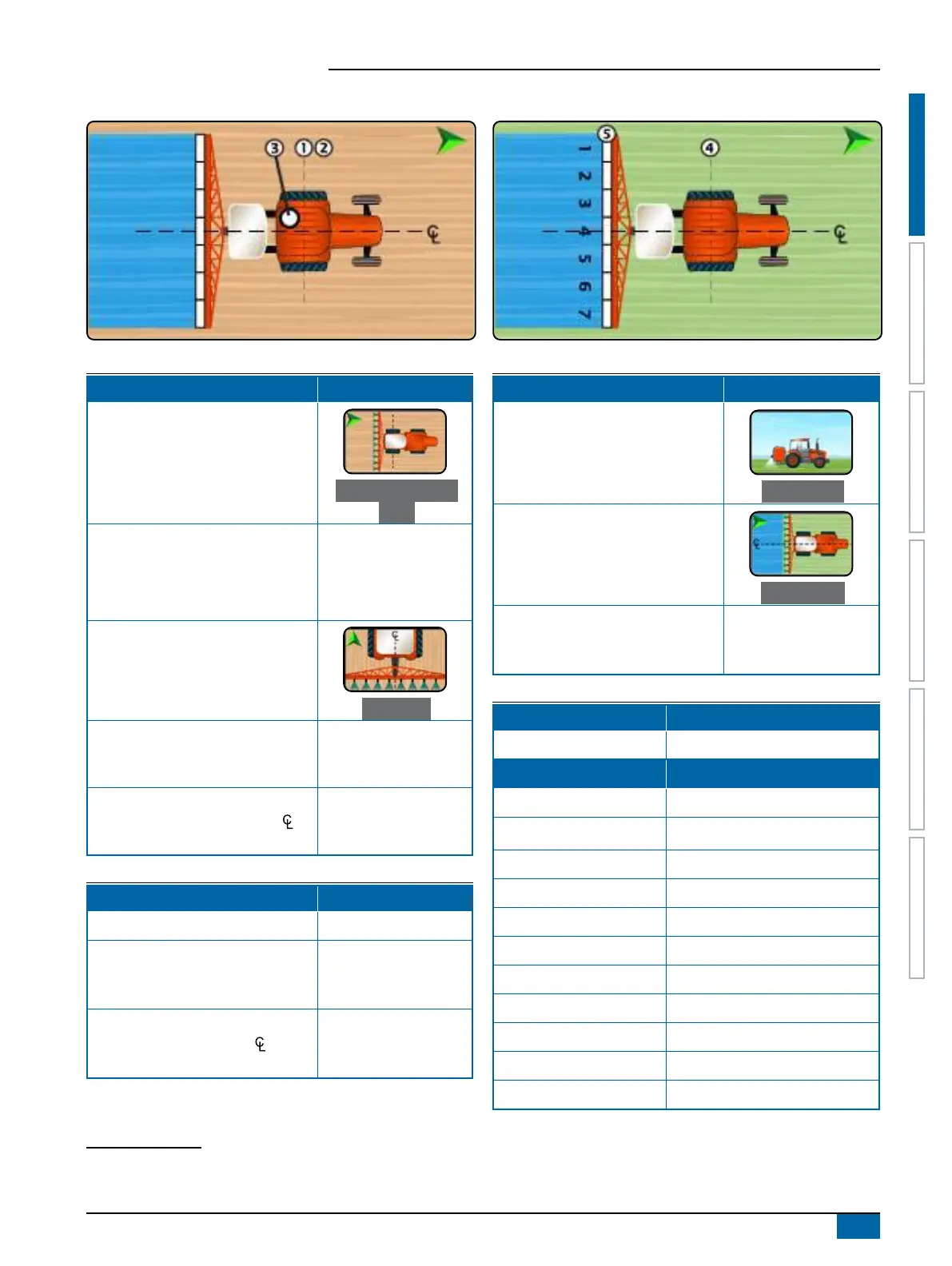

Tractor with Fixed Mount Aft Sprayer
Table 1-13: Vehicle Wizard Measurements
Description Measurement/Option
Vehicle In-Line Direction to Hitch
Point
Aft of Vehicle Pivot
Point
Vehicle In-Line Distance from the
Vehicle Pivot Point
to Hitch
Point
0 in / 0 cm
Vehicle Pivot Point
and Hitch Point
are
the same point
Vehicle Lateral Direction to Hitch
Point
On Center
Antenna In-Line Direction and
Distance from Vehicle Pivot Point
to the Antenna
Antenna Lateral Direction
4
and
Distance from vehicle centerline to
the Antenna
Table 1-14: Guidance and Mapping Distances
Description Measurement
Guidance Width
Mapping Location In-Line Distance
from the Vehicle Pivot Point
to the Mapping Location
Mapping Location Lateral Distance
from the Vehicle Centerline
to the Mapping Location
4 When an Assisted/Automatic Steering Device is available, Antenna Lateral
Distance and Direction will be established under the Assisted/Automatic Steering
“Manage Vehicles” settings.
Table 1-15: Device Wizard Measurements
Description Measurement/Option
Hitch Type
Fixed Mount
Boom and Section Layout
Aft Centered
Distance to Boom: In-Line Distance
Hitch/Connection Point
to
Product Delivery Point
Table 1-16: Section Information
Description Option
Section Symmetry
Description Width Measurement
Section 1
Section 2
Section 3
Section 4
Section 5
Section 6
Section 7
Section 8
Section 9
Section 10
Total Application Width
