Matrix 908 Field Computer
28
www.teejet.com
CONSOLE START JOBSETUP HELPMEASUREMENTS UTSTART JOB

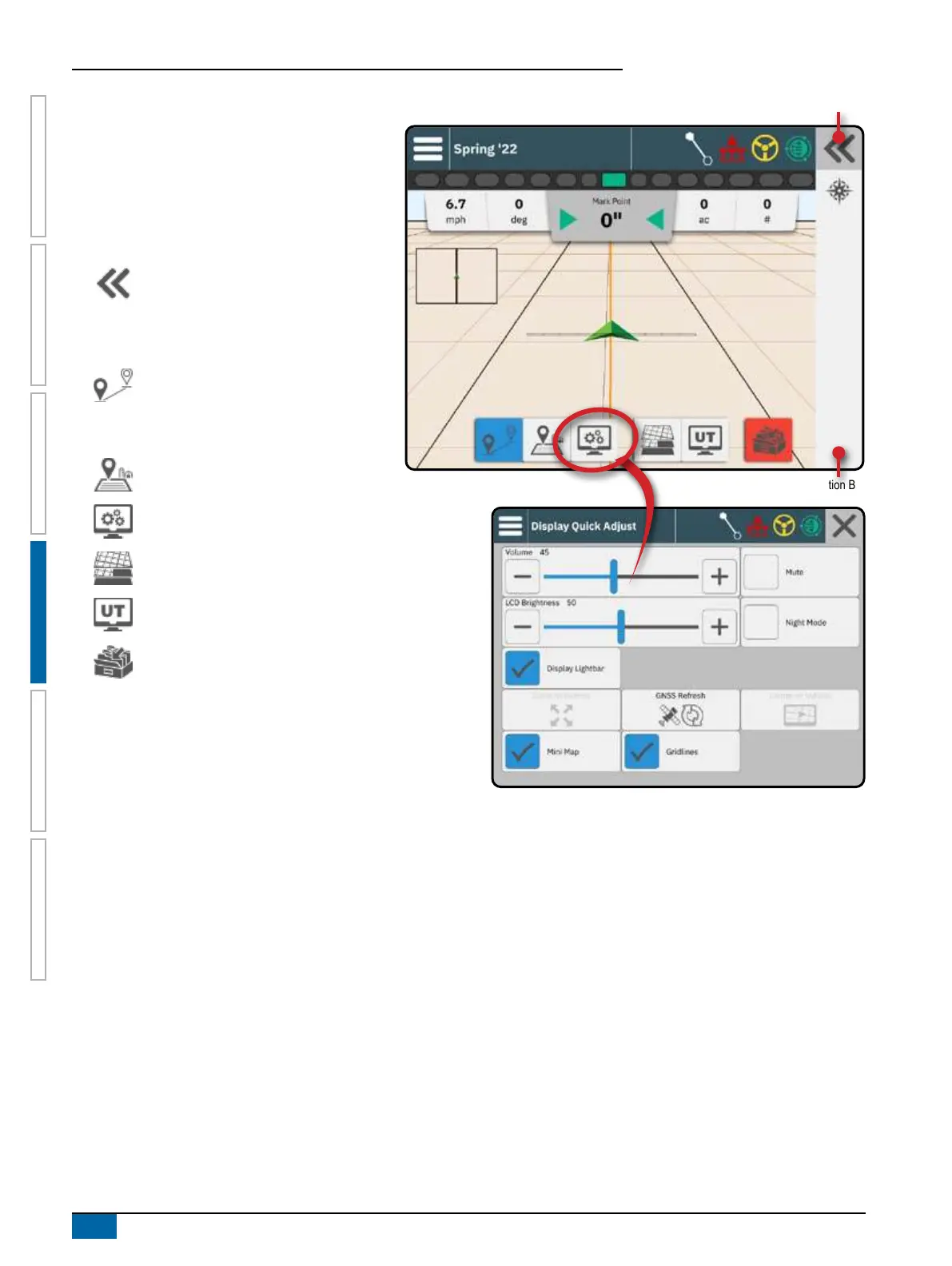

Guidance Screen Features
Information & Status Bar
Current job name and information on GNSS status,
guidance mode, arable land area, and assisted/
automatic steering engagement. See "Information &
Status Bar" on page 36 for details.
Slide-Out Tray Button
Access options for the Feature Bar
selection
Feature Bar
Current selected options will be highlighted.
Guidance Mode – select to access
guidance options including selecting a
guidance mode and creating, deleting and
switching guidelines
Boundary Mode – select to access
boundary options
Display Quick Adjust – select to access frequently
adjusted console and screen options
Mapping Layers – select to turn on or off map layers
Universal Terminal (UT) – select to access the UT
Close Job – select to close the current job and save any
job progress
Action Bar
Options are dynamic based on the selected Feature Bar option and
associated Slide-Out Tray option. See individual features for details.
Display Quick Adjust Options
X Volume – adjusts the volume level of the audio speaker
X Mute – turns off the audio speaker
X LCD Brightness – adjusts the brightness of the console display
X Night Mode – used to darken menu colors to reduce light glare during night usage
X Display Lightbar – used to display or hide the lightbar on the guidance screen
X Zoom to Extents – when in Field View, extends the screen view to the widest area available
X GNSS Refresh – resets the ClearPath lter in the OEMStar receiver in cases where the user has had the receiver running in close
proximity to heavy tree cover and/or buildings
NOTE: Activating the refresh while in a job will cause a momentary interruption in the relay of GNSS data. This will most likely
result in sections already on in automatic BoomPilot mode to go off for a short period of time.
The refresh should not be done during active application.
X Center on Vehicle – when in Field View, centers the vehicle on the map
X Mini Map – used to display or hide the miniature version of the map view currently not on screen. Select to switch between
Vehicle View and Field View maps.
X Gridlines – used to display or hide the gridlines on the map
Slide-out Tray Button
Information & Status Bar
Action BarFeature Bar
