Matrix 908 Field Computer
1
98-01578-ENUS R2
CONSOLESTART JOB SETUPHELP UT MEASUREMENTS
MEASUREMENTS TO HAVE ON HAND BEFORE YOU GET STARTED
The following pages are to assist in dening vehicle measurements in the Vehicle Wizard, device measurements in the Device Wizard,
and mapping location measurements in the Mapping Location options.
Illustrations are for general reference only. See tractor manufacture's documentation for precise measurement locations.
NOTE: Some of the listed settings may not be required for your vehicle or device. The Vehicle Wizard and Device Wizard will guide you
through each required settings based on your selections.
Sprayers
Self-Propelled Front Mount Sprayer ............................................................................................................................. page 2
Self-Propelled Rear Mount Sprayer ............................................................................................................................. page 3
Tractor with Fixed Mount Off-Center Sprayer ............................................................................................................... page 4
Self-Propelled Front Mount Sprayer ............................................................................................................................. page 2
Tractor with Pivot Mount Sprayer ................................................................................................................................. page 6
Spreaders
Self-propelled Spreader ............................................................................................................................................... page 7
Tractor with Fixed Mount Spreader .............................................................................................................................. page 8
Tractor with Pivot Mount Spreader ............................................................................................................................... page 9
NOTE: Some spreader features are limited until an Advanced Spreader unlock code is entered. See "No.3 Enter Available Unlocks" on
page 15 for unlock code instructions.
Measurement Best Practices

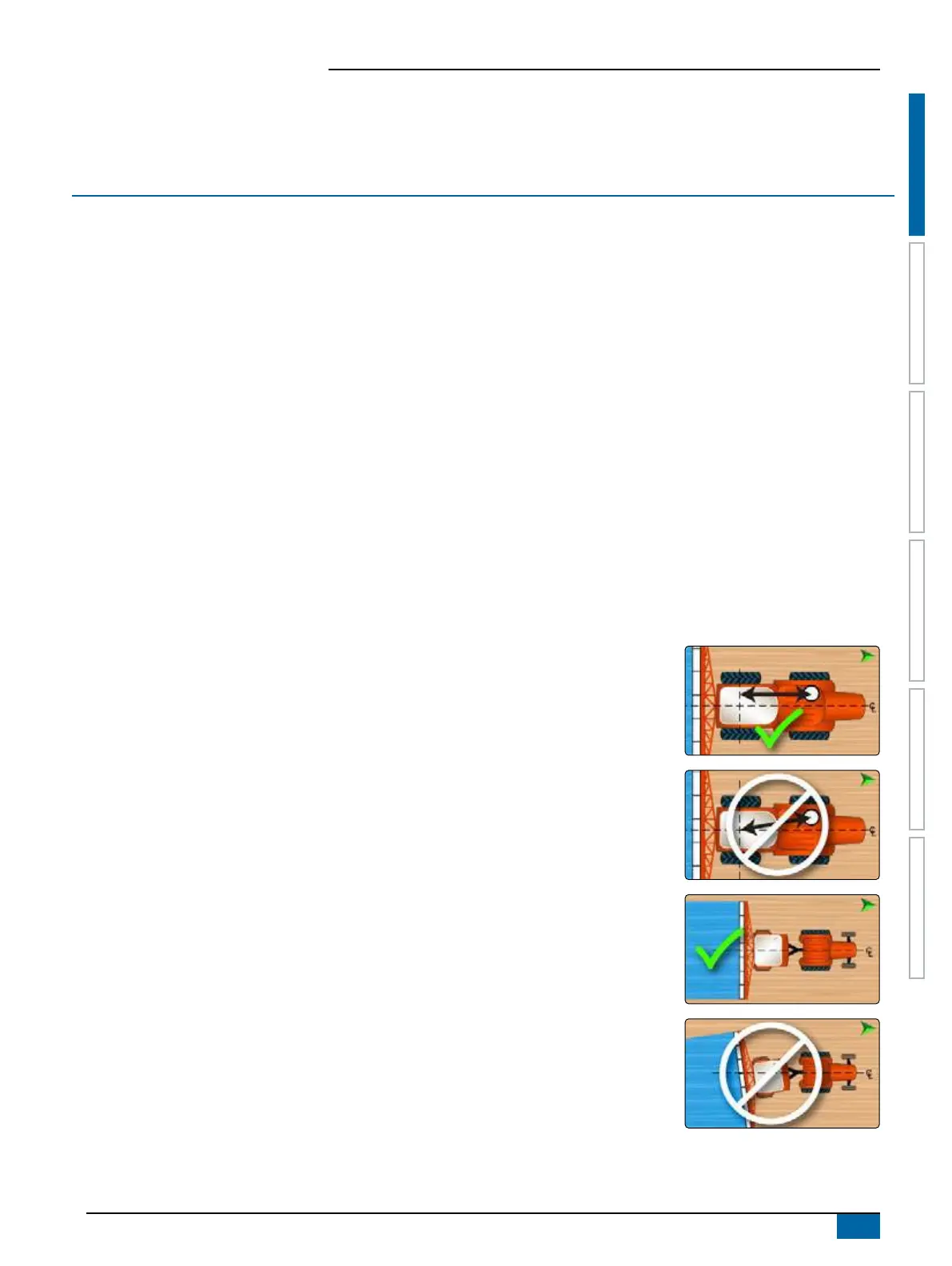

• Measure as if vehicle and device are in a straight-line and in the operating position.
• Device dimensions may shift when in operation. Measure implement when engaged with the
ground to achieve the best accuracy.
• Hold tape measure plumb or level in vertical or horizontal directions.
• Measure to the center of the antenna.
• Sections are numbered from left to right while facing in the machine's forward direction.
• Lateral left/right direction is determined while facing in the machine's forward direction.
Terminology Notes
• Vehicle Pivot Point
– the center of the vehicle's non-steering axle
– Example: the center of the rear axle for a front steering vehicle
• Hitch Point / Hitch/Connection Point
– the point where the implement connects to the
machine or the pivot point between implement and machine depending on Hitch Type
– Not all vehicles have hitch points. On these vehicles, the Hitch Point and the Vehicle Pivot
Point will be the same point and the value should be entered as 0 in / 0 cm.
• Guidance Width – the width between guidelines
– May be different than the Application Width or Working Width (total width of all sections).
