Matrix 908 Field Computer
11
98-01578-ENUS R2
START JOB SETUPHELP MEASUREMENTSUT CONSOLE

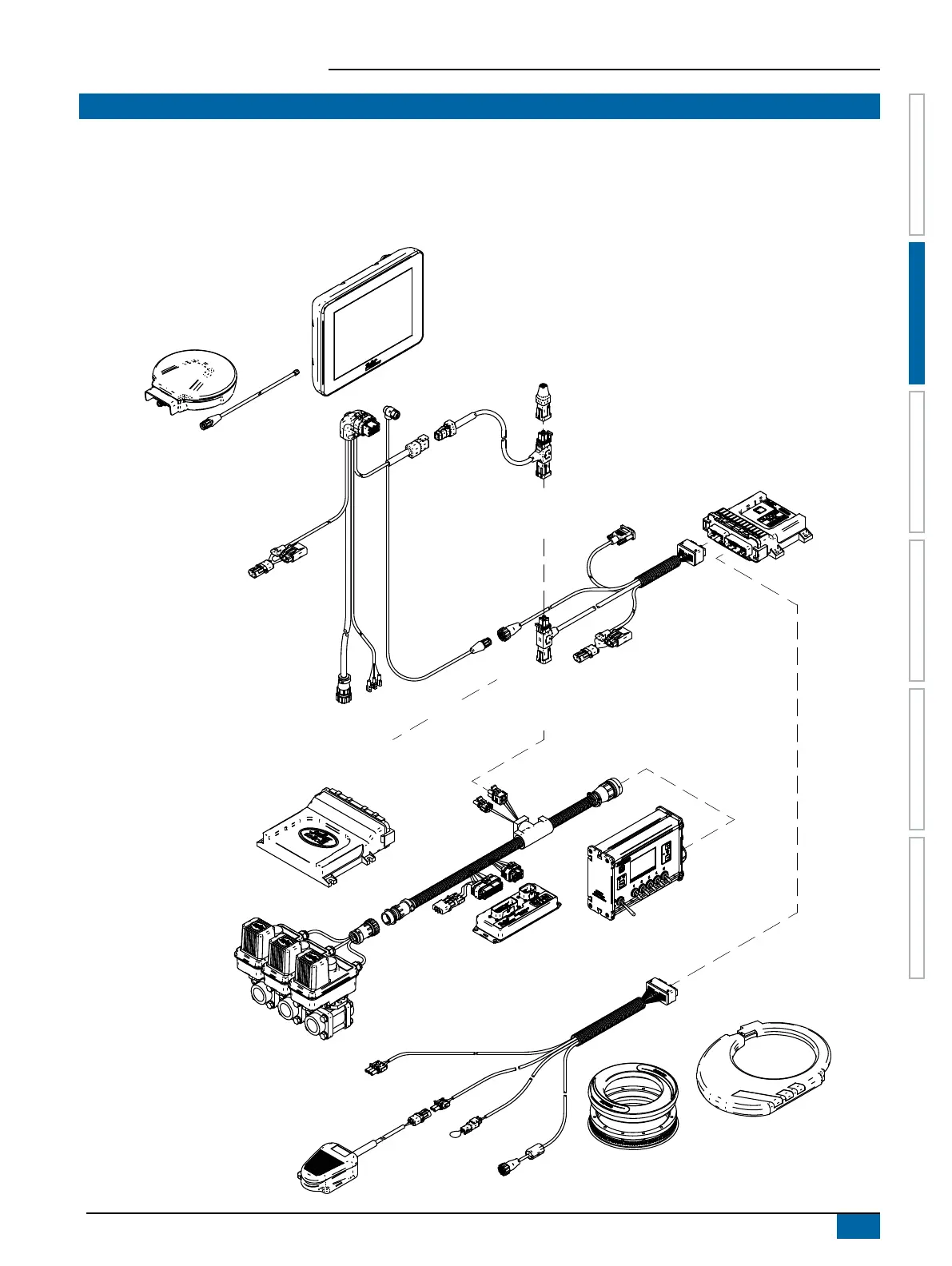

SYSTEM DIAGRAM
The following is to be used for general reference. Specic congurations will vary depending on available devices. Contact TeeJet
Customer Service or your local dealer for information on your specic conguration.
NOTE: Connectivity to different devices may be released with future software releases. Always refer to software release notes for
software/system connectivity at www.teejet.com/support/software.aspx.
Matrix 908 Console
RXA-52 Antenna
CAN "T" to 6 Socket
Deutsch DTM
Terminator
OR
Ethernet Interface
UniPilot Pro
to Assisted/Auto Steering
Steering Control Module
(SCM Pro)
to BoomPilot Section Control
Section Driver Module (SDM)
Switch Function Module (SFM)
Matrix 908 Harness
to power
Battery Cable
Power Cable
to ISOBUS ECU
IC18 Sprayer, IC35 Sprayer, IC38 Spreader,
IC45 Sprayer, DynaJet IC7140
To Next Page
