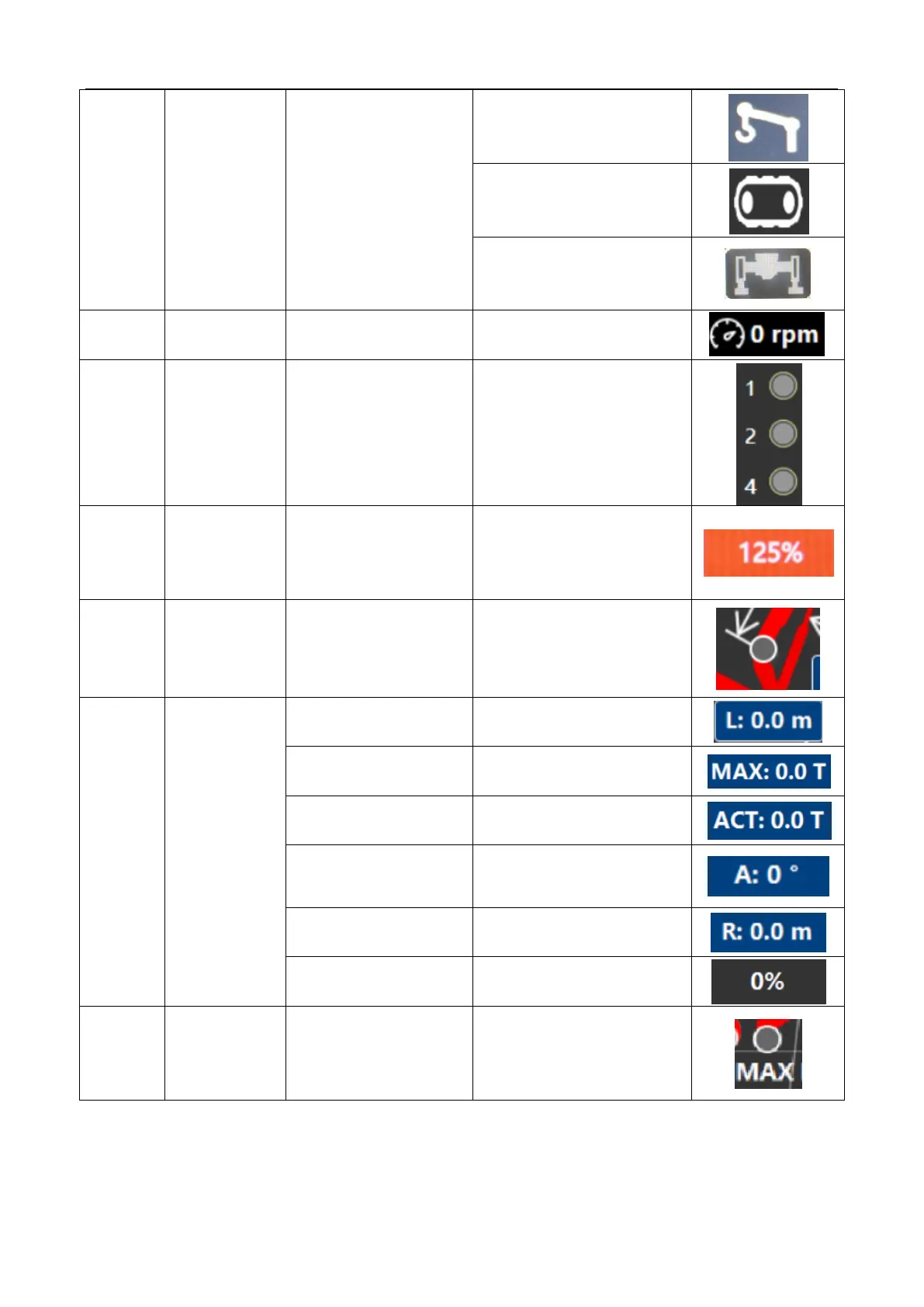

Working
condition
mode
Showing present
working mode
Crane mode
Traveling mode
Outrigger mode
13
Engine
Engine speed
--
14
Ratio
indication
Showing present ratio
working condition
--
15
Hoisting
percentage
Showing present
hoisting ratio in real
time
0-90% is green;
90-100% is yellow;
More than 100% is red.
16
3 circles
Three winding alam and
automatic stop device
Indicator icon turns red and
the buzzer sounds
17
Main boom
Boom length
Boom real-time length
Rated load
Rated load under this range
Actual load
Present lifting weight
Angle
The angle between boom
and horizontal plane
Range
Working radius
Hoisting percentage
Showing hoisting percentage
18
Outrigger
position
Outrigger maximum
position
Light is on when the 4
outriggers totally stretch to
the maximum position.
