SPT-299CZ-02
98
Outrigger
non-maximum position
Light is on when the 4
outriggers totally don’t
stretch to the maximum
position.

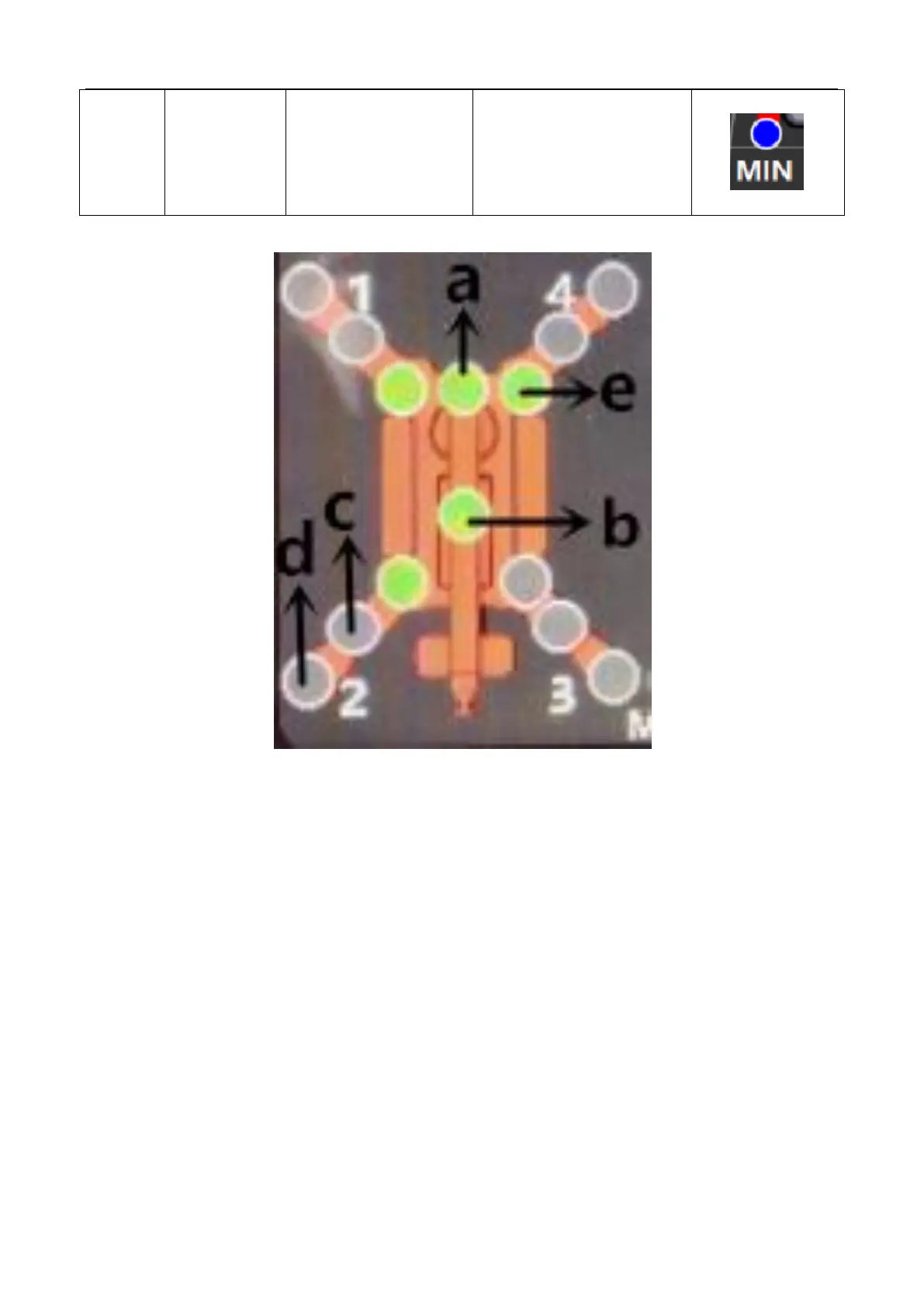

19. Body indicator
a) Rotary centering indicator light b) Boom return indicator light
c) Indicator light for fixing the pin shaft of the support outrigger d) Indicator light for grounding the support
outrigger
e) outrigger standard position indicator light
